Search › Model › L32HV
L32HV

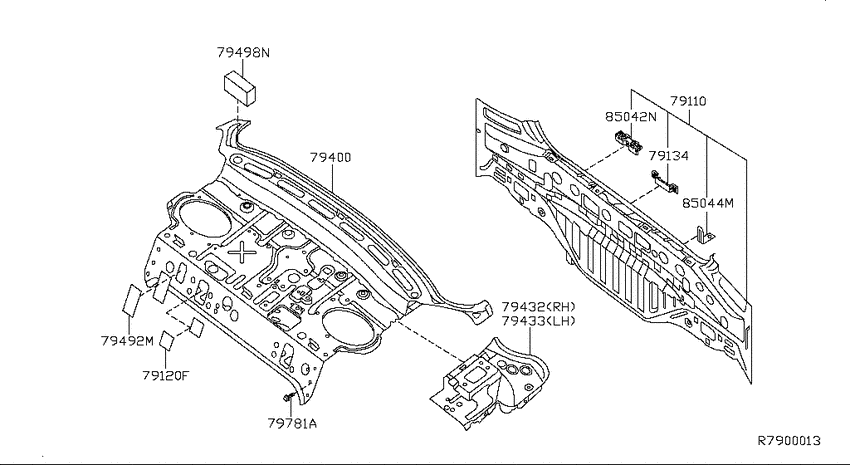

Rear panel & fitting (2006-12-01 ~ ; 4S) 11
| # | OEM | Part name |
|---|---|---|
| 79110 | 79110-JA030 | Panel-Rear, Upper |
| 79120 | 64890-7Y000 | Cover-Hole |
| 79120 | 64890-JA000 | Plug-Rubber |
| 79134 | 79130-JA030 | Bracket-Rear Panel |
| 79134 | 79130-JA031 | Bracket-Rear Panel |
| 79432 | 79432-JA030 | Shelf-Parcel, Side Rh |
| 79433 | 79433-JA030 | Shelf-Parcel, Side Lh |
| 79492 | 79491-JA000 | Insulator-Parcel Shelf |
| 79498 | 79498-7Y000 | Insulator-Parcel Shelf Side |
| 85042 | 85042-JA030 | Bracket-Rear Bumper Fascia, Center |
| 85044 | 85048-JA030 | Bracket-Rear Bumper Fascia |
| OEM | Part name | Category |
|---|---|---|
| 64890-7Y000 | Cover-Hole | Rear panel & fitting (2006-12-01 ~ ; 4S) |
| 64890-JA000 | Plug-Rubber | Rear panel & fitting (2006-12-01 ~ ; 4S) |
| 79110-JA030 | Panel-Rear, Upper | Rear panel & fitting (2006-12-01 ~ ; 4S) |
| 79130-JA030 | Bracket-Rear Panel | Rear panel & fitting (2006-12-01 ~ ; 4S) |
| 79130-JA031 | Bracket-Rear Panel | Rear panel & fitting (2006-12-01 ~ ; 4S) |
| 79432-JA030 | Shelf-Parcel, Side Rh | Rear panel & fitting (2006-12-01 ~ ; 4S) |
| 79433-JA030 | Shelf-Parcel, Side Lh | Rear panel & fitting (2006-12-01 ~ ; 4S) |
| 79491-JA000 | Insulator-Parcel Shelf | Rear panel & fitting (2006-12-01 ~ ; 4S) |
| 79498-7Y000 | Insulator-Parcel Shelf Side | Rear panel & fitting (2006-12-01 ~ ; 4S) |
| 85042-JA030 | Bracket-Rear Bumper Fascia, Center | Rear panel & fitting (2006-12-01 ~ ; 4S) |
| 85048-JA030 | Bracket-Rear Bumper Fascia | Rear panel & fitting (2006-12-01 ~ ; 4S) |
