Search › Model › L32HV
L32HV

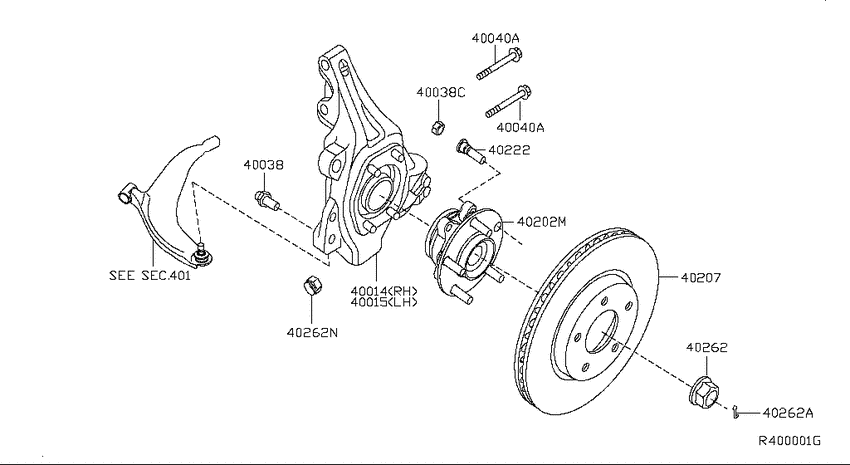

Front axle (2006-12-01 ~ ; QR25DE) 7
| # | OEM | Part name |
|---|---|---|
| 40014 | 40014-JA80A | Knuckle Spindle-Rh |
| 40015 | 40015-JA80A | Knuckle Spindle-Lh |
| 40038 | 40038-JA100 | Bolt-Stopper, Steering |
| 40038 | 40038-JA20A | Bolt-Stopper, Steering |
| 40040 | 40178-JA000 | Bolt-Fix, Link |
| 40202 | 40202-JA000 | Hub Assy-Road Wheel, Front |
| 40207 | 40206-JA00A | Rotor-Disc Brake, Front |
| OEM | Part name | Category |
|---|---|---|
| 40014-JA80A | Knuckle Spindle-Rh | Front axle (2006-12-01 ~ ; QR25DE) |
| 40015-JA80A | Knuckle Spindle-Lh | Front axle (2006-12-01 ~ ; QR25DE) |
| 40038-JA100 | Bolt-Stopper, Steering | Front axle (2006-12-01 ~ ; QR25DE) |
| 40038-JA20A | Bolt-Stopper, Steering | Front axle (2006-12-01 ~ ; QR25DE) |
| 40178-JA000 | Bolt-Fix, Link | Front axle (2006-12-01 ~ ; QR25DE) |
| 40202-JA000 | Hub Assy-Road Wheel, Front | Front axle (2006-12-01 ~ ; QR25DE) |
| 40206-JA00A | Rotor-Disc Brake, Front | Front axle (2006-12-01 ~ ; QR25DE) |
