L32HV

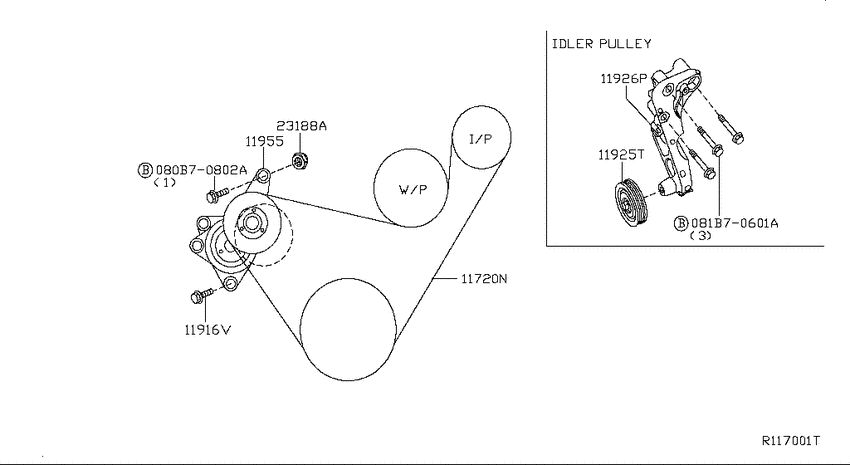

Fan,compressor & power steering belt (2006-12-01 ~ ; BELTS; QR25DE) 7
| # | OEM | Part name |
|---|---|---|
| 11720 | 11720-JA80A | Belt-Fan & Alternator |
| 11916 | 11916-JA80A | Bolt-Compressor Bracket |
| 11916 | 11916-JA80B | Bolt-Compressor Bracket |
| 11925 | 11925-JA80A | Pulley Assy-Idler |
| 11926 | 11926-JA80A | Bracket-Idler Pulley |
| 11955 | 11955-JA80A | Tensioner Assy-Auto |
| 23188 | 23188-18V00 | Nut-Stopper, Alternator |
| OEM | Part name | Category |
|---|---|---|
| 11720-JA80A | Belt-Fan & Alternator | Fan,compressor & power steering belt (2006-12-01 ~ ; BELTS; QR25DE) |
| 11916-JA80A | Bolt-Compressor Bracket | Fan,compressor & power steering belt (2006-12-01 ~ ; BELTS; QR25DE) |
| 11916-JA80B | Bolt-Compressor Bracket | Fan,compressor & power steering belt (2006-12-01 ~ ; BELTS; QR25DE) |
| 11925-JA80A | Pulley Assy-Idler | Fan,compressor & power steering belt (2006-12-01 ~ ; BELTS; QR25DE) |
| 11926-JA80A | Bracket-Idler Pulley | Fan,compressor & power steering belt (2006-12-01 ~ ; BELTS; QR25DE) |
| 11955-JA80A | Tensioner Assy-Auto | Fan,compressor & power steering belt (2006-12-01 ~ ; BELTS; QR25DE) |
| 23188-18V00 | Nut-Stopper, Alternator | Fan,compressor & power steering belt (2006-12-01 ~ ; BELTS; QR25DE) |
