Search › Model › L32
L32

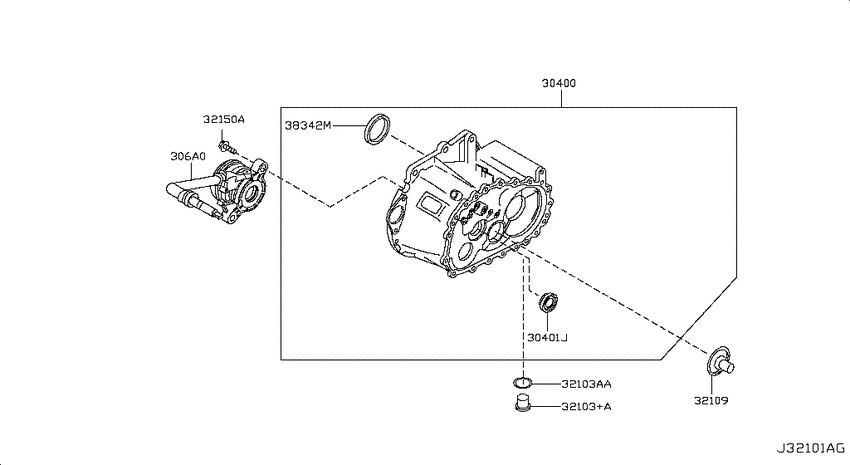

Transmission case & clutch release (2009-10-01 ~ ; CLUTCH HOUSING; MT) 6
| # | OEM | Part name |
|---|---|---|
| 30400 | 30400-JA61A | Housing Assy-Clutch |
| 32103 | 32103-4N21A | Plug-Drain |
| 32103 | 32103-1MG0B | Plug-Filler |
| 32109 | 32109-8H500 | Channel-Oil, Main Shaft Front |
| 32109 | 32109-8H510 | Channel-Oil |
| 32150 | 31377-JD00A | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 30400-JA61A | Housing Assy-Clutch | Transmission case & clutch release (2009-10-01 ~ ; CLUTCH HOUSING; MT) |
| 31377-JD00A | Bolt | Transmission case & clutch release (2009-10-01 ~ ; CLUTCH HOUSING; MT) |
| 32103-1MG0B | Plug-Filler | Transmission case & clutch release (2009-10-01 ~ ; CLUTCH HOUSING; MT) |
| 32103-4N21A | Plug-Drain | Transmission case & clutch release (2009-10-01 ~ ; CLUTCH HOUSING; MT) |
| 32109-8H500 | Channel-Oil, Main Shaft Front | Transmission case & clutch release (2009-10-01 ~ ; CLUTCH HOUSING; MT) |
| 32109-8H510 | Channel-Oil | Transmission case & clutch release (2009-10-01 ~ ; CLUTCH HOUSING; MT) |
