Search › Model › L32
L32

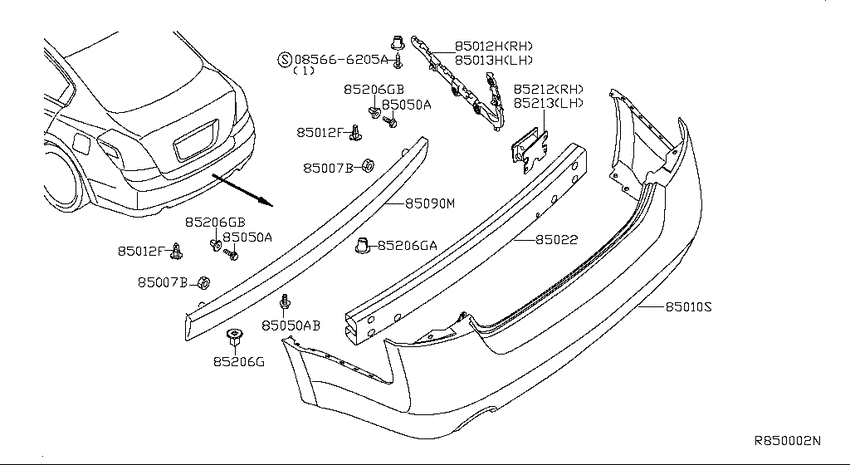

Rear bumper (2009-10-01 ~ ; 4S) 7
| # | OEM | Part name |
|---|---|---|
| 85010 | 85022-JA040 | Fascia Kit-Rear Bumper |
| 85012 | 85220-JA01A | Bracket-Rear Bumper Side, Rh |
| 85013 | 85221-JA01A | Bracket-Rear Bumper Side, Lh |
| 85022 | 85032-JA00A | Reinforce-Inner, Rear Bumper Center |
| 85090 | 85090-JA00A | Absorber Assy-Energy, Rear Bumper |
| 85212 | 85210-JA00A | Stay-Rear Bumper, Rh |
| 85213 | 85211-JA00A | Stay-Rear Bumper, Lh |
| OEM | Part name | Category |
|---|---|---|
| 85022-JA040 | Fascia Kit-Rear Bumper | Rear bumper (2009-10-01 ~ ; 4S) |
| 85032-JA00A | Reinforce-Inner, Rear Bumper Center | Rear bumper (2009-10-01 ~ ; 4S) |
| 85090-JA00A | Absorber Assy-Energy, Rear Bumper | Rear bumper (2009-10-01 ~ ; 4S) |
| 85210-JA00A | Stay-Rear Bumper, Rh | Rear bumper (2009-10-01 ~ ; 4S) |
| 85211-JA00A | Stay-Rear Bumper, Lh | Rear bumper (2009-10-01 ~ ; 4S) |
| 85220-JA01A | Bracket-Rear Bumper Side, Rh | Rear bumper (2009-10-01 ~ ; 4S) |
| 85221-JA01A | Bracket-Rear Bumper Side, Lh | Rear bumper (2009-10-01 ~ ; 4S) |
