L32

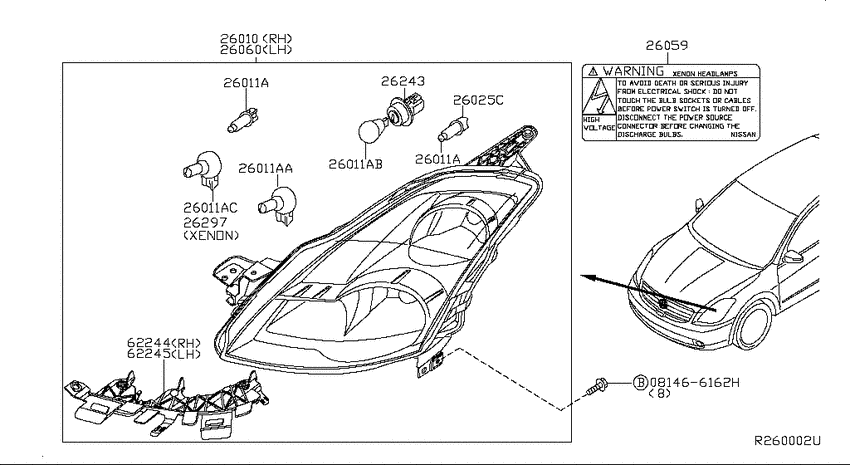

Head lamp (2009-10-01 ~ ; 4S) 13
| # | OEM | Part name |
|---|---|---|
| 26010 | 26010-ZX20A | Headlamp Assy-Rh |
| 26010 | 26010-ZX00A | Headlamp Assy-Rh |
| 26011 | 26261-9B90D | Bulb |
| 26011 | 26296-9B91B | Bulb |
| 26011 | 26717-9B904 | Bulb |
| 26011 | 26296-89946 | Bulb |
| 26059 | 26059-3Z700 | Label-Headlamp |
| 26060 | 26060-ZX20A | Headlamp Assy-Lh |
| 26060 | 26060-ZX00A | Headlamp Assy-Lh |
| 26243 | 26243-9B91B | Socket Assy-Headlamp |
| 26297 | 26297-9F510 | Bulb-Xenon |
| 62244 | 62244-JA00A | Retainer-Front Bumper Side, Rh |
| 62245 | 62245-JA00A | Retainer-Front Bumper Side, Lh |
| OEM | Part name | Category |
|---|---|---|
| 26010-ZX00A | Headlamp Assy-Rh | Head lamp (2009-10-01 ~ ; 4S) |
| 26010-ZX20A | Headlamp Assy-Rh | Head lamp (2009-10-01 ~ ; 4S) |
| 26059-3Z700 | Label-Headlamp | Head lamp (2009-10-01 ~ ; 4S) |
| 26060-ZX00A | Headlamp Assy-Lh | Head lamp (2009-10-01 ~ ; 4S) |
| 26060-ZX20A | Headlamp Assy-Lh | Head lamp (2009-10-01 ~ ; 4S) |
| 26243-9B91B | Socket Assy-Headlamp | Head lamp (2009-10-01 ~ ; 4S) |
| 26261-9B90D | Bulb | Head lamp (2009-10-01 ~ ; 4S) |
| 26296-89946 | Bulb | Head lamp (2009-10-01 ~ ; 4S) |
| 26296-9B91B | Bulb | Head lamp (2009-10-01 ~ ; 4S) |
| 26297-9F510 | Bulb-Xenon | Head lamp (2009-10-01 ~ ; 4S) |
| 26717-9B904 | Bulb | Head lamp (2009-10-01 ~ ; 4S) |
| 62244-JA00A | Retainer-Front Bumper Side, Rh | Head lamp (2009-10-01 ~ ; 4S) |
| 62245-JA00A | Retainer-Front Bumper Side, Lh | Head lamp (2009-10-01 ~ ; 4S) |
