Search › Model › L32
L32

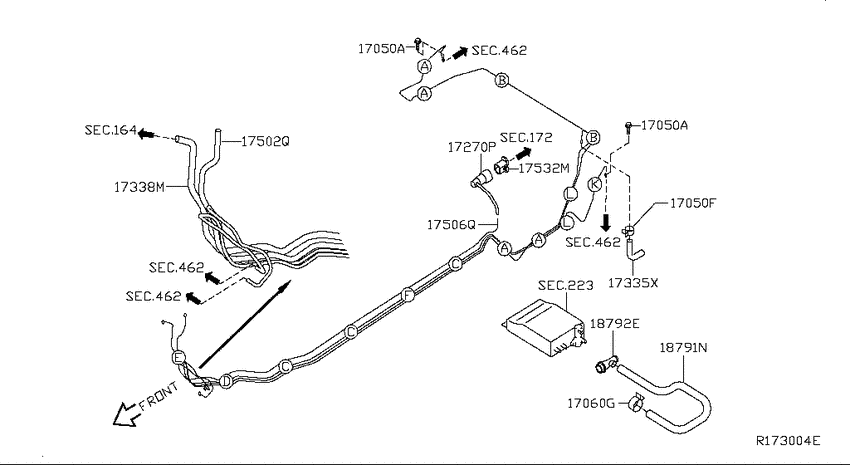

Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) 10
| # | OEM | Part name |
|---|---|---|
| 17050 | 17571-JA00A | Clamp |
| 17050 | 17571-JA01A | Clamp |
| 17270 | 17270-JA00A | Tube Assy-Fuel Tank Outlet |
| 17335 | 17335-JA00A | Hose-Evaporation |
| 17338 | 17338-JA00A | Tube-Breather |
| 17502 | 17502-JA00A | Tube Assy-Fuel Feed |
| 17506 | 17506-JA00A | Tube-Fuel Feed |
| 17532 | 17532-JA00A | Retainer-Quick Connector |
| 18791 | 18791-ZN50A | Hose-Drain, Canister |
| 18792 | 18792-ZH30A | Connector-Emission Control Hose |
| OEM | Part name | Category |
|---|---|---|
| 17270-JA00A | Tube Assy-Fuel Tank Outlet | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) |
| 17335-JA00A | Hose-Evaporation | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) |
| 17338-JA00A | Tube-Breather | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) |
| 17502-JA00A | Tube Assy-Fuel Feed | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) |
| 17506-JA00A | Tube-Fuel Feed | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) |
| 17532-JA00A | Retainer-Quick Connector | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) |
| 17571-JA00A | Clamp | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) |
| 17571-JA01A | Clamp | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) |
| 18791-ZN50A | Hose-Drain, Canister | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) |
| 18792-ZH30A | Connector-Emission Control Hose | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ35DE) |
