L32

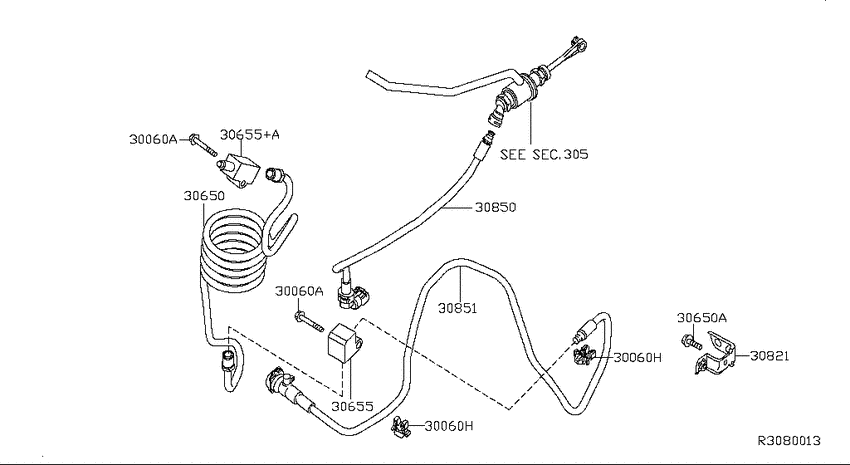

Clutch piping (2009-10-01 ~ ; QR25DE +VQ35DE) 8
| # | OEM | Part name |
|---|---|---|
| 30060 | 01125-N6051 | Bolt |
| 30060 | 17574-00QAA | Clip |
| 30650 | 30852-JA00A | Tube Assy-Clutch |
| 30655 | 30858-JA000 | Connector-Clutch Tube |
| 30655 | 46048-40U10 | Connector-Clutch Tube |
| 30821 | 30821-JA00A | Bracket-Clutch Tube |
| 30850 | 30850-JA000 | Tube Assy-Clutch |
| 30851 | 30851-JA100 | Tube Assy-Clutch |
| OEM | Part name | Category |
|---|---|---|
| 01125-N6051 | Bolt | Clutch piping (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 17574-00QAA | Clip | Clutch piping (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 30821-JA00A | Bracket-Clutch Tube | Clutch piping (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 30850-JA000 | Tube Assy-Clutch | Clutch piping (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 30851-JA100 | Tube Assy-Clutch | Clutch piping (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 30852-JA00A | Tube Assy-Clutch | Clutch piping (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 30858-JA000 | Connector-Clutch Tube | Clutch piping (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 46048-40U10 | Connector-Clutch Tube | Clutch piping (2009-10-01 ~ ; QR25DE +VQ35DE) |
