L32

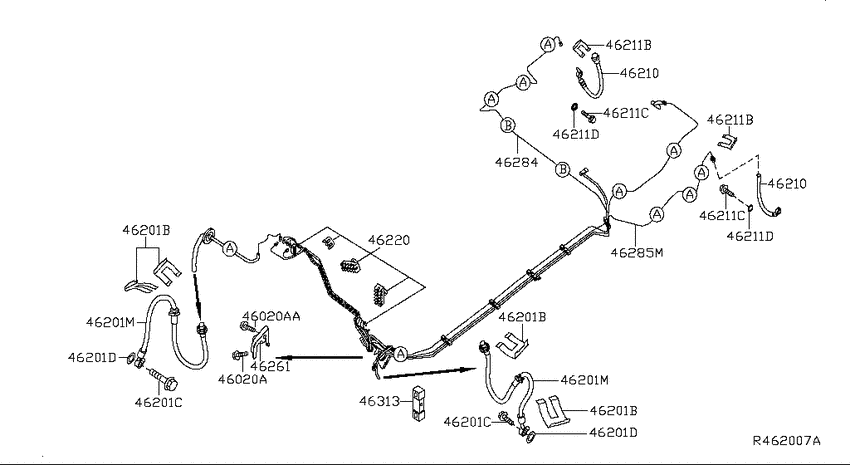

Brake piping & control (2009-10-01 ~ ; PIPING-ABS; 4S) 9
| # | OEM | Part name |
|---|---|---|
| 46020 | 01125-N8021 | Bolt |
| 46201 | 46210-JA00A | Hose Assy-Brake, Front |
| 46201 | 46210-JA01A | Hose Assy-Brake, Front |
| 46210 | 46210-JA02A | Hose Assy-Brake, Rear |
| 46220 | 46220-JA200 | Tube Compl-Brake |
| 46261 | 46261-JA000 | Bracket-Brake Tube |
| 46284 | 46284-JA01A | Tube Assy-Brake, Rear |
| 46285 | 46285-JA01A | Tube Assy-Brake, Rear |
| 46313 | 46313-40U00 | Connector-Brake Tube |
| OEM | Part name | Category |
|---|---|---|
| 01125-N8021 | Bolt | Brake piping & control (2009-10-01 ~ ; PIPING-ABS; 4S) |
| 46210-JA00A | Hose Assy-Brake, Front | Brake piping & control (2009-10-01 ~ ; PIPING-ABS; 4S) |
| 46210-JA01A | Hose Assy-Brake, Front | Brake piping & control (2009-10-01 ~ ; PIPING-ABS; 4S) |
| 46210-JA02A | Hose Assy-Brake, Rear | Brake piping & control (2009-10-01 ~ ; PIPING-ABS; 4S) |
| 46220-JA200 | Tube Compl-Brake | Brake piping & control (2009-10-01 ~ ; PIPING-ABS; 4S) |
| 46261-JA000 | Bracket-Brake Tube | Brake piping & control (2009-10-01 ~ ; PIPING-ABS; 4S) |
| 46284-JA01A | Tube Assy-Brake, Rear | Brake piping & control (2009-10-01 ~ ; PIPING-ABS; 4S) |
| 46285-JA01A | Tube Assy-Brake, Rear | Brake piping & control (2009-10-01 ~ ; PIPING-ABS; 4S) |
| 46313-40U00 | Connector-Brake Tube | Brake piping & control (2009-10-01 ~ ; PIPING-ABS; 4S) |
