Search › Model › L32
L32

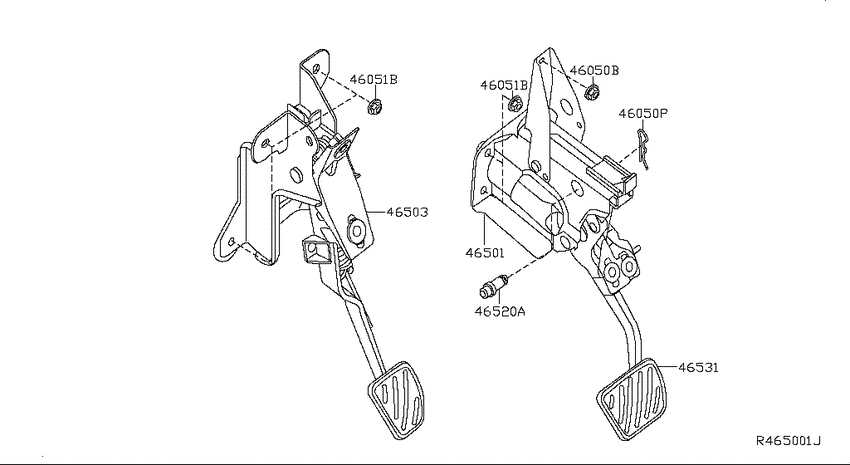

Brake & clutch pedal (2009-10-01 ~ ; QR25DE +VQ35DE) 8
| # | OEM | Part name |
|---|---|---|
| 46050 | 01225-N003U | Washer-Plain |
| 46050 | 01533-00013 | RETAINER-SNAP |
| 46501 | 46501-JA015 | Pedal Assy-Brake W/bracket |
| 46501 | 46501-JA005 | Pedal Assy-Brake W/bracket |
| 46503 | 46503-JA10B | Pedal Assy-Clutch W/bracket |
| 46531 | 46531-EG010 | Pad-Pedal |
| 46531 | 46531-CK000 | Pad-Pedal |
| 46531 | 46531-ET000 | Pad-Pedal |
| OEM | Part name | Category |
|---|---|---|
| 01225-N003U | Washer-Plain | Brake & clutch pedal (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 01533-00013 | RETAINER-SNAP | Brake & clutch pedal (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 46501-JA005 | Pedal Assy-Brake W/bracket | Brake & clutch pedal (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 46501-JA015 | Pedal Assy-Brake W/bracket | Brake & clutch pedal (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 46503-JA10B | Pedal Assy-Clutch W/bracket | Brake & clutch pedal (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 46531-CK000 | Pad-Pedal | Brake & clutch pedal (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 46531-EG010 | Pad-Pedal | Brake & clutch pedal (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 46531-ET000 | Pad-Pedal | Brake & clutch pedal (2009-10-01 ~ ; QR25DE +VQ35DE) |
