L32

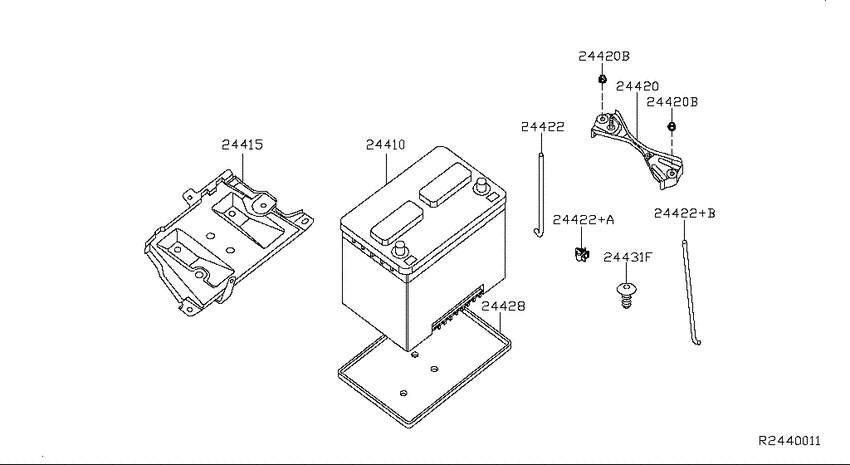

Battery & battery mounting (2009-10-01 ~ ; QR25DE +VQ35DE) 7
| # | OEM | Part name |
|---|---|---|
| 24410 | 24410-JA10A | Battery |
| 24415 | 64860-JA000 | Bracket-Battery |
| 24420 | 24420-JA000 | Frame-Battery Fix |
| 24422 | 24425-4P100 | Rod-Battery Fix |
| 24422 | 24425-8991A | Rod-Battery Fix |
| 24428 | 24428-3Z000 | Tray-Battery |
| 24431 | 01553-0151U | Fastener |
| OEM | Part name | Category |
|---|---|---|
| 01553-0151U | Fastener | Battery & battery mounting (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 24410-JA10A | Battery | Battery & battery mounting (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 24420-JA000 | Frame-Battery Fix | Battery & battery mounting (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 24425-4P100 | Rod-Battery Fix | Battery & battery mounting (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 24425-8991A | Rod-Battery Fix | Battery & battery mounting (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 24428-3Z000 | Tray-Battery | Battery & battery mounting (2009-10-01 ~ ; QR25DE +VQ35DE) |
| 64860-JA000 | Bracket-Battery | Battery & battery mounting (2009-10-01 ~ ; QR25DE +VQ35DE) |
