Search › Model › L31
L31

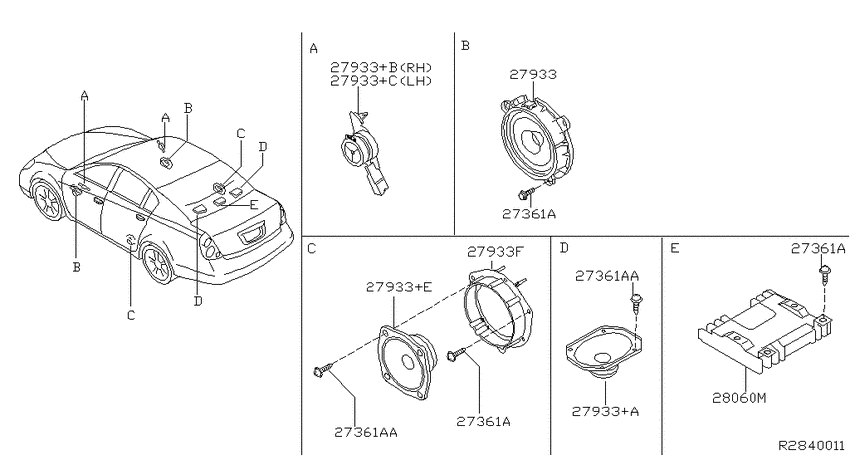

Speaker (2004-01-01 ~ ; 4S) 14
| # | OEM | Part name |
|---|---|---|
| 27361 | 01466-00022 | Bolt |
| 27361 | 01456-00631 | SCREW |
| 27933 | 28156-7Y300 | Speaker Unit |
| 27933 | 28156-8J000 | Speaker Unit |
| 27933 | 28157-8J100 | Speaker Unit |
| 27933 | 28157-8J210 | Speaker Unit |
| 27933 | 28148-8J000 | Speaker Unit |
| 27933 | 28148-8J200 | Speaker Unit |
| 27933 | 28149-8J000 | Speaker Unit |
| 27933 | 28149-8J200 | Speaker Unit |
| 27933 | 28155-8J200 | Speaker Unit |
| 27933 | 28163-8J200 | Bracket-Speaker |
| 28060 | 28060-3Z700 | Amp Assy-Speaker |
| 28060 | 28060-ZB00A | Amp Assy-Speaker |
| OEM | Part name | Category |
|---|---|---|
| 01456-00631 | SCREW | Speaker (2004-01-01 ~ ; 4S) |
| 01466-00022 | Bolt | Speaker (2004-01-01 ~ ; 4S) |
| 28060-3Z700 | Amp Assy-Speaker | Speaker (2004-01-01 ~ ; 4S) |
| 28060-ZB00A | Amp Assy-Speaker | Speaker (2004-01-01 ~ ; 4S) |
| 28148-8J000 | Speaker Unit | Speaker (2004-01-01 ~ ; 4S) |
| 28148-8J200 | Speaker Unit | Speaker (2004-01-01 ~ ; 4S) |
| 28149-8J000 | Speaker Unit | Speaker (2004-01-01 ~ ; 4S) |
| 28149-8J200 | Speaker Unit | Speaker (2004-01-01 ~ ; 4S) |
| 28155-8J200 | Speaker Unit | Speaker (2004-01-01 ~ ; 4S) |
| 28156-7Y300 | Speaker Unit | Speaker (2004-01-01 ~ ; 4S) |
| 28156-8J000 | Speaker Unit | Speaker (2004-01-01 ~ ; 4S) |
| 28157-8J100 | Speaker Unit | Speaker (2004-01-01 ~ ; 4S) |
| 28157-8J210 | Speaker Unit | Speaker (2004-01-01 ~ ; 4S) |
| 28163-8J200 | Bracket-Speaker | Speaker (2004-01-01 ~ ; 4S) |
