Search › Model › L069P
L069P

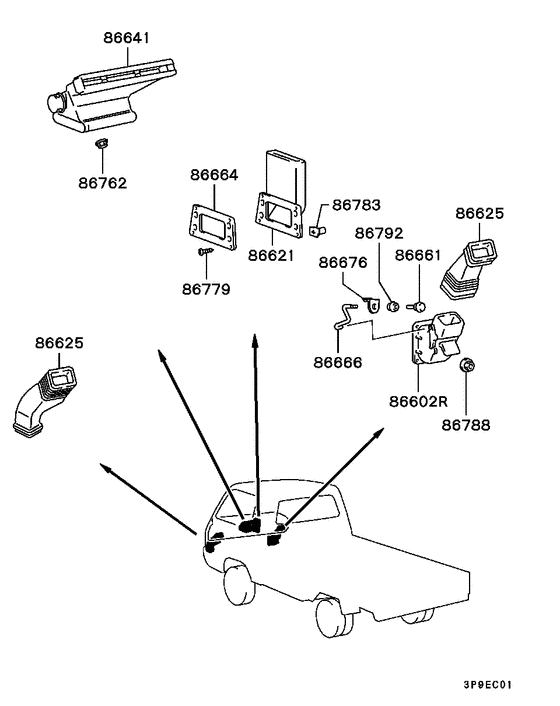

Ventilation & duct 14
| # | OEM | Part name |
|---|---|---|
| 86602 | MB123535 | BOX, SIDE VENTILATOR, RH |
| 86621 | MB167957 | DUCT, RR VENTILATOR |
| 86625 | MB123544 | DUCT, FR SIDE VENTILATOR |
| 86625 | MB272588 | DUCT, FR SIDE VENTILATOR - Lh |
| 86641 | MB272582 | DUCT, VENTILATOR, CTR |
| 86661 | MB167901 | KNOB, SIDE VENTILATOR CONTROL ROD |
| 86664 | MB188343 | PLATE, RR VENTILATOR DUCT |
| 86666 | MB167007 | ROD, SIDE VENTILATOR CONTROL |
| 86676 | MB167009 | BRACKET, FR SIDE VENTILATOR |
| 86762 | MF434103 | NUT, ENG OIL PAN - Flange,6 |
| 86779 | MB068154 | SCREW, RR VENTILATION - Tapping,5x12 |
| 86783 | MB023930 | GROMMET, RR END PANEL GARNISH - Screw,4 |
| 86788 | MB133763 | NUT, CRUISE CONTROL ELECTRICALS - Washer assembled,5 |
| 86792 | MB167408 | BUSHING, PTO GEARSHIFT LINK - 9x8.5 |
| OEM | Part name | Category |
|---|---|---|
| MB023930 | GROMMET, RR END PANEL GARNISH - Screw,4 | Ventilation & duct |
| MB068154 | SCREW, RR VENTILATION - Tapping,5x12 | Ventilation & duct |
| MB123535 | BOX, SIDE VENTILATOR, RH | Ventilation & duct |
| MB123544 | DUCT, FR SIDE VENTILATOR | Ventilation & duct |
| MB133763 | NUT, CRUISE CONTROL ELECTRICALS - Washer assembled,5 | Ventilation & duct |
| MB167007 | ROD, SIDE VENTILATOR CONTROL | Ventilation & duct |
| MB167009 | BRACKET, FR SIDE VENTILATOR | Ventilation & duct |
| MB167408 | BUSHING, PTO GEARSHIFT LINK - 9x8.5 | Ventilation & duct |
| MB167901 | KNOB, SIDE VENTILATOR CONTROL ROD | Ventilation & duct |
| MB167957 | DUCT, RR VENTILATOR | Ventilation & duct |
| MB188343 | PLATE, RR VENTILATOR DUCT | Ventilation & duct |
| MB272582 | DUCT, VENTILATOR, CTR | Ventilation & duct |
| MB272588 | DUCT, FR SIDE VENTILATOR - Lh | Ventilation & duct |
| MF434103 | NUT, ENG OIL PAN - Flange,6 | Ventilation & duct |
