Search › Model › L069P
L069P

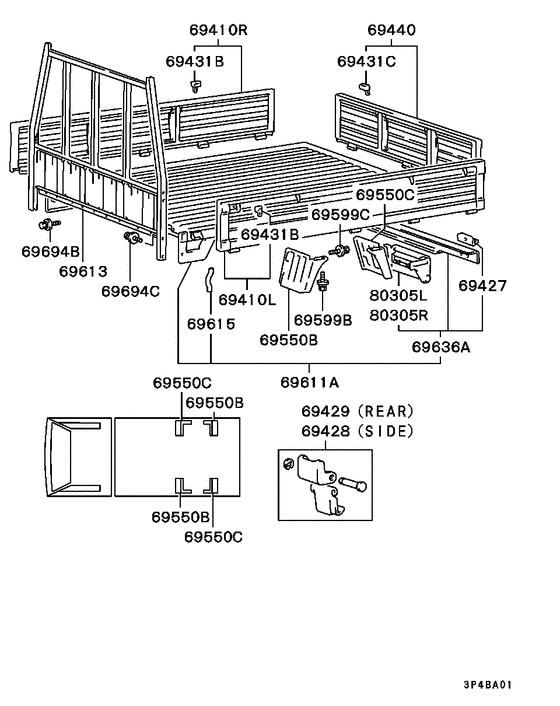

Rear body (FLOOR ETC.) 18
| # | OEM | Part name |
|---|---|---|
| 69410 | MB506843 | GATE, RR BODY SIDE, LH |
| 69410 | MB506844 | GATE, RR BODY SIDE, RH |
| 69427 | MB506839 | HINGE, RR GATE FEMALE |
| 69428 | MB312080 | HINGE KIT, RR BODY SIDE GATE |
| 69429 | MB312081 | HINGE KIT, RR BODY RR GATE |
| 69431 | MB151794 | HOOK, RR BODY GATE ROPE |
| 69440 | MB506840 | GATE, RR BODY, RR |
| 69550 | MB151798 | FENDER, RR BODY |
| 69550 | MB151797 | FENDER, RR BODY |
| 69599 | MF243649 | BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 |
| 69599 | MF247249 | BOLT - Washer assembled,8x16 |
| 69611 | MB506835 | FLOOR ASSY, RR BODY |
| 69613 | MB506846 | FRAME, RR BODY GUARD |
| 69615 | MB507113 | HOOK, RR BODY FLOOR ROPE |
| 69636 | MB506836 | SILL ASSY, RR BODY FLOOR |
| 69694 | MF247278 | BOLT, FENDER SHIELD - Washer assembled,10x20 |
| 80305 | MB506837 | BRACKET, RR LAMP, LH |
| 80305 | MB506838 | BRACKET, RR LAMP, RH |
| OEM | Part name | Category |
|---|---|---|
| MB151794 | HOOK, RR BODY GATE ROPE | Rear body (FLOOR ETC.) |
| MB151797 | FENDER, RR BODY | Rear body (FLOOR ETC.) |
| MB151798 | FENDER, RR BODY | Rear body (FLOOR ETC.) |
| MB312080 | HINGE KIT, RR BODY SIDE GATE | Rear body (FLOOR ETC.) |
| MB312081 | HINGE KIT, RR BODY RR GATE | Rear body (FLOOR ETC.) |
| MB506835 | FLOOR ASSY, RR BODY | Rear body (FLOOR ETC.) |
| MB506836 | SILL ASSY, RR BODY FLOOR | Rear body (FLOOR ETC.) |
| MB506837 | BRACKET, RR LAMP, LH | Rear body (FLOOR ETC.) |
| MB506838 | BRACKET, RR LAMP, RH | Rear body (FLOOR ETC.) |
| MB506839 | HINGE, RR GATE FEMALE | Rear body (FLOOR ETC.) |
| MB506840 | GATE, RR BODY, RR | Rear body (FLOOR ETC.) |
| MB506843 | GATE, RR BODY SIDE, LH | Rear body (FLOOR ETC.) |
| MB506844 | GATE, RR BODY SIDE, RH | Rear body (FLOOR ETC.) |
| MB506846 | FRAME, RR BODY GUARD | Rear body (FLOOR ETC.) |
| MB507113 | HOOK, RR BODY FLOOR ROPE | Rear body (FLOOR ETC.) |
| MF243649 | BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 | Rear body (FLOOR ETC.) |
| MF247249 | BOLT - Washer assembled,8x16 | Rear body (FLOOR ETC.) |
| MF247278 | BOLT, FENDER SHIELD - Washer assembled,10x20 | Rear body (FLOOR ETC.) |
