L069P

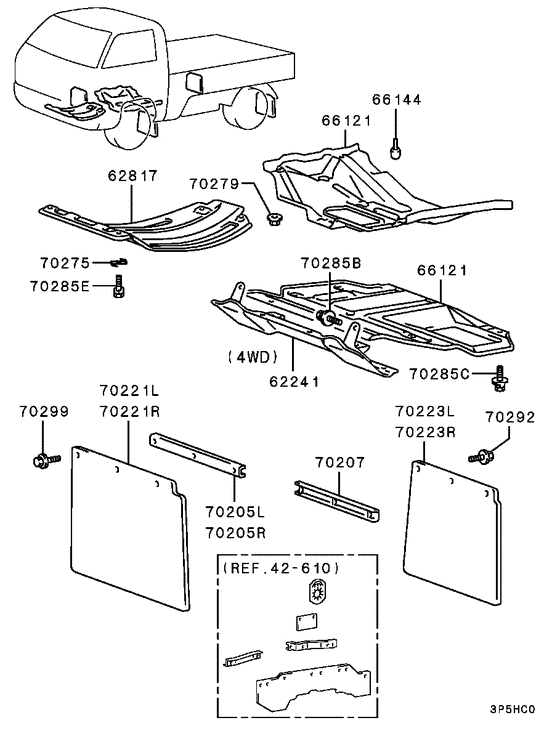

Mud guard,shield & stone guard 17
| # | OEM | Part name |
|---|---|---|
| 62817 | MB485215 | PANEL, AIR GUIDE |
| 62817 | MB635730 | PANEL, AIR GUIDE |
| 66121 | MB232953 | COVER, ENG ROOM UNDER... |
| 66144 | MB118606 | STOPPER, ENG ROOM UNDER COVER |
| 70205 | MB152699 | BRACKET, FR MUD GUARD, LH |
| 70205 | MB253930 | BRACKET, FR MUD GUARD, RH |
| 70207 | MB152336 | BRACKET, RR MUD GUARD |
| 70221 | MB117881 | MUD GUARD, FR |
| 70221 | MB929581 | MUD GUARD, FR LH |
| 70221 | MB929582 | MUD GUARD, FR RH |
| 70223 | MB478197 | MUD GUARD, RR LH |
| 70223 | MB478198 | MUD GUARD, RR RH |
| 70275 | MF450153 | WASHER, TIMING POWER TRAIN CASE - Plain,6 |
| 70279 | MB118657 | NUT, MUD GUARD - Cap,8 |
| 70285 | MF240023 | BOLT, FUEL TANK - Washer assembled,6x12 |
| 70292 | MS100232 | BOLT, RADIATOR SHROUD - Flange,6x14 |
| 70299 | MS240251 | BOLT, RADIATOR SHROUD - Washer assembled,6x12 |
| OEM | Part name | Category |
|---|---|---|
| MB117881 | MUD GUARD, FR | Mud guard,shield & stone guard |
| MB118606 | STOPPER, ENG ROOM UNDER COVER | Mud guard,shield & stone guard |
| MB118657 | NUT, MUD GUARD - Cap,8 | Mud guard,shield & stone guard |
| MB152336 | BRACKET, RR MUD GUARD | Mud guard,shield & stone guard |
| MB152699 | BRACKET, FR MUD GUARD, LH | Mud guard,shield & stone guard |
| MB232953 | COVER, ENG ROOM UNDER... | Mud guard,shield & stone guard |
| MB253930 | BRACKET, FR MUD GUARD, RH | Mud guard,shield & stone guard |
| MB478197 | MUD GUARD, RR LH | Mud guard,shield & stone guard |
| MB478198 | MUD GUARD, RR RH | Mud guard,shield & stone guard |
| MB485215 | PANEL, AIR GUIDE | Mud guard,shield & stone guard |
| MB635730 | PANEL, AIR GUIDE | Mud guard,shield & stone guard |
| MB929581 | MUD GUARD, FR LH | Mud guard,shield & stone guard |
| MB929582 | MUD GUARD, FR RH | Mud guard,shield & stone guard |
| MF240023 | BOLT, FUEL TANK - Washer assembled,6x12 | Mud guard,shield & stone guard |
| MF450153 | WASHER, TIMING POWER TRAIN CASE - Plain,6 | Mud guard,shield & stone guard |
| MS100232 | BOLT, RADIATOR SHROUD - Flange,6x14 | Mud guard,shield & stone guard |
| MS240251 | BOLT, RADIATOR SHROUD - Washer assembled,6x12 | Mud guard,shield & stone guard |
