Search › Model › L069P
L069P

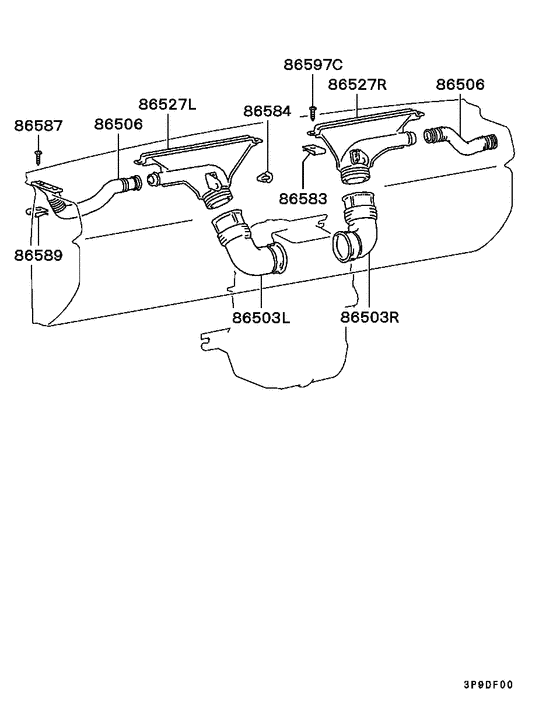

Defroster nozzle & duct 9
| # | OEM | Part name |
|---|---|---|
| 86503 | MB272602 | DUCT, DEFROSTER, LH |
| 86503 | MB272603 | DUCT, DEFROSTER, RH |
| 86506 | MB272584 | DUCT, SIDE DEFROSTER - Lh |
| 86506 | MB272586 | DUCT, SIDE DEFROSTER - Rh |
| 86527 | MB272600 | NOZZLE, DEFROSTER, LH |
| 86527 | MB272601 | NOZZLE, DEFROSTER, RH |
| 86583 | MA147258 | NUT, SIDE AIR DAM - Spring,5 |
| 86584 | MB132175 | CLIP, RADIATOR - 9 |
| 86587 | MF453031 | SCREW 5x12 - Tapping,5x12 |
| OEM | Part name | Category |
|---|---|---|
| MA147258 | NUT, SIDE AIR DAM - Spring,5 | Defroster nozzle & duct |
| MB132175 | CLIP, RADIATOR - 9 | Defroster nozzle & duct |
| MB272584 | DUCT, SIDE DEFROSTER - Lh | Defroster nozzle & duct |
| MB272586 | DUCT, SIDE DEFROSTER - Rh | Defroster nozzle & duct |
| MB272600 | NOZZLE, DEFROSTER, LH | Defroster nozzle & duct |
| MB272601 | NOZZLE, DEFROSTER, RH | Defroster nozzle & duct |
| MB272602 | DUCT, DEFROSTER, LH | Defroster nozzle & duct |
| MB272603 | DUCT, DEFROSTER, RH | Defroster nozzle & duct |
| MF453031 | SCREW 5x12 - Tapping,5x12 | Defroster nozzle & duct |
