Search › Model › L039P
L039P

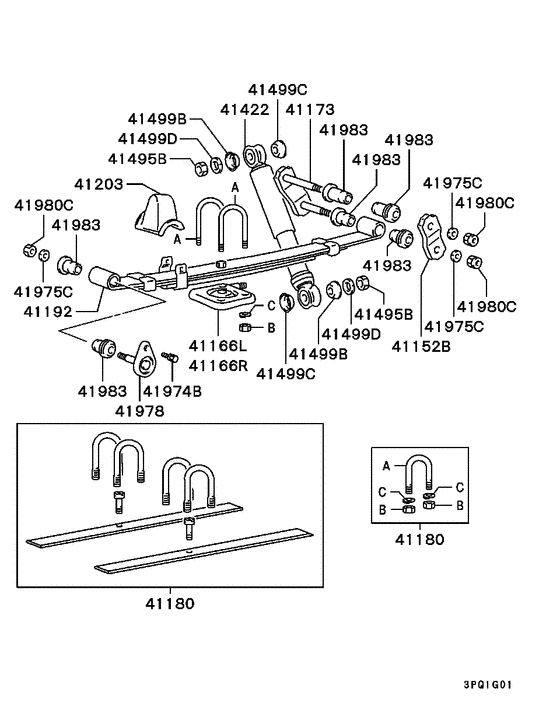

Rear susp (ALL) 21
| # | OEM | Part name |
|---|---|---|
| 41152 | MB110496 | PLATE, RR SUSP SPRING SHACKLE |
| 41166 | MB111014 | SEAT, RR SUSP SPRING U-BOLT, LH |
| 41166 | MB111015 | SEAT, RR SUSP SPRING U-BOLT, RH |
| 41173 | MB110494 | SHACKLE, RR SUSP SPRING |
| 41180 | MB242395 | U-BOLT KIT, RR SUSP SPRING - 135 |
| 41180 | MB912913 | U-BOLT KIT, RR SUSP SPRING |
| 41180 | MB631510 | U-BOLT,RR SUSP SPRING - HEAVY DUTY |
| 41192 | MB111079 | SPRING ASSY, RR SUSP |
| 41203 | MB111003 | STOPPER, RR SUSP LWR ARM BUMP |
| 41422 | MB515568 | SHOCK ABSORBER, RR SUSP |
| 41495 | MF430006 | NUT - 10 |
| 41499 | MT100389 | WASHER, RR SHOCK ABSORBER - Eye,11 |
| 41499 | MT100388 | WASHER, FR SUSP SPRING - Eye,17 |
| 41499 | MF450406 | WASHER - Spring,10 |
| 41974 | MF241255 | BOLT, CYLINDER HEAD - Washer assembled,8x25 |
| 41975 | MF450407 | WASHER - Spring,12 |
| 41978 | MT362387 | PIN, RR SUSP SPRING - 12x109.5 |
| 41980 | MF430007 | NUT - 12 |
| 41983 | MB111070 | BUSHING, RR SUSP SPRING |
| 41983 | MB584530 | BUSHING, RR SUSP SPRING - REAR LOWER |
| 41983 | MB111071 | BUSHING, RR SUSP SPRING |
| OEM | Part name | Category |
|---|---|---|
| MB110494 | SHACKLE, RR SUSP SPRING | Rear susp (ALL) |
| MB110496 | PLATE, RR SUSP SPRING SHACKLE | Rear susp (ALL) |
| MB111003 | STOPPER, RR SUSP LWR ARM BUMP | Rear susp (ALL) |
| MB111014 | SEAT, RR SUSP SPRING U-BOLT, LH | Rear susp (ALL) |
| MB111015 | SEAT, RR SUSP SPRING U-BOLT, RH | Rear susp (ALL) |
| MB111070 | BUSHING, RR SUSP SPRING | Rear susp (ALL) |
| MB111071 | BUSHING, RR SUSP SPRING | Rear susp (ALL) |
| MB111079 | SPRING ASSY, RR SUSP | Rear susp (ALL) |
| MB242395 | U-BOLT KIT, RR SUSP SPRING - 135 | Rear susp (ALL) |
| MB515568 | SHOCK ABSORBER, RR SUSP | Rear susp (ALL) |
| MB584530 | BUSHING, RR SUSP SPRING - REAR LOWER | Rear susp (ALL) |
| MB631510 | U-BOLT,RR SUSP SPRING - HEAVY DUTY | Rear susp (ALL) |
| MB912913 | U-BOLT KIT, RR SUSP SPRING | Rear susp (ALL) |
| MF241255 | BOLT, CYLINDER HEAD - Washer assembled,8x25 | Rear susp (ALL) |
| MF430006 | NUT - 10 | Rear susp (ALL) |
| MF430007 | NUT - 12 | Rear susp (ALL) |
| MF450406 | WASHER - Spring,10 | Rear susp (ALL) |
| MF450407 | WASHER - Spring,12 | Rear susp (ALL) |
| MT100388 | WASHER, FR SUSP SPRING - Eye,17 | Rear susp (ALL) |
| MT100389 | WASHER, RR SHOCK ABSORBER - Eye,11 | Rear susp (ALL) |
| MT362387 | PIN, RR SUSP SPRING - 12x109.5 | Rear susp (ALL) |
