Search › Model › L032P
L032P

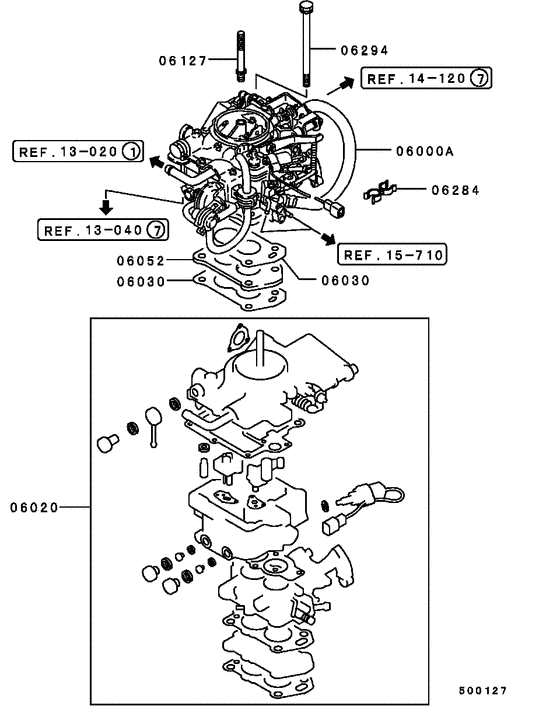

Carburetor (ALL (ASSEMBLY)) 11
| # | OEM | Part name |
|---|---|---|
| 6000 | MD112429 | CARBURETOR ASSY |
| 6000 | MD181663 | CARBURETOR ASSY |
| 6020 | MD601737 | GASKET KIT, CARB |
| 6020 | MD615274 | GASKET KIT,CARB |
| 6030 | MD091628 | GASKET, CARB |
| 6030 | MD164718 | GASKET, CARB |
| 6030 | MD164811 | GASKET,CARB |
| 6030 | MD187321 | GASKET, CARB |
| 6052 | MD007093 | INSULATOR, CARB HEAT |
| 6127 | MD600446 | STUD, CARB |
| 6294 | MD025519 | BOLT, CARB - Washer assembled,8x110 |
| OEM | Part name | Category |
|---|---|---|
| MD007093 | INSULATOR, CARB HEAT | Carburetor (ALL (ASSEMBLY)) |
| MD025519 | BOLT, CARB - Washer assembled,8x110 | Carburetor (ALL (ASSEMBLY)) |
| MD091628 | GASKET, CARB | Carburetor (ALL (ASSEMBLY)) |
| MD112429 | CARBURETOR ASSY | Carburetor (ALL (ASSEMBLY)) |
| MD164718 | GASKET, CARB | Carburetor (ALL (ASSEMBLY)) |
| MD164811 | GASKET,CARB | Carburetor (ALL (ASSEMBLY)) |
| MD181663 | CARBURETOR ASSY | Carburetor (ALL (ASSEMBLY)) |
| MD187321 | GASKET, CARB | Carburetor (ALL (ASSEMBLY)) |
| MD600446 | STUD, CARB | Carburetor (ALL (ASSEMBLY)) |
| MD601737 | GASKET KIT, CARB | Carburetor (ALL (ASSEMBLY)) |
| MD615274 | GASKET KIT,CARB | Carburetor (ALL (ASSEMBLY)) |
