Search › Model › KZN215
KZN215

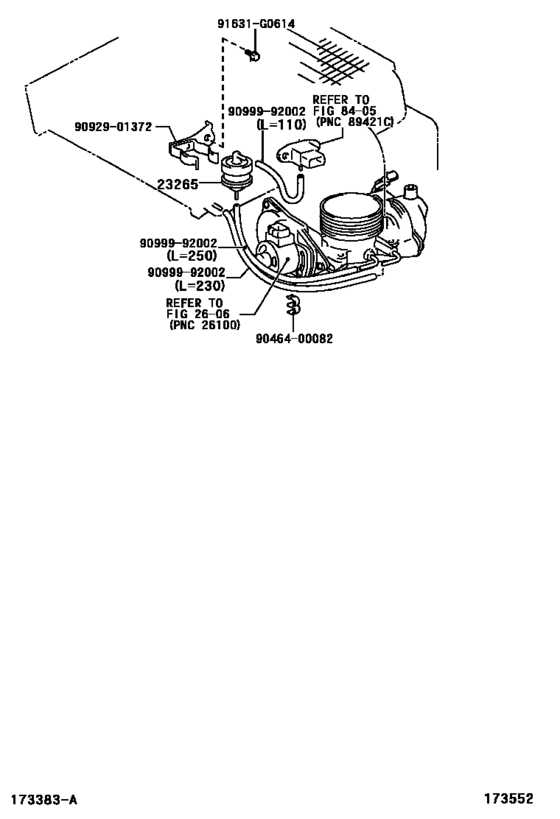

Vacuum Piping ([11.2002 - ] (0211- )1KZTE) 5
| # | OEM | Part name |
|---|---|---|
| 23265 | 90917-11038 | Filter, Gas, No.1 |
| 91631 | 91631-G0614 | BOT WWASHER |
| 9046400082 | 90464-00082 | Clamp(For Resistive Cord) |
| 9092901372 | 90929-01372 | Bracket |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| OEM | Part name | Category |
|---|---|---|
| 90464-00082 | Clamp(For Resistive Cord) | Vacuum Piping ([11.2002 - ] (0211- )1KZTE) |
| 90917-11038 | Filter, Gas, No.1 | Vacuum Piping ([11.2002 - ] (0211- )1KZTE) |
| 90929-01372 | Bracket | Vacuum Piping ([11.2002 - ] (0211- )1KZTE) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([11.2002 - ] (0211- )1KZTE) |
| 91631-G0614 | BOT WWASHER | Vacuum Piping ([11.2002 - ] (0211- )1KZTE) |
