KZN215

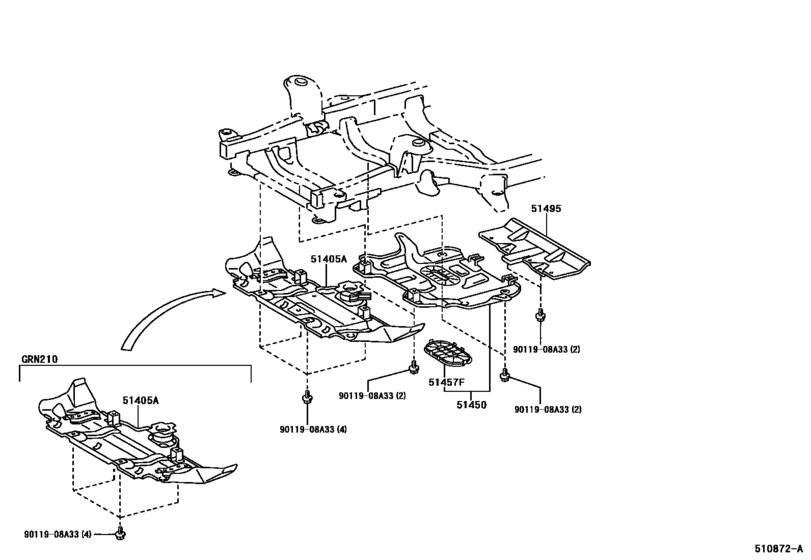

Suspension Crossmember & Under Cover ([11.2002 - ] (0211- )) 6
| # | OEM | Part name |
|---|---|---|
| 51405 | 51405-35100 | Cover Sub-Assy, Engine Under, No.1 |
| 51405 | 51405-35101 | Cover Sub-Assy, Engine Under, No.1 |
| 51450 | 51450-35010 | Cover Assy, Engine Under, Rear |
| 51457 | 51457-35030 | Seal, Engine Under Cover, No.3 |
| 51495 | 51495-35050 | Cover, Transmission Under |
| 9011908 | 90119-08A33 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 51405-35100 | Cover Sub-Assy, Engine Under, No.1 | Suspension Crossmember & Under Cover ([11.2002 - ] (0211- )) |
| 51405-35101 | Cover Sub-Assy, Engine Under, No.1 | Suspension Crossmember & Under Cover ([11.2002 - ] (0211- )) |
| 51450-35010 | Cover Assy, Engine Under, Rear | Suspension Crossmember & Under Cover ([11.2002 - ] (0211- )) |
| 51457-35030 | Seal, Engine Under Cover, No.3 | Suspension Crossmember & Under Cover ([11.2002 - ] (0211- )) |
| 51495-35050 | Cover, Transmission Under | Suspension Crossmember & Under Cover ([11.2002 - ] (0211- )) |
| 90119-08A33 | BOLT | Suspension Crossmember & Under Cover ([11.2002 - ] (0211- )) |
