Search › Model › KZN215

KZN215

Toyota HILUX-SURF-4RUNNER · 2002 · 4,481 parts · 194 categories

4,481 items

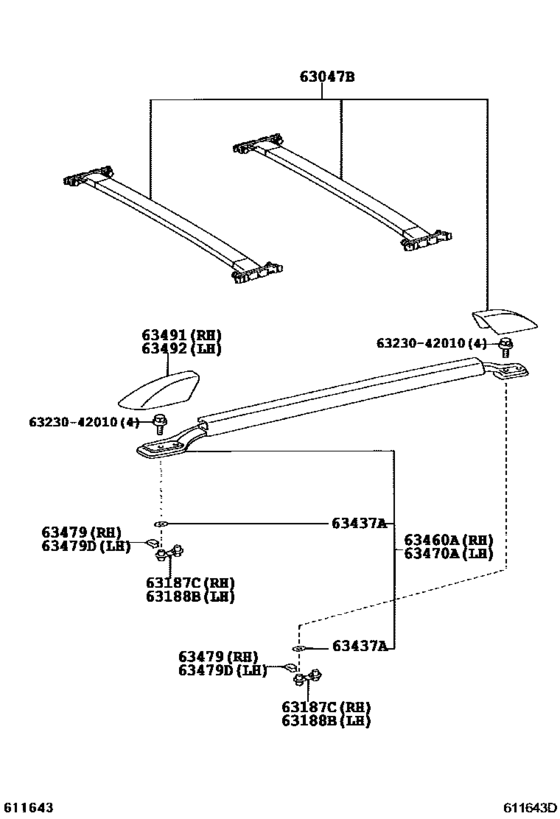

Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305)) 24

#	OEM	Part name
63047	63047-35010	Bar & Cover Set, Roof Rack
63047	63493-35011	Cover, Roof Rack Leg, Rear Rh
63047	63409-35010	Support Sub-Assy, Roof Rack, Center
63047	63444-35010	Protector, Roof Carrier, No.1
63047	63445-35010	Protector, Roof Carrier, No.2
63047	63494-35011	Cover, Roof Rack Leg, Rear Lh
63187	63187-35020	Bracket, Roof Rack, Rear
63437	63437-60020	Seal, Roof Carrier, No.2
63460	63460-35020	Rack Assy, Roof, Rh
63460	63460-35021	Rack Assy, Roof, Rh
63460	63460-35031	Rack Assy, Roof, Rh
63470	63470-35010	Rack Assy, Roof, Lh
63470	63470-35012	Rack Assy, Roof, Lh
63470	63470-35011	Rack Assy, Roof, Lh
63470	63470-35021	Rack Assy, Roof, Lh
63470	63470-35022	Rack Assy, Roof, Lh
63479	63479-42010	Retainer, Roof Inner Rack
63491	63491-35010	Cover, Roof Rack Leg, Front Rh
63491	63491-35011	Cover, Roof Rack Leg, Front Rh
63491	63491-35021	Cover, Roof Rack Leg, Front Rh
63492	63492-35010	Cover, Roof Rack Leg, Front Lh
63492	63492-35011	Cover, Roof Rack Leg, Front Lh
63492	63492-35021	Cover, Roof Rack Leg, Front Lh
6323042010	63230-42010	Bolt Assy, Removable Roof

OEM	Part name	Category
63047-35010	Bar & Cover Set, Roof Rack	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63187-35020	Bracket, Roof Rack, Rear	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63230-42010	Bolt Assy, Removable Roof	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63409-35010	Support Sub-Assy, Roof Rack, Center	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63437-60020	Seal, Roof Carrier, No.2	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63444-35010	Protector, Roof Carrier, No.1	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63445-35010	Protector, Roof Carrier, No.2	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63460-35020	Rack Assy, Roof, Rh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63460-35021	Rack Assy, Roof, Rh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63460-35031	Rack Assy, Roof, Rh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63470-35010	Rack Assy, Roof, Lh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63470-35011	Rack Assy, Roof, Lh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63470-35012	Rack Assy, Roof, Lh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63470-35021	Rack Assy, Roof, Lh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63470-35022	Rack Assy, Roof, Lh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63479-42010	Retainer, Roof Inner Rack	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63491-35010	Cover, Roof Rack Leg, Front Rh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63491-35011	Cover, Roof Rack Leg, Front Rh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63491-35021	Cover, Roof Rack Leg, Front Rh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63492-35010	Cover, Roof Rack Leg, Front Lh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63492-35011	Cover, Roof Rack Leg, Front Lh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63492-35021	Cover, Roof Rack Leg, Front Lh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63493-35011	Cover, Roof Rack Leg, Rear Rh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
63494-35011	Cover, Roof Rack Leg, Rear Lh	Roof Panel & Back Panel ([11.2002 - 05.2003] ROOF RACK (0211-0305))
