Search › Model › KZN215

KZN215

Toyota HILUX-SURF-4RUNNER · 2002 · 4,481 parts · 194 categories

4,481 items

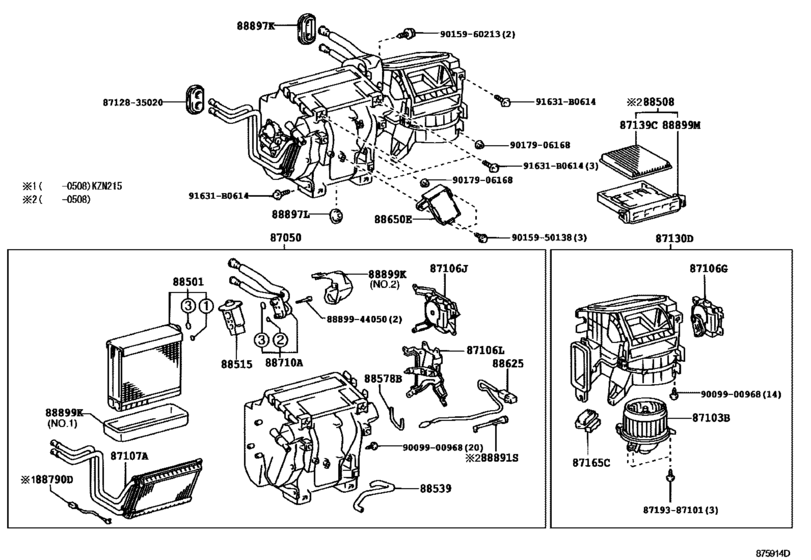

Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- )) 45

#	OEM	Part name
87050	87050-35050	Radiator Assy, Air Conditioner
87050	87050-35051	Radiator Assy, Air Conditioner
87103	87103-35040	Motor Sub-Assy, Cooling Unit, W/fan
87103	87103-35060	Motor Sub-Assy, Cooling Unit, W/fan
87106	87106-35150	Servo Sub-Assy, Damper(For Blower)
87106	87106-35120	Servo Sub-Assy, Damper(For Mode)
87106	87106-35140	Servo Sub-Assy, Damper(For Airmix)
87106	87106-35180	Servo Sub-Assy, Damper(For Airmix)
87107	87107-35100	Unit Sub-Assy, Heater Radiator
87130	87130-35150	Blower Assy
87130	87130-35151	Blower Assy
87139	87139-32010	Filter, Clean Air
87139	87139-28010	Filter, Clean Air
87165	87165-13010	Control, Blower Motor
88501	88501-35100	Evaporator Sub-Assy, Cooler, No.1
88501	88501-35160	Evaporator Sub-Assy, Cooler, No.1
88501	88501-35130	Evaporator Sub-Assy, Cooler, No.1
88508	88508-20120	Filter Sub-Assy, Clean Air
88515	88515-35020	Valve, Cooler Expansion
88515	88515-60190	Valve, Cooler Expansion
88515	88515-60120	Valve, Cooler Expansion
88539	88539-35030	Hose, Cooler Unit Drain, No.1
88578	88578-35170	Packing, Cooling Unit, No.1
88625	88625-35050	Thermistor, Cooler, No.1
88625	88625-35090	Thermistor, Cooler, No.1
88650	88650-35210	Amplifier Assy, Air Conditioner, No.1
88710	88710-35520	Tube Assy, Air Conditioner - AIRCONDITIONER
88710	88710-6B370	Tube & Accessory Assy, Air Conditioner
88710	88710-35650	Tube Assy, Air Conditioner - AIRCONDITIONER
88790	88790-35060	Thermistor Assy
88891	88891-32100	Bracket, Cooler Thermistor
88891	88891-35050	Cover, Cooler, No.1
88897	88897-35020	Grommet, (For Cooler Pipe)
88897	88899-3A010	Grommet (For Drain Hose)
88899	88899-60250	Plate, Cover
88899	88899-60260	Plate, Cover
88899	88899-41010	Plate, Cover(For Air Filter)
91631	91631-B0614	BOLT WWASHER
8712835020	87128-35020	Grommet, Heater
8719387101	87193-87101	SCREW TAPPING
8889944050	88899-44050	Bolt, W/Washer
9009900968	90099-00968	Screw(For Air Conditioner Unit)
9015950138	90159-50138	SCREW
9015960213	90159-60213	New Genuine Part
9017906168	90179-06168	Nut & Washer Assy

OEM	Part name	Category
87050-35050	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87050-35051	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87103-35040	Motor Sub-Assy, Cooling Unit, W/fan	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87103-35060	Motor Sub-Assy, Cooling Unit, W/fan	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87106-35120	Servo Sub-Assy, Damper(For Mode)	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87106-35140	Servo Sub-Assy, Damper(For Airmix)	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87106-35150	Servo Sub-Assy, Damper(For Blower)	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87106-35180	Servo Sub-Assy, Damper(For Airmix)	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87107-35100	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87128-35020	Grommet, Heater	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87130-35150	Blower Assy	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87130-35151	Blower Assy	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87139-28010	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87139-32010	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87165-13010	Control, Blower Motor	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
87193-87101	SCREW TAPPING	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88501-35100	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88501-35130	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88501-35160	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88508-20120	Filter Sub-Assy, Clean Air	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88515-35020	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88515-60120	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88515-60190	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88539-35030	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88578-35170	Packing, Cooling Unit, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88625-35050	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88625-35090	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88650-35210	Amplifier Assy, Air Conditioner, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88710-35520	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88710-35650	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88710-6B370	Tube & Accessory Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88790-35060	Thermistor Assy	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88891-32100	Bracket, Cooler Thermistor	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88891-35050	Cover, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88897-35020	Grommet, (For Cooler Pipe)	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88899-3A010	Grommet (For Drain Hose)	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88899-41010	Plate, Cover(For Air Filter)	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88899-44050	Bolt, W/Washer	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88899-60250	Plate, Cover	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
88899-60260	Plate, Cover	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
90099-00968	Screw(For Air Conditioner Unit)	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
90159-50138	SCREW	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
90159-60213	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
90179-06168	Nut & Washer Assy	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
91631-B0614	BOLT WWASHER	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] (0211- ))
