KZN215

Toyota HILUX-SURF-4RUNNER · 2002 · 4,481 parts · 194 categories
KZN215 ×

← Back to categories

4,481 items

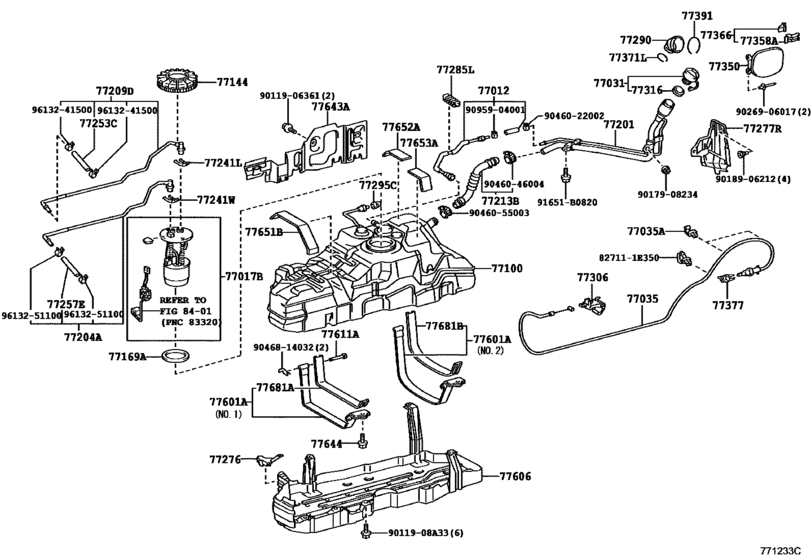

Fuel Tank & Tube ([11.2002 - 08.2005] FUEL TANK (0211-0508)KZN215) 70
#OEMPart name
0 82711-1E350 Clamp, Wiring Harness
0 82711-06050 Clamp, Door Scuff Plate, No.2
77012 77012-35060 Tube Sub-Assy, Fuel Tank Breather
77017 77010-35030 Tube Sub-Assy, Fuel Tank Vent
77031 77300-35020 Cap Assy, Fuel Tank
77031 77300-35050 Cap Assy, Fuel Tank
77035 77035-35120 Cable Sub-Assy, Fuel Lid Lock Control
77035 90469-06005 Clamp(For Hood Lock Control Cable)
77100 77001-3D530 Tank Assy, Fuel
77100 77001-60A30 Tank Sub-Assy, Fuel
77100 77001-3D531 Tank Sub-Assy, Fuel
77144 77144-35010 Retainer, Fuel Pump Gauge
77169 77169-35010 Gasket, Fuel Suction Tube Set
77169 77169-30050 Gasket, Fuel Suction Tube Set - (for the fuel tank pump housing)
77201 77201-35740 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-35790 Pipe Sub-Assy, Fuel Tank Inlet
77204 77204-35050 Tube, Fuel Tank Return
77209 77209-35430 Tube Sub-Assy, Fuel Tank Main
77213 77213-35390 Hose, Fuel Tank To Filler Pipe
77213 77213-35380 Hose, Fuel Tank To Filler Pipe
77241 77241-35450 Tube, Fuel Tank Suction
77241 77241-60320 Clip, Tube Joint
77253 95332-10018 Hose, Fuel, No.1 (For Main Tube, No.1)
77253 95338-10018 Hose, Fuel, No.1 (For Main Tube, No.1) - FUEL, NO.1(FOR FUEL MAIN TUBE)
77257 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77257 95337-06020 Hose, Differential Pressure Control
77276 77276-35040 Protector, Fuel Hose
77277 77277-60080 Protector, Fuel Tank Filler Pipe
77285 77285-35620 Clamp, Fuel Tube, No.1
77290 77291-35130 Shield Assy, Fuel Tank Filler Pipe
77295 77295-27010 Grommet, Fuel Tube
77306 77306-28050-C0 Fuel Lid Lock Open Lever Sub-Assy (Black)
77316 77316-33042 Gasket, Fuel Tank Cap
77350 77350-35050 Lid Assy, Fuel Filler Opening
77358 77358-30060 Stopper, Fuel Filler Opening Lid
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77366 77360-35040 Spring, Fuel Filler Opening Lid Hinge
77371 77371-35010 Ring, Fuel Tank Filler Pipe Shield
77377 77377-35010 Retainer, Fuel Filler Opening Lid Lock
77391 77391-35020 Ring, Fuel Inlet Box
77601 77601-35090 Band Sub-Assy, Fuel Tank, No.1
77601 77602-35030 Band Sub-Assy, Fuel Tank, No.1
77606 77606-35060 Protector Sub-Assy, Fuel Tank, No.1
77611 77653-35040 Pin (For Fuel Tank Band)
77643 77643-35020 Protector, Fuel Tank, No.3
77643 77643-35040 Protector, Fuel Tank, No.3
77644 77644-35030 Bolt, Fuel Tank
77651 77651-35070 Cushion, Fuel Tank
77652 77652-35060 Cushion, Fuel Tank, No.2
77653 77653-35050 Cushion, Fuel Tank, No.3
77681 77681-35030 Seat, Fuel Tank Band
77681 77681-35031 Seat, Fuel Tank Band
77681 77681-35040 Seat, Fuel Tank Band
77681 77681-35041 Seat, Fuel Tank Band
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011908 90119-08A33 BOLT
9011906361 90119-06361 BOLT WWASHER
9017908234 90179-08234 NUT
9018906212 90189-06212 GROMMET SCREW
9026906017 90269-06017 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046004 90460-46004 Clamp (For Fuel Filler Pipe)
9046046004 90460-46006 Clamp (For Fuel Filler Pipe)
9046055003 90460-55003 Clamp Or Clip(For Air Hose, No.1)
9046814032 90468-14032 CLIP
9095904001 90959-04001 Clip, Fuel Hose
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251100 96132-51100 Clip (For Hose)
