KZN130

Toyota HILUX-SURF-4RUNNER · 1993 · 5,566 parts · 218 categories
KZN130 ×

← Back to categories

5,566 items

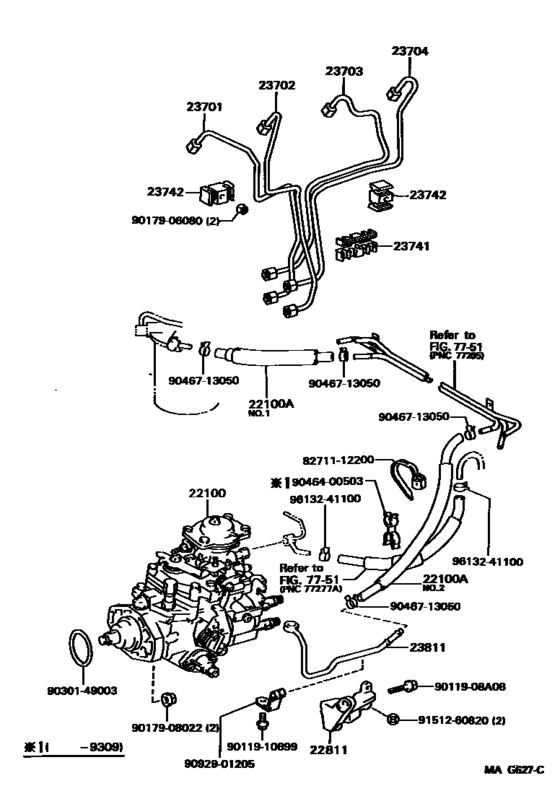

Injection Pump Assembly ([08.1993 - 11.1995] (9308-9511)1KZT..JPP..LHD) 28
#OEMPart name
22100 22100-67040 Pump Assy, Injection Or Supply
22100 23271-54020 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 23271-67060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22811 22811-67010 Stay, Injection Pump, No.1
23701 23701-67020 Pipe Sub-Assy, Injection, No.1
23701 23701-67021 Pipe Sub-Assy, Injection, No.1
23702 23702-67020 Pipe Sub-Assy, Injection, No.2
23702 23702-67021 Pipe Sub-Assy, Injection, No.2
23703 23703-67020 Pipe Sub-Assy, Injection, No.3
23703 23703-67021 Pipe Sub-Assy, Injection, No.3
23704 23704-67020 Pipe Sub-Assy, Injection, No.4
23741 23741-64030 Clamp, Injection Pipe, No.1
23742 23742-67010 Clamp, Injection Pipe, No.2
23811 23811-67030 Pipe, Fuel(For Fuel Filter To Injection Pump)
9011908 90119-08A08 New Genuine Part
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9011910699 90119-10699 BOLT WWASHER
9017906080 90179-06080 NUT
9017908022 90179-08022 NUT
9030149003 90301-49003 Gasket, Injection Pump
9046400503 90464-00503 New Genuine Part
9046713050 90467-13050 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713050 96135-51300 Clamp, Hose
9092901205 90929-01205 CLAMP
9151260820 91512-60820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151260820 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
