Search › Model › KZN130

KZN130

Toyota HILUX-SURF-4RUNNER · 1993 · 5,566 parts · 218 categories
KZN130 ×

← Back to categories

5,566 items

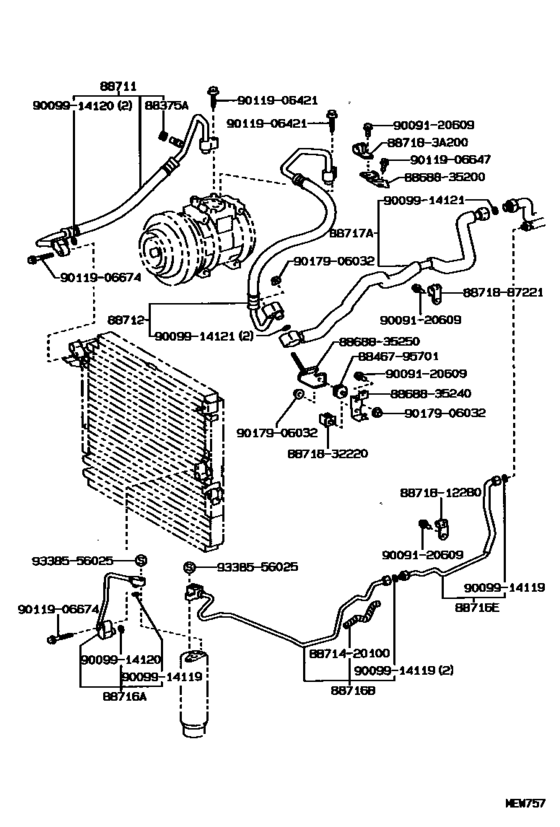

Heating & Air Conditioning - Cooler Piping ([08.1993 - 11.1995] HOSE & PIPE (9308-9511)KZN130..JPP..RHD) 30
#OEMPart name
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88711 88711-35260 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-35270 Hose, Cooler Refrigerant Suction, No.1
88712 88720-35290 Hose, Cooler Refrigerant Suction, No.1
88716 88716-35110 Pipe, Cooler Refrigerant Liquid, A
88716 88716-35200 Pipe, Cooler Refrigerant Liquid, B
88716 88716-35210 Pipe, Cooler Refrigerant Liquid, E
88717 88717-35070 Pipe, Cooler Refrigerant Suction, A
88717 88710-35180 Pipe, Cooler Refrigerant Suction, A
887183 88718-3A200 Pipe, Cooler Refrigerant Suction, No.2
8846795701 88467-95701 Insulator, Cooler Condenser Mounting
8868835200 88688-35200 Bracket, Cooler Diaphragm
8868835240 88688-35240 Bracket, Cooler Diaphragm
8868835250 88688-35250 Bracket, Cooler Diaphragm
8871420100 88714-20100 Insulator, Cooler Refrigerant Hose, No.1
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871832220 88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2
8871887221 88718-87221 Pipe, Cooler Refrigerant Suction, No.2
9009120609 90091-20609 BOLT
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9011906421 90119-06421 New Genuine Part
9011906647 90119-06647 BOLT WWASHER
9011906674 90119-06674 New Genuine Part
9011906674 91651-G0645 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9338556025 93385-56025 New Genuine Part
Source
Public OEM parts-catalog data
Variants
2 / 10
Category
218
Collected
2026-08-03
