KZN130

Toyota HILUX-SURF-4RUNNER · 1993 · 5,566 parts · 218 categories
KZN130 ×

← Back to categories

5,566 items

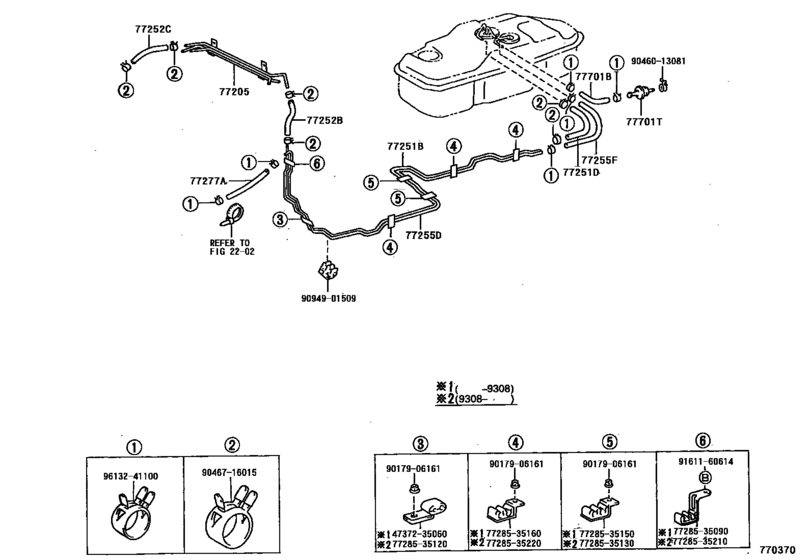

Fuel Tank & Tube ([08.1989 - 11.1995] (8908-9511)KZN130,LN130..JPP) 35
#OEMPart name
77205 77205-35250 Tube Sub-Assy, Fuel Main
77205 77205-35251 Tube Sub-Assy, Fuel Main
77251 77251-3D060 Tube, Fuel Main
77251 77259-35170 Hose, Fuel, No.2(For Fuel Main Tube)
77251 95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77251 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77251 77251-3D070 Tube, Fuel Main
77251 77251-3D071 Tube, Fuel Main
77252 77259-35290 Hose, Fuel, No.1 (For Fuel Main No.2 Tube)
77252 95332-10020 Hose, Fuel, No.2 (For Main Tube, No.1)
77252 77259-35260 Hose, Fuel, No.2(For Fuel Main No.2 Tube)
77255 77255-35720 Tube, Fuel Return
77255 90445-12232 Hose, Fuel, No.2 (For Fuel Return Tube)
77255 77255-35730 Tube, Fuel Return
77277 90447-12110 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23273-67030 Hose, Fuel, No.1(For Return Tube, No.1)
77701 90446-12030 Hose, Fuel, No.2 (For Breather Valve)
77701 90917-10078 Valve, Check (For Main Fuel Tank)
4737235060 47372-35060 Clamp, Brake Tube, No.2
7728535090 77285-35090 Bracket, Fuel Tube
7728535120 77285-35120 Bracket, Fuel Tube
7728535130 77285-35130 Bracket, Fuel Tube
7728535150 77285-35150 Bracket, Fuel Tube
7728535160 77285-35160 Bracket, Fuel Tube
7728535210 77285-35210 Bracket, Fuel Tube
7728535220 77285-35220 Bracket, Fuel Tube
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046013081 90460-13081 New Genuine Part
9046716015 90467-16015 Clamp Or Clip, Hose(For Oil Cooler Hose)
9046716015 96133-41500 Clamp Or Clip(For Air Hose, No.5)
9094901509 90949-01509 New Genuine Part
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
