Search › Model › KZJ73

KZJ73

Toyota LAND-CRUISER · 1993 · 5,604 parts · 197 categories

5,604 items

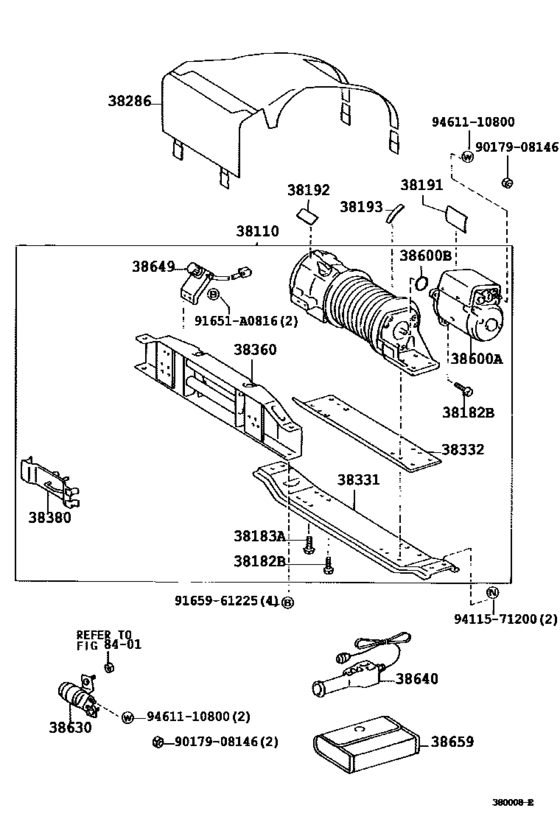

Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#) 64

#	OEM	Part name
28199	28199-15090	Cover, Starter End Frame
38110	38110-60213	Winch Assy
38110	38110-60214	Winch Assy
38182	38182-41018	Bolt, Winch, No.1
38182	38182-60830	Bolt, Winch, No.1
38182	38182-61025	Bolt, Winch, No.1
38182	38182-61022	Bolt, Winch, No.1
38182	91651-A0816	Bolt, Winch, No.1
38183	38183-61235	Bolt, Winch, No.1
38191	38191-60120	Plate, Winch Caution, No.1
38191	38191-60121	Plate, Winch Caution, No.1
38286	38286-60111	Cover, Winch
38331	38331-60210	Base, Winch, No.1
38332	38332-60170	Base, Winch, No.2
38332	38332-60210	Base, Winch, No.2
38360	38360-60032	Bracket Assy, Winch Roller
38380	38380-60022	Holder Assy, Winch Hook
38600	38600-60080	Motor Assy, W/magnet Switch, Winch
38600	38600-60091	Motor Assy, W/magnet Switch, Winch
38600	90301-59044	Ring, O (For Winch Gear Case Cover)
38601	38601-60050	Yoke Sub-Assy, Winch Motor
38603	38603-60050	Armature Sub-Assy, Winch Motor
38603	90099-10130	Bearing, No.1 (For Winch Motor Armature)
38603	90099-10201	Bearing, No.2 (For Winch Motor Armature)
38604	38604-60050	Holder Assy, Winch Motor Brush
38604	38604-60051	Holder Assy, Winch Motor Brush
38610	38610-60080	Motor Assy, Winch
38610	38610-60081	Motor Assy, Winch
38611	38611-60010	Switch, Magnet, No.2 (For Winch Motor)
38611	38611-60011	Switch, Magnet, No.2 (For Winch Motor)
38612	38612-60050	Frame, Winch Motor End
38612	38612-60060	Frame, Winch Motor End
38613	38613-60010	Brush, Winch Motor
38613	38613-60011	Brush, Winch Motor
38613	28143-46012	Spring, Winch Motor Brush
38614	90099-14023	Ring, O(For Starter Cover)
38618	38618-60080	Frame, Winch Motor Commutator End
38621	38621-60050	Cover, Magnet Switch Winch
38623	38623-60010	Stopper, Wimch Motor
38625	38625-60010	Bolt, Stud Winch Motor
38626	38626-60010	Bushing, Stepped Female Winch Motor
38627	38627-60011	Bushing, Stepped Male Winch Motor
38629	38629-60050	Wire, Winch Motor
38630	38630-60100	Switch Assy, Magnet, No.1
38639	38639-60050	Wire (For Winch Motor)
38640	38640-35010	Switch Assy, Winch Control
38649	38649-60020	Wire, Winch Control
38659	38659-60010	Cover, Winch Control Switch
9009300811	90093-00811	New Genuine Part
9009400606	90094-00606	New Genuine Part
9009900222	90099-00222	New Genuine Part
9009904584	90099-04584	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9165961225	91659-61225	BOLT
9321914008	93219-14008	Screw, W/washer(For Bearing Cover Setting)
9331116014	93311-16014	Screw
9338516016	93385-16016	New Genuine Part
9411571200	94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9451100400	94511-00400	WASHERSPRING
9451100800	94511-00800	WASHERSPRING
9461110800	94611-10800	Washer, Plate (For Transmission Control Cable)
9461240601	94612-40601	Washer

OEM	Part name	Category
28143-46012	Spring, Winch Motor Brush	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
28199-15090	Cover, Starter End Frame	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38110-60213	Winch Assy	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38110-60214	Winch Assy	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38182-41018	Bolt, Winch, No.1	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38182-60830	Bolt, Winch, No.1	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38182-61022	Bolt, Winch, No.1	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38182-61025	Bolt, Winch, No.1	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38183-61235	Bolt, Winch, No.1	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38191-60120	Plate, Winch Caution, No.1	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38191-60121	Plate, Winch Caution, No.1	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38286-60111	Cover, Winch	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38331-60210	Base, Winch, No.1	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38332-60170	Base, Winch, No.2	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38332-60210	Base, Winch, No.2	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38360-60032	Bracket Assy, Winch Roller	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38380-60022	Holder Assy, Winch Hook	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38600-60080	Motor Assy, W/magnet Switch, Winch	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38600-60091	Motor Assy, W/magnet Switch, Winch	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38601-60050	Yoke Sub-Assy, Winch Motor	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38603-60050	Armature Sub-Assy, Winch Motor	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38604-60050	Holder Assy, Winch Motor Brush	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38604-60051	Holder Assy, Winch Motor Brush	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38610-60080	Motor Assy, Winch	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38610-60081	Motor Assy, Winch	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38611-60010	Switch, Magnet, No.2 (For Winch Motor)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38611-60011	Switch, Magnet, No.2 (For Winch Motor)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38612-60050	Frame, Winch Motor End	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38612-60060	Frame, Winch Motor End	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38613-60010	Brush, Winch Motor	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38613-60011	Brush, Winch Motor	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38618-60080	Frame, Winch Motor Commutator End	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38621-60050	Cover, Magnet Switch Winch	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38623-60010	Stopper, Wimch Motor	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38625-60010	Bolt, Stud Winch Motor	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38626-60010	Bushing, Stepped Female Winch Motor	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38627-60011	Bushing, Stepped Male Winch Motor	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38629-60050	Wire, Winch Motor	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38630-60100	Switch Assy, Magnet, No.1	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38639-60050	Wire (For Winch Motor)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38640-35010	Switch Assy, Winch Control	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38649-60020	Wire, Winch Control	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
38659-60010	Cover, Winch Control Switch	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
90093-00811	New Genuine Part	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
90094-00606	New Genuine Part	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
90099-00222	New Genuine Part	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
90099-04584	New Genuine Part	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
90099-10130	Bearing, No.1 (For Winch Motor Armature)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
90099-10201	Bearing, No.2 (For Winch Motor Armature)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
90099-14023	Ring, O(For Starter Cover)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
90179-08146	Nut	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
90179-08204	Nut	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
90301-59044	Ring, O (For Winch Gear Case Cover)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
91651-A0816	Bolt, Winch, No.1	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
91659-61225	BOLT	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
93219-14008	Screw, W/washer(For Bearing Cover Setting)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
93311-16014	Screw	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
93385-16016	New Genuine Part	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
94120-40800	Nut(For Clutch Pedal Stopper)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
94511-00400	WASHERSPRING	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
94511-00800	WASHERSPRING	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
94611-10800	Washer, Plate (For Transmission Control Cable)	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)
94612-40601	Washer	Winch ([05.1993 - ] ELECTRICAL WINCH (9001-9305)RHD..LX ; (9001-9501)LJ70,73,RJ7#..LH D ; (9305- )KZJ7#)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 197
Collected: 2026-08-02
