Search › Model › KZJ73

KZJ73

Toyota LAND-CRUISER · 1993 · 5,604 parts · 197 categories

5,604 items

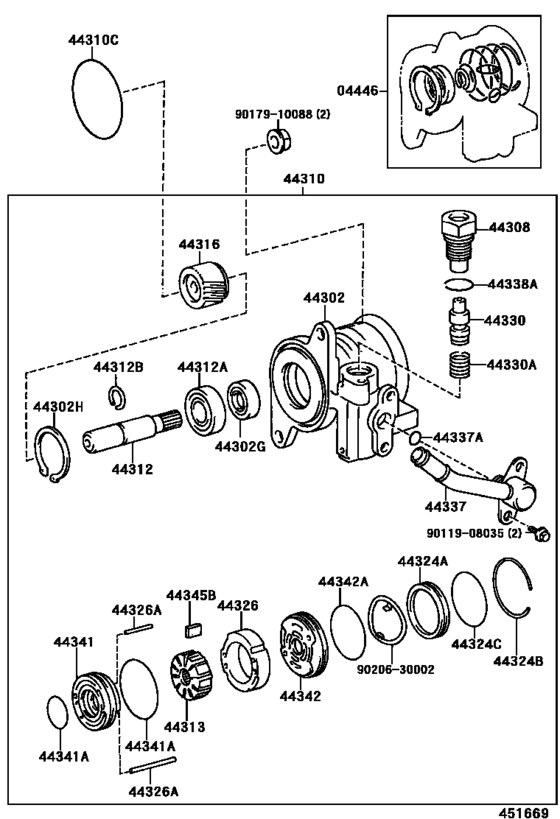

Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#) 62

#	OEM	Part name
4446	04446-60090	Gasket Kit, Power Steering Pump
4446	04446-60091	Gasket Kit, Power Steering Pump
44302	44302-60060	Housing Sub-Assy, Vane Pump, Front
44302	90316-17004	Seal, Oil, No.2(For Vane Pump Housing)
44302	90520-38016	Ring, Snap, No.1(For Vane Pump Housing)
44305	44305-24030	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-24050	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-60050	Union Sub-Assy, Pressure Port
44310	44310-60220	Pump Assy, Vane
44310	90301-60002	Ring, O(For Vane Pump)
44312	44312-60020	Shaft, Vane Pump
44312	90363-17016	Bearing(For Vane Pump Shaft)
44312	90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-26060	Rotor, Vane Pump
44313	44313-26070	Rotor, Vane Pump
44313	44313-26080	Rotor, Vane Pump
44313	44313-26090	Rotor, Vane Pump
44313	44313-26100	Rotor, Vane Pump
44316	44316-60030	Gear, Vane Pump
44324	44324-12031	Housing Sub-Assy, Vane Pump, Rear
44324	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44324	90301-53004	Ring, O(For Pump Housing Rear)
44324	90301-53006	Ring, O(For Pump Housing Rear)
44324	90301-53007	Ring, O(For Pump Housing Rear)
44326	44325-12270	Ring, Vane Pump Cam
44326	44325-12280	Ring, Vane Pump Cam
44326	44325-12290	Ring, Vane Pump Cam
44326	44325-12300	Ring, Vane Pump Cam
44326	44325-12310	Ring, Vane Pump Cam
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-60070	Valve Assy, Flow Control
44330	44330-60080	Valve Assy, Flow Control
44330	44330-60090	Valve Assy, Flow Control
44330	44330-60100	Valve Assy, Flow Control
44330	44330-60110	Valve Assy, Flow Control
44330	44330-60120	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44337	44337-60080	Union, Power Steering Suction Port
44337	90301-11010	Pin, Straight(For Vane Pump Cam Ring)
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44338	90301-19003	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44341	44341-60010	Plate, Vane Pump Side, Front
44341	90301-28005	Ring, O(For Vane Pump Front Side Plate)
44342	44342-60020	Plate, Vane Pump Side, Rear
44345	44345-26010	Plate, Vane Pump
44345	44345-26020	Plate, Vane Pump
44345	44345-26030	Plate, Vane Pump
44345	44345-26040	Plate, Vane Pump
44345	44345-26050	Plate, Vane Pump
44345	44345-60010	Plate, Vane Pump
44345	44345-60020	Plate, Vane Pump
44345	44345-60030	Plate, Vane Pump
44345	44345-60040	Plate, Vane Pump
44345	44345-60050	Plate, Vane Pump
44360	44360-60190	Reservoir Assy, Vane Pump Oil
9011908035	90119-08035	New Genuine Part
9017910088	90179-10088	Nut
9020630002	90206-30002	New Genuine Part
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt

OEM	Part name	Category
04446-60090	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
04446-60091	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44302-60060	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44305-24030	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44305-24050	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44308-60050	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44310-60220	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44312-60020	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44313-26060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44313-26070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44313-26080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44313-26090	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44313-26100	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44316-60030	Gear, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44324-12031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44325-12270	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44325-12280	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44325-12290	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44325-12300	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44325-12310	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44330-60070	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44330-60080	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44330-60090	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44330-60100	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44330-60110	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44330-60120	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44337-60080	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44341-60010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44342-60020	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44345-26010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44345-26020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44345-26030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44345-26040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44345-26050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44345-60010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44345-60020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44345-60030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44345-60040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44345-60050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
44360-60190	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90080-11396	Bolt	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90119-08035	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90179-10088	Nut	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90301-11010	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90301-19003	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90301-28005	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90301-53004	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90301-53006	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90301-53007	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90301-60002	Ring, O(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90316-17004	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90363-17016	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90520-38016	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)
91651-60816	BOLT	Vane Pump & Reservoir (Power Steering) ([05.1993 - ] (9305- )KZJ7#)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 197
Collected: 2026-08-02
