Search › Model › KZJ73

KZJ73

Toyota LAND-CRUISER · 1993 · 5,604 parts · 197 categories

5,604 items

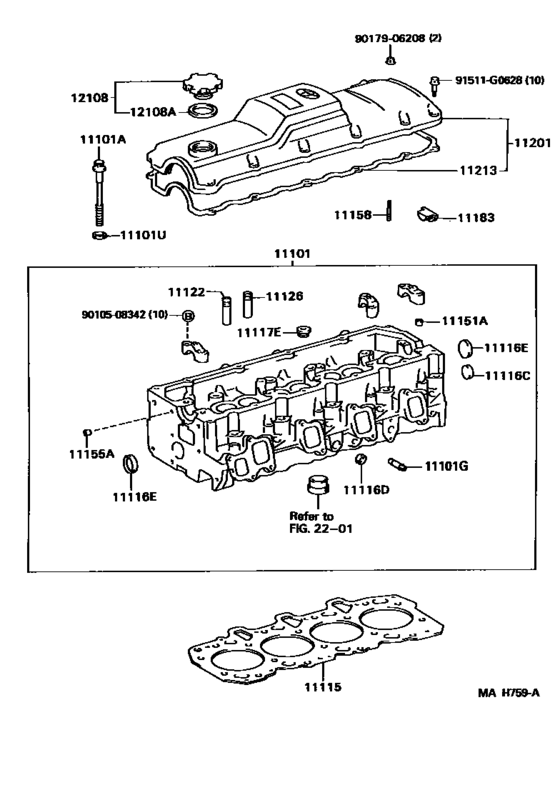

Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT) 43

#	OEM	Part name
11101	11101-69125	Head Sub-Assy, Cylinder - superseded
11101	11101-69128	Head Sub-Assy, Cylinder
11101	90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)
11101	90404-52004	Union(For Water By-Pass Hose)
11101	11176-67011	Seat, Injection Nozzle
11101	12281-67070	Hanger, Engine, No.1
11101	12282-67030	Hanger, Engine, No.2
11101	90119-10907	Bolt
11101	91512-81025	Bolt(For Torque Arm Setting)
11101	91642-81030	Bolt
11101	91651-61016	Bolt
11101	11101-69126	Head Sub-Assy, Cylinder
11101	90910-02112	Bolt(For Cylinder Head Set)
11101	90406-10019	Union(For Cylinder Head)
11101	90560-13023	Spacer(For Cylinder Head Set Bolt)
11115	11115-67020-01	Gasket, Cylinder Head
11115	11115-67050-01	Gasket, Cylinder Head
11115	11115-67020-03	Gasket, Cylinder Head
11115	11115-67050-03	Gasket, Cylinder Head
11115	11115-67020-05	Gasket, Cylinder Head
11115	11115-67050-05	Gasket, Cylinder Head
11115	11115-67040-01	Gasket, Cylinder Head
11115	11115-67040-03	Gasket, Cylinder Head
11115	11115-67040-05	Gasket, Cylinder Head
11116	96411-43000	Plug, Tight, No.1
11116	96411-63000	Plug, Tight
11116	96411-62000	Plug, Tight
11116	96411-63500	Plug, Tight
11117	90341-22008	Plug, W/head Straight Screw, No.1
11122	11122-67020	Bush, Intake Valve Guide
11122	11123-67020	Bush, Intake Valve Guide
11151	90253-11021	Pin, Ring
11155	90253-10004	Pin, Ring W/head
11158	90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)
11158	90116-06149	Bolt, Stud(For Head To Cylinder Head Cover)
11183	11183-54020	Plug, Semicircular
11201	11210-67010	Cover Sub-Assy, Cylinder Head
11213	11213-67010	Gasket, Cylinder Head Cover
12108	12180-55010	Cap Sub-Assy, Oil Filler
12108	90430-37004	Gasket(For Oil Filler Cap)
91511	91511-G0628	BOLT, FLANGE
9010508342	90105-08342	BOLT WASHER BASED
9017906208	90179-06208	NUT

OEM	Part name	Category
11101-69125	Head Sub-Assy, Cylinder - superseded	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11101-69126	Head Sub-Assy, Cylinder	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11101-69128	Head Sub-Assy, Cylinder	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11115-67020-01	Gasket, Cylinder Head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11115-67020-03	Gasket, Cylinder Head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11115-67020-05	Gasket, Cylinder Head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11115-67040-01	Gasket, Cylinder Head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11115-67040-03	Gasket, Cylinder Head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11115-67040-05	Gasket, Cylinder Head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11115-67050-01	Gasket, Cylinder Head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11115-67050-03	Gasket, Cylinder Head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11115-67050-05	Gasket, Cylinder Head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11122-67020	Bush, Intake Valve Guide	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11123-67020	Bush, Intake Valve Guide	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11176-67011	Seat, Injection Nozzle	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11183-54020	Plug, Semicircular	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11210-67010	Cover Sub-Assy, Cylinder Head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
11213-67010	Gasket, Cylinder Head Cover	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
12180-55010	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
12281-67070	Hanger, Engine, No.1	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
12282-67030	Hanger, Engine, No.2	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90105-08342	BOLT WASHER BASED	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90116-06149	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90119-10907	Bolt	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90179-06208	NUT	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90253-10004	Pin, Ring W/head	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90253-11021	Pin, Ring	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90341-22008	Plug, W/head Straight Screw, No.1	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90404-52004	Union(For Water By-Pass Hose)	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90406-10019	Union(For Cylinder Head)	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90430-37004	Gasket(For Oil Filler Cap)	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90560-13023	Spacer(For Cylinder Head Set Bolt)	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
90910-02112	Bolt(For Cylinder Head Set)	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
91511-G0628	BOLT, FLANGE	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
91512-81025	Bolt(For Torque Arm Setting)	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
91642-81030	Bolt	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
91651-61016	Bolt	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
96411-43000	Plug, Tight, No.1	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
96411-62000	Plug, Tight	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
96411-63000	Plug, Tight	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
96411-63500	Plug, Tight	Cylinder Head ([05.1993 - 04.1996] (9305-9604)1KZT)
