Search › Model › KZH138

KZH138

Toyota HIACE · 1995 · 5,584 parts · 260 categories

5,584 items

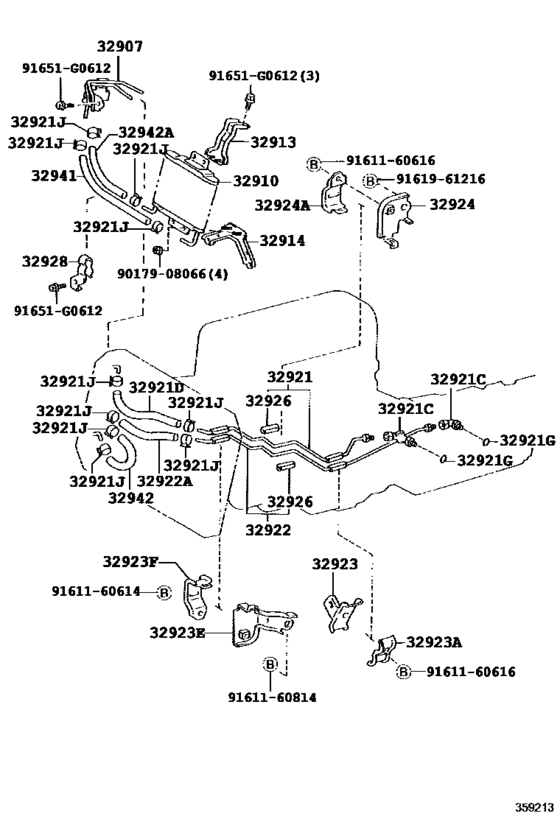

Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC) 39

#	OEM	Part name
32907	32907-26020	Tube Sub-Assy, Oil Cooler Outlet, No.2
32907	32907-26030	Tube Sub-Assy, Oil Cooler Outlet, No.2
32910	32910-26010	Cooler Assy, Oil
32913	32913-26010	Bracket, Oil Cooler
32914	32914-26010	Stay, Oil Cooler
32921	32921-26130	Tube, Oil Cooler Inlet, No.1
32921	32921-26300	Tube, Oil Cooler Inlet, No.1
32921	90407-14024	Union(For Oil Cooler Tube)
32921	90407-16009	Union(For Oil Cooler Tube)
32921	32941-22181	Hose(For Oil Cooler Inlet)
32921	32942-28190	Hose, Oil Cooler Water Outlet
32921	32942-35011	Hose(For Oil Cooler Inlet)
32921	90301-11006	O Ring, Transaxle Case Elbow
32921	90467-16013	Clip(For Oil Return Hose)
32921	90467-16022	Clip(For Water Inlet Hose)
32922	32922-26140	Tube, Oil Cooler Outlet, No.1
32922	32922-26290	Tube, Oil Cooler Outlet, No.1
32922	90445-17100	Hose, Oil Cooler Tube
32922	90445-17110	Hose(For Oil Cooler Inlet)
32923	32923-26100	Clamp, Automatic Transmission Oil Cooler Tube
32923	90462-12079	Clamp, Automatic Transmission Oil Cooler Tube
32923	32925-26010	Clamp, Automatic Transmission Oil Cooler Tube, No.6
32923	32929-30110	Clamp, Automatic Transmission Oil Cooler Tube
32924	32909-26150	Clamp, Oil Cooler Tube, No.2
32924	32924-35090	Clamp, Oil Cooler Tube, No.2
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32928	32928-26080	Clamp, Flexible Hose, No.1
32928	32928-26090	Clamp, Flexible Hose, No.1
32941	32941-26100	Hose, Oil Cooler Inlet, No.1
32942	32942-26030	Hose, Oil Cooler Outlet, No.1
32942	32942-26020	Hose, Oil Cooler Outlet, No.2
91651	91651-G0612	New Genuine Part
9017908066	90179-08066	New Genuine Part
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)
9161160814	91611-60814	Bolt
9161961216	91619-61216	New Genuine Part

OEM	Part name	Category
32907-26020	Tube Sub-Assy, Oil Cooler Outlet, No.2	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32907-26030	Tube Sub-Assy, Oil Cooler Outlet, No.2	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32909-26150	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32910-26010	Cooler Assy, Oil	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32913-26010	Bracket, Oil Cooler	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32914-26010	Stay, Oil Cooler	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32921-26130	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32921-26300	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32922-26140	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32922-26290	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32923-26100	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32924-35090	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32925-26010	Clamp, Automatic Transmission Oil Cooler Tube, No.6	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32928-26080	Clamp, Flexible Hose, No.1	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32928-26090	Clamp, Flexible Hose, No.1	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32929-30110	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32941-22181	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32941-26100	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32942-26020	Hose, Oil Cooler Outlet, No.2	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32942-26030	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32942-28190	Hose, Oil Cooler Water Outlet	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
32942-35011	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
90179-08066	New Genuine Part	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
90407-14024	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
90445-17100	Hose, Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
90445-17110	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
90462-12079	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
90467-16013	Clip(For Oil Return Hose)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
91611-60616	Bolt(For Transaxle Case Receiver)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
91611-60814	Bolt	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
91611-B0616	Bolt(For Transaxle Case Receiver)	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
91619-61216	New Genuine Part	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
91651-G0612	New Genuine Part	Oil Cooler & Tube (Atm) ([08.1993 - ] A340F (9308- )KZH106,116,120,13#..4FC)
