KZH138

Toyota HIACE · 1995 · 5,584 parts · 260 categories

5,584 items

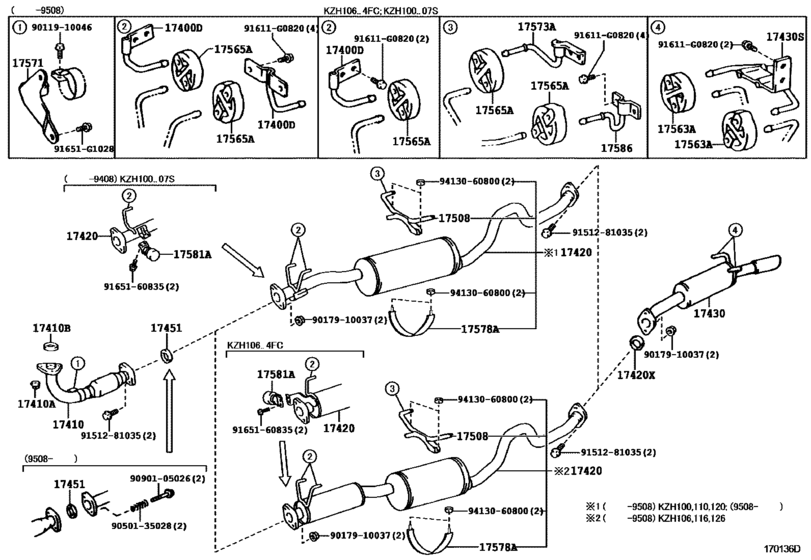

Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE) 39

#	OEM	Part name
17400	17587-67010	Bracket, Catalytic Converter Support
17400	17587-75011	Bracket, Catalytic Converter Support
17400	17588-67010	Bracket, Catalytic Converter Support
17400	17588-75011	Bracket, Catalytic Converter Support
17410	17401-67070	Pipe Assy, Exhaust, Front
17410	17401-67120	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	17451-67020	Gasket, Exhaust Pipe
17410	90917-06067	Gasket, Exhaust Pipe
17420	17420-67170	Pipe Assy, Exhaust, Center
17420	17420-67220	Pipe Assy, Exhaust, Center
17420	90917-06059	Gasket, Exhaust Pipe
17420	90917-06076	Gasket, Exhaust Pipe, Center
17430	17405-67080	Pipe Assy, Exhaust, Tail
17430	17430-67030	Pipe Assy, Exhaust, Tail
17430	17574-67020	Bracket, Exhaust Tail Pipe (For Rear)
17451	17451-67010	Gasket, Exhaust Pipe, Center
17451	90917-06057	Gasket, Exhaust Pipe, Center
17508	17508-67020	Support Sub-Assy, Exhaust Pipe, No.3
17508	17508-67030	Support Sub-Assy, Exhaust Pipe, No.3
17563	17565-15140	Bolt Or Ring, Exhaust Tail Pipe (For Front)
17573	17573-75020	Bracket, Exhaust Pipe Support, No.3
17573	17573-75021	Bracket, Exhaust Pipe Support, No.3
17578	17578-67010	Clamp, Muffler
17578	17578-67020	Clamp, Muffler
17586	17586-67010	Bracket, Heat Insulator, No.1
17586	17586-75010	Bracket, Heat Insulator, No.1
91611	91611-G0820	Bolt
91651	91651-G1028	New Genuine Part
9011910046	90119-10046	Bolt, No.1 (For Center Support Bearing)
9017910037	90179-10037	NUT
9017910037	90179-10128	NUT
9050135028	90501-35028	Spring, Exhaust Pipe
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9151281035	91512-81035	BOLT
9165160835	91651-60835	Bolt(For Front Suspension Control Accumulator)
9413060800	94130-60800	Nut(For Clutch Pedal Stopper)
9413060800	90170-A0003	New Genuine Part

OEM	Part name	Category
17401-67070	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17401-67120	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17405-67080	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17420-67170	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17420-67220	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17430-67030	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17451-67010	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17451-67020	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17508-67020	Support Sub-Assy, Exhaust Pipe, No.3	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17508-67030	Support Sub-Assy, Exhaust Pipe, No.3	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17565-15140	Bolt Or Ring, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17573-75020	Bracket, Exhaust Pipe Support, No.3	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17573-75021	Bracket, Exhaust Pipe Support, No.3	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17574-67020	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17578-67010	Clamp, Muffler	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17578-67020	Clamp, Muffler	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17586-67010	Bracket, Heat Insulator, No.1	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17586-75010	Bracket, Heat Insulator, No.1	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17587-67010	Bracket, Catalytic Converter Support	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17587-75011	Bracket, Catalytic Converter Support	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17588-67010	Bracket, Catalytic Converter Support	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
17588-75011	Bracket, Catalytic Converter Support	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90119-10046	Bolt, No.1 (For Center Support Bearing)	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90170-A0003	New Genuine Part	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90179-10037	NUT	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90179-10128	NUT	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90501-35028	Spring, Exhaust Pipe	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90917-06057	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90917-06059	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90917-06067	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
90917-06076	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
91512-81035	BOLT	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
91611-G0820	Bolt	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
91651-60835	Bolt(For Front Suspension Control Accumulator)	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
91651-G1028	New Genuine Part	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
94130-60800	Nut(For Clutch Pedal Stopper)	Exhaust Pipe ([08.1993 - 07.1999] (9308-9907)1KZTE)
