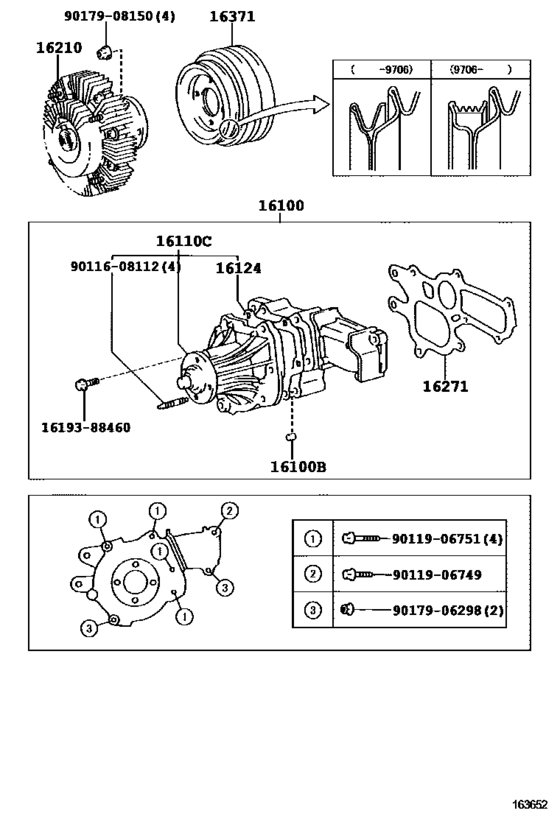

| 16100-69355 |
Pump Assy, Engine Water |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 16100-69356 |
Pump Assy, Engine Water |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 16100-69357 |
Pump Assy, Engine Water |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 16110-69045 |
Pump Assy, Water, W/o Cover |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 16124-67010 |
Gasket, Water Pump Cover |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 16159-70040 |
Pin, Ring(For Oil Pump Set) |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 16193-88460 |
Bolt, Stud(for Water Pump Cover) |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 16210-67010 |
Coupling Assy, Fluid |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 16271-67020 |
Gasket, Water Pump |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 16371-67020 |
Pulley, Fan |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 16371-67030 |
Pulley, Fan |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 90116-08112 |
Bolt, Stud(For Water Pump Coupling) |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 90119-06749 |
BOLT WWASHER |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 90119-06751 |
BOLT WWASHER |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 90179-06298 |
NUT |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
| 90179-08150 |
NUT |
Water Pump ([08.1993 - ] (9308- )1KZTE) |
