Search › Model › KZH132

KZH132

Toyota HIACE · 1995 · 5,415 parts · 261 categories
KZH132 ×

← Back to categories

5,415 items

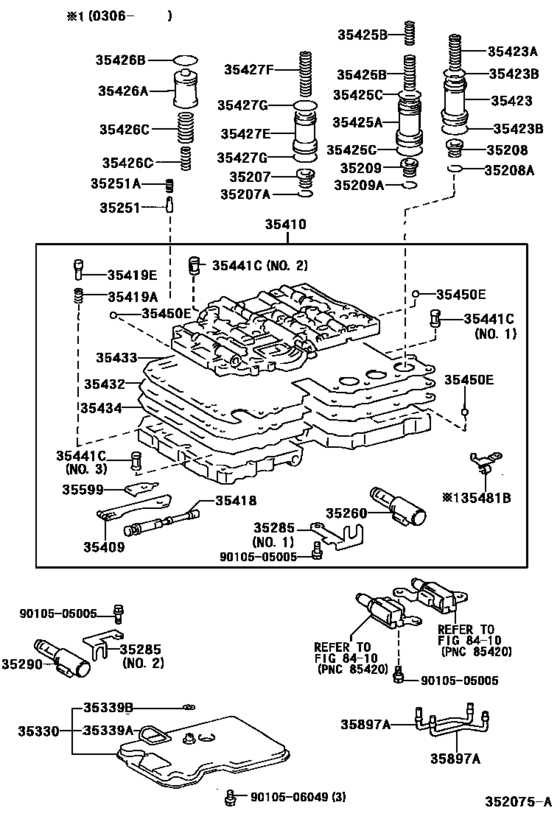

Valve Body & Oil Strainer (Atm) ([07.1999 - ] A340E,A340F (9907- )KZH10#,11#,120,13#) 103
#OEMPart name
35207 35207-22010 Spring Sub-Assy, B-0 Accumulator
35207 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35208 35208-35010 Spring Sub-Assy, B-2 Accumulator
35209 35209-22020 Spring Sub-Assy, C-2 Accumulator
35212 35212-12010 Valve, Lock Up Relay
35212 35212-24010 Valve, Lock Up Relay
35212 90501-06037 Spring, Compression (For Lock Up Relay Valve)
35212 90501-06057 Spring, Compression (For Lock Up Relay Valve)
35213 35213-24010 Valve, Lock Up Relay Control
35213 35213-30020 Plunger, Lock Up Relay Valve
35215 35215-24010 Sleeve, Lock Up Relay Valve, No.1
35215 35215-30020 Sleeve, Lock Up Relay Valve
35224 35224-30010 Valve, Reverse Control
35224 90282-03010 Key, Straight (For Lock Up Signal Valve)
35224 90339-05020 Plug (For Reverse Control Valve)
35224 90501-06056 Spring, Compression (For Reverse Control Valve)
35251 35251-30020 Body, Check Ball
35251 90501-03005 Spring, Compression (For Check Ball Body)
35260 35260-60010 Accumlator Assy, Throttle Pressure
35285 35285-24010 Plate, Solenoid Lock
35285 35285-24020 Plate, Solenoid Lock
35290 35290-60020 Solenoid Assy, Line Pressure Control
35330 35330-30011 Strainer Assy, Valve Body Oil
35330 35330-30020 Strainer Assy, Valve Body Oil
35339 35339-30070 Gasket, Oil Strainer, No.1
35339 90430-10010 Gasket, Oil Strainer, No.2
35409 35409-30020 Spring Sub-Assy, Manual Detent
35410 35410-26320 Body Assy, Transmission Valve
35410 35410-26510 Body Assy, Transmission Valve
35410 35410-26720 Body Assy, Transmission Valve
35418 35418-24010 Valve, Manual
35418 35418-30070 Valve, Manual
35419 90501-09093 Spring, Compression (For Check Valve)
35419 90501-11039 Spring, Compression (For Check Valve)
35419 35419-50010 Valve, Check, No.1
35419 35419-50020 Valve, Check, No.1
35419 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35419 90080-36191 Ball, Check Valve
35419 35419-50030 Valve, Check, No.2
35423 35423-30030 Piston, B-2 Accumulator
35423 90501-25028 Spring, Compression (For B-2 Accumulator Piston)
35423 90501-28011 Spring, Compression (For B-2 Accumulator Piston)
35423 90301-23010 Ring (For Accumulator Piston No.1)
35423 90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)
35423 90301-31002 Ring, O (For Low Speed Brake Accumulator Cover)
35423 90301-31010 Ring, O (For B-2 Accumulator Piston)
35425 35425-30020 Piston, C-2 Accumulator
35425 90501-22015 Spring, Compression (For C-2 Accumulator Piston)
35425 90501-25027 Spring, Compression (For C-2 Accumulator Piston)
35425 90301-25003 Ring, O (For C-2 Accumulator Piston)
35425 90301-25010 Ring, O(For Oil Pump Suction Pipe)
35426 35426-40010 Piston, C-0 Accumulator
35426 90301-24001 Ring, O (For C-0 Accumulator Piston)
35426 90301-24010 Ring, O (For C-0 Accumulator Piston)
35426 90501-22008 Spring, Compression (For C-2 Accumulator Piston)
35426 90501-23073 Spring, Compression (For C-0 Accumulator Piston)
35427 35427-30040 Piston, B-0 Accumulator
35427 90501-21006 Spring, Compression (For B-0 Accumulator Piston)
35427 90301-20002 Ring, O (For C-3 Accumulator Piston)
35427 90301-20008 Ring, O (For C-2 Accumulator Piston)
35427 90301-26002 Ring, O (For B-0 Accumulator Piston)
35427 90301-26011 Ring, O (For C-3 Accumulator Piston)
35432 35432-24041 Plate, Valve Body, No.1
35432 35432-26330 Plate, Valve Body, No.1
35433 35433-30064 Gasket, Valve Body, No.1
35433 35433-60040 Gasket, Valve Body, No.1
35434 35434-30076 Gasket, Valve Body, No.2
35434 35434-60040 Gasket, Valve Body, No.2
35438 35438-22020 Seat (For Direct Clutch Modulator Valve Plug)
35438 35493-22020 Seat, Plug (For Lock Up Relay Valve)
35441 35441-24010 Strainer, Solenoid Oil
35441 35441-24020 Strainer, Solenoid Oil
35441 35441-30020 Strainer, Solenoid Oil
35441 35441-30031 Strainer, Solenoid Oil
35441 35441-50030 Strainer, Solenoid Oil
35445 35445-30011 Valve, 2Nd Coast Modulator
35445 35445-50010 Valve, Low Modulator
35445 90339-04002 Plug(For Low-High Shift Valve)
35445 90501-10081 Spring, Compression (For Low Modulator Valve)
35450 35495-22020 Ball (For Transfer Upper Valve Body)
35450 35496-22030 Ball (For Lower Valve Body)
35456 35456-30060 Valve, 2-3 Shift
35456 90501-09053 Spring, Compression (For 2-3 Shift Valve)
35456 90339-05014 Plug, Low-High Signal Valve
35462 35462-30020 Valve, Throttle
35462 90501-07051 Spring, Compression (For Throttle Valve)
35468 35468-12020 Valve, Secondary Regulator
35468 35468-24010 Valve, Secondary Regulator
35468 90501-12170 Spring, Compression (For Secondary Regulator Valve)
35468 90501-15007 Spring, Compression (For Secondary Regulator Valve)
35468 35493-30030 Seat(For Center Differential Clutch Control Valve Plug)
35481 35481-24010 Clamp, Valve Body Wire Harness
35493 35493-30090 Seat, Shift Valve Plug, No.3
35493 35493-30080 Seat, 1-2 Shift Valve Plug
35497 35497-30040 Valve, 3-4 Shift
35521 90508-11007 Spring (For Throttle Valve Cam Return)
35521 90201-06472 Washer (For Throttle Valve Cam Set)
35521 90105-06018 Bolt (For Throttle Valve Cam Set)
35522 35522-22010 Pin, Throttle Valve Cam
35599 35599-30020 Cover, Manual Detent Spring
35897 35897-30020 Tube, 1St & Reverse Brake
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
