KZH120

Toyota HIACE · 1993 · 4,996 parts · 264 categories
KZH120 ×

← Back to categories

4,996 items

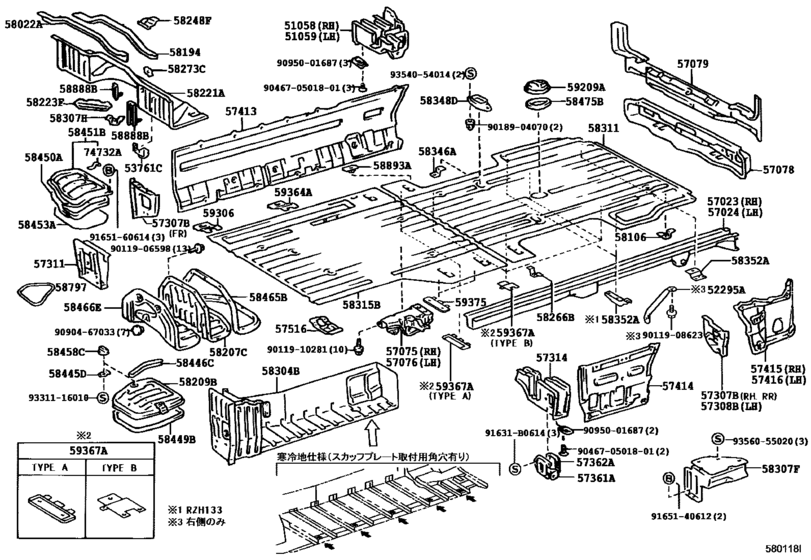

Rear Floor Panel & Rear Floor Member ([08.1993 - ] (9308- )KZH12#,13#,RZH133) 129
#OEMPart name
51058 51058-26080 Bracket Sub-Assy, Lower Control Link, Rh
51059 51059-26090 Bracket Sub-Assy, Lower Control Link, Lh
51265 51265-95J02 Bracket, Rear Shock Absorber, Rh
51266 51266-95J02 Bracket, Rear Shock Absorber, Lh
51267 51267-95J00 Reinforcement, Rear Shock Absorber Mounting, Rh
51268 51268-95J00 Reinforcement, Rear Shock Absorber Mounting, Lh
51341 51341-95J00 Gusset, Frame No.4 Crossmember, Rh
51354 51354-95J02 Plate, Rear Shock Absorber Member
51527 51527-26010 Bracket, Lateral Rod Support, Rear No.1
51537 51537-26010 Bracket, Lateral Rod Support, Front
51538 51538-95J00 Bracket, Lateral Rod Support, Rear
51682 51682-95J00 Bracket, Flexible Hose, No.2
52295 52295-26010 Brace, Rear Suspension Member, Rh
53761 53761-26010 Bracket, Battery Clamp Mounting
57023 57023-26190 Member Sub-Assy, Rear Side, Rh
57023 57023-26620 Member Sub-Assy, Rear Side, Rh
57024 57024-26240 Member Sub-Assy, Rear Side, Lh
57075 57075-26010 Bracket Sub-Assy, Upper Control Link, Rh
57076 57076-26020 Bracket Sub-Assy, Upper Control Link, Lh
57078 57069-26110 Member Sub-Assy, Rear Floor Rear Cross, Outer
57078 57069-95J08 Member Sub-Assy, Rear Floor Rear Cross, Outer
57079 57068-95J07 Member Sub-Assy, Rear Floor Rear Cross, Inner
57079 57068-95J08 Member Sub-Assy, Rear Floor Rear Cross, Inner
57307 57317-95J06 Outrigger Sub-Assy, No.4 Rh
57307 57317-95J08 Outrigger Sub-Assy, No.4 Rh
57308 57308-95J11 Outrigger Sub-Assy, No.4 Lh
57311 57301-26030 Outrigger, No.1 Rh
57314 57304-95J47 Outrigger, No.2 Lh
57361 57094-95J00 Cover, No.2 Outerigger Hole
57361 57361-95J01 Cover, Outrigger Hole
57362 57362-95J01 Packing, Outrigger Hole Cover
57413 57405-26510 Rail, Floor Side, Center Rh
57414 57406-26010 Rail, Floor Side, Center Lh
57414 57406-26480 Rail, Floor Side, Center Lh
57415 57047-26040 Rail, Floor Side, Rear Rh
57415 57047-26070 Rail, Floor Side, Rear Rh
57416 57048-26050 Rail, Floor Side, Rear Lh
57515 57515-26010 Bracket, Parking Brake, Rh
57516 57506-95J01 Bracket Sub-Assy, Parking Brake, Lh
57617 57617-26020 Retainer, Exhaust Pipe Bracket
57617 57617-95J09 Retainer, Exhaust Pipe Bracket
57617 57617-95J10 Retainer, Exhaust Pipe Bracket
57652 57652-26060 Member, Rear Floor Cross, No.1
57653 57653-26120 Member, Rear Floor Cross, No.2
57654 57654-26060 Member, Rear Floor Cross, No.3
57654 57654-95J06 Member, Rear Floor Cross, No.3
57655 57655-26070 Member, Rear Floor Cross, No.4
57656 57656-95J03 Member, Rear Floor Croos, No.5
57657 57657-95J05 Crossmember, Rear Floor, No.6
57658 57658-95J01 Member, Rear Floor Cross, No.7
57665 57665-26020 Reinforcement, Rear Floor Crossmember, No.2
57666 57083-26010 Reinforcement, Rear Floor Crossmember, No.3
57667 57084-26010 Reinforcement, Rear Floor Crossmember, No.4
57668 57668-26020 Reinforcement, Rear Floor Crossmember, No.5
57688 57688-95J02 Reinforcement, Rear Floor Crossmember
57691 57691-95J02 Brace, Rear Floor No.2 Crossmember, Inner Rh
57692 57692-95J02 Brace, Rear Floor No.2 Crossmember, Inner Lh
57693 57693-95J01 Brace, Rear Floor No.6 Crossmember
57695 57695-95J01 Extension, Rear Floor Crossmember Rear Side, Rh
57696 57696-95J00 Extension, Rear Floor Crossmember Rear Side, Lh
57699 57699-95J01 Retainer, Fuel Tank Set Band
57749 57749-95J01 Reinforcement, Lateral Rod Bracket, No.2
57751 57751-95J01 Support, Rear Suspension Spring, Outer Rh
57767 57767-95J02 Retainer, Fuel Tank Band
57771 57771-95J00 Plate, Rear Spring, Rh
57773 57773-95J00 Reinforcement, Rear Spring
57774 57774-95J00 Reinforcement, Rear Spring, Lh
57799 57799-95J00 Gusset, Rear Floor Crossmember
57817 57817-95J11 Reinforcement, Belt Anchor, No.2
58022 58022-26180 Reinforcement Sub-Assy, Header Panel
58106 58106-95A00 Bracket Sub-Assy, Brake Tube, No.2
58194 58194-26010 Retainer, Engine Cover Hinge
58207 58207-26070 Cover Sub-Assy, Transmission Service Hole
58209 58209-95J01 Cover Sub-Assy, Battery Service Hole
58221 58221-26620 Panel, Header
58223 58223-95J01 Reinforcement, Header Panel, No.2
58248 58248-26010 Reinforcement, Header Panel, Upper
58266 58266-95J01 Bracket, Fuel Tube Clamp
58304 58304-95J74 Step Sub-Assy, Rear Floor, Lh
58304 58304-95N16 Step Sub-Assy, Rear Floor, Lh
58307 58307-95J15-E0 Cover Sub-Assy, Rear Floor Step
58307 58307-95J15-B0 Cover Sub-Assy, Rear Floor Step
58311 58311-26250 Pan, Rear Floor
58311 58311-2N550 Pan, Rear Floor
58311 58311-2N560 Pan, Rear Floor
58311 58311-2N570 Pan, Rear Floor
58315 58315-26081 Panel, Rear Floor, Front
58315 58315-26400 Panel, Rear Floor, Front
58346 58346-26010 Bracket, Rear Floor Heat Insulator, No.2
58348 58348-95J01 Cover, Rear Absorber Service Hole, Rh
58352 58352-26060 Bracket, Rear Floor Stay
58352 58352-26070 Bracket, Rear Floor Stay
58445 58445-95J01 Lock, Battery Service Hole Cover
58446 58446-95J02 Protector, Battery
58449 58449-95J00 Reinforcement, Rear Floor Pan, No.2 Lh
58451 58405-95J01 Cover, Air Cleaner Service Hole
58458 58458-95J01 Knob, Battery Service Hole Cover
58465 58465-26030 Packing, Transmission Service Hole Cover
58466 58327-26060 Silencer, Transmission Service Hole Cover, No.1
58475 58475-95J00 Packing, Inspection Hole Cover
58888 58888-95J00 Base, Cooling Box
58888 58888-95J01 Base, Cooling Box
58893 58893-95J03 Retainer, Rear Seat No.2, Rear Rh
58893 59363-26030 Retainer, Rear Seat No.2, Rear Rh
59209 59209-95J00 Cover Sub-Assy, Inspection Hole
59362 59306-26031 Retainer, Rear Seat, No.1 B
59362 59362-95J04 Retainer, Rear Seat, No.1 B
59363 59363-26130 Retainer, Rear Seat, No.1 C
59364 59364-95J03 Retainer, Rear Seat, No.1 D
59366 59366-95J06 Retainer, Rear Seat, No.2
59367 59367-26060 Retainer, Rear Seat, No.4
59367 59375-26020 Retainer, Rear Seat, No.4
59374 59374-95J05 Retainer, Seat Belt Anchor, No.3
91631 91631-B0614 BOLT WWASHER
9011906598 90119-06598 BOLT
9011906598 91631-A0618 New Genuine Part
9011908623 90119-08623 New Genuine Part
9011910281 90119-10281 New Genuine Part
9018904070 90189-04070 New Genuine Part
9090467033 90904-67033 Clip(For Deck Board No.1)
9095001687 90950-01687 New Genuine Part
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165160614 91651-60614 Bolt
9331116010 93311-16010 Screw
9354054014 93540-54014 SCREW
9356055020 93560-55020 SCREW
904670501801 90467-05018-01 Clip, Slide Door Trim Carpet
904670501801 90467-05018-22 New Genuine Part
