Search › Model › KZH120

KZH120

Toyota HIACE · 1993 · 4,996 parts · 264 categories

4,996 items

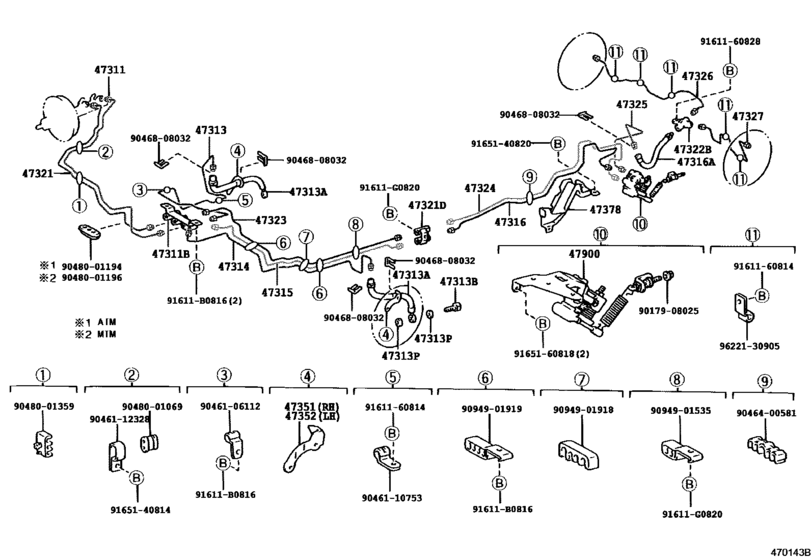

Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138) 44

#	OEM	Part name
47311	47311-2F020	Tube, Front Brake, No.1
47311	90904-12011	Way, No.1(For Front Brake Tube)
47313	47313-26200	Tube, Front Brake, No.3
47313	90947-02C03	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-26200	Tube, Front Brake, No.4
47315	47315-26140	Tube, Front Brake, No.5
47316	47316-26230	Tube, Front Brake, No.6
47316	96940-33307	Hose, Flexible(For Rear Brake Tube)
47321	47321-26680	Tube, Rear Brake, No.1
47321	90412-10166	Way, No.1(For Rear Brake Tube)
47322	90413-10147	Way, 3(For Rear Brake Tube)
47323	47323-26340	Tube, Rear Brake, No.3
47324	47324-26310	Tube, Rear Brake, No.4
47325	47325-26310	Tube, Rear Brake, No.5
47326	47326-26260	Tube, Rear Brake, No.6
47327	47327-26110	Tube, Rear Brake, No.7
47351	47351-26160	Bracket, Flexible Hose(For Front Rh)
47352	47352-26150	Bracket, Flexible Hose(For Front Lh)
47900	47900-26440	Valve Assy, Load Sensing W/spring
47900	47900-26441	Valve Assy, Load Sensing W/spring
91611	91611-B0816	Bolt
91611	91611-G0820	Bolt
9017908025	90179-08025	Nut, Cap(For Cylinder Head Cover)
9046106112	90461-06112	Clamp, Brake Tube, No.6
9046110753	90461-10753	New Genuine Part
9046112328	90461-12328	New Genuine Part
9046400581	90464-00581	New Genuine Part
9046808032	90468-08032	CLIP
9048001069	90480-01069	Grommet(For Brake Tube)
9048001194	90480-01194	New Genuine Part
9048001196	90480-01196	New Genuine Part
9048001359	90480-01359	New Genuine Part
9094901535	90949-01535	New Genuine Part
9094901918	90949-01918	New Genuine Part
9094901919	90949-01919	New Genuine Part
9161160814	91611-60814	Bolt
9161160828	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165140820	91651-40820	Bolt
9165160818	91651-60818	BOLTWWASHER
9622130905	96221-30905	CLAMP

OEM	Part name	Category
47311-2F020	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47313-26200	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47314-26200	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47315-26140	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47316-26230	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47321-26680	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47323-26340	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47324-26310	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47325-26310	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47326-26260	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47327-26110	Tube, Rear Brake, No.7	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47351-26160	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47352-26150	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47900-26440	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
47900-26441	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90080-11228	New Genuine Part	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90179-08025	Nut, Cap(For Cylinder Head Cover)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90412-10166	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90413-10147	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90461-06112	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90461-10753	New Genuine Part	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90461-12328	New Genuine Part	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90464-00581	New Genuine Part	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90468-08032	CLIP	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90480-01069	Grommet(For Brake Tube)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90480-01194	New Genuine Part	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90480-01196	New Genuine Part	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90480-01359	New Genuine Part	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90904-12011	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90947-02C03	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90949-01535	New Genuine Part	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90949-01918	New Genuine Part	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
90949-01919	New Genuine Part	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
91611-60814	Bolt	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
91611-B0816	Bolt	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
91611-G0820	Bolt	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
91651-40814	BOLT	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
91651-40820	Bolt	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
91651-60818	BOLTWWASHER	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
96221-30905	CLAMP	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
96940-33307	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1996 - ] (9308-9608)KZH106,116,126,138 ; (9608- )KZH12 #,138)
