KZH100

Toyota HIACE · 1993 · 7,541 parts · 261 categories
KZH100 ×

← Back to categories

7,541 items

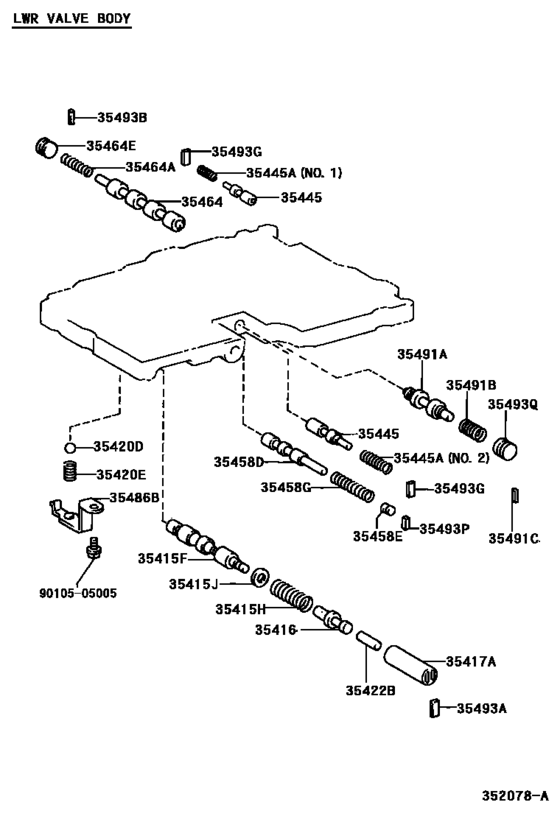

Valve Body & Oil Strainer (Atm) ([07.1999 - 08.2004] A340E,A340F (9907-0408)KZH10#,11#,120,13#) 47
#OEMPart name
35415 35415-30030 Valve, Primary Regulator
35415 35415-30050 Valve, Primary Regulator
35415 90501-14153 Spring, Compression (For Primary Regulator Valve)
35415 90501-16077 Spring, Compression (For Lock Up Relay Valve)
35415 90201-08021 Washer, Plate (For Pressure Regulator Valve)
35415 90201-08067 Washer (For Primary Regulator Valve)
35416 35416-24020 Plunger, Primary Regulator Valve, No.1
35416 35416-30050 Plunger, Primary Regulator Valve, No.1
35417 35417-24020 Sleeve, Primary Regulator Valve
35417 35417-30070 Sleeve, Primary Regulator Valve
35420 90360-08003 Ball (For Lower Valve Body)
35420 90501-12142 Spring (For Lower Valve Body)
35422 35422-50011 Plunger, Primary Regulator Valve, No.2
35445 35445-50010 Valve, Low Modulator
35445 90501-08088 Spring, Compression (For Low Modulator Valve)
35445 90501-08169 Spring, Compression (For Low Modulator Valve)
35445 90501-12158 Spring, Compression (For Low Modulator Valve)
35458 35458-24010 Valve, Cut Back
35458 35458-30030 Valve, Cut Back
35458 90339-04002 Plug(For Low-High Shift Valve)
35458 90339-04030 Plug (For Solenoid Modulator Valve)
35458 90339-04056 Plug (For Cut Back Valve)
35458 90501-06026 Spring, Compression (For Cut Back Valve)
35458 90501-07113 Spring, Compression (For Cut Back Valve)
35464 35464-12030 Valve, 1-2 Shift
35464 90501-09053 Spring, Compression (For 2-3 Shift Valve)
35464 90339-05014 Plug, Low-High Signal Valve
35486 35486-30020 Seat, Pressure Relief Valve Spring
35491 35491-30020 Valve, Accumulator Control, No.1
35491 35491-60050 Valve, Accumulator Control, No.1
35491 90501-08077 Spring, Compression (For Accumulator Control Valve No.1)
35491 90501-08191 Spring, Compression (For Accumulator Control Valve No.1)
35491 90282-03016 Key, Straight (For Lock Up Relay Valve Plug)
35493 35493-30020 Seat, Valve (For Overdrive Clutch Exhaust Valve)
35493 35493-50010 Seat, Primary Regulator Valve Plug
35493 35493-30090 Seat, Shift Valve Plug, No.3
35493 35493-24010 Seat, Shift Valve Plug(For Low Modulator Valve)
35493 35493-30080 Seat, 1-2 Shift Valve Plug
35493 35493-30100 Key, Straight (For Solenoid Relay Valve)
35493 90339-05028 Plug (For Accumulator Control Valve No.1)
91511 91511-C0622 Strainer Bolt
91511 91511-C0635 BOLT, FLANGE
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010505009 90105-05009 New Genuine Part
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9011905023 90119-05023 New Genuine Part
9011905035 90119-05035 Bolt (For Pressure Regulator Valve No.2)
