KZH100

Toyota HIACE · 1993 · 7,541 parts · 261 categories
KZH100 ×

← Back to categories

7,541 items

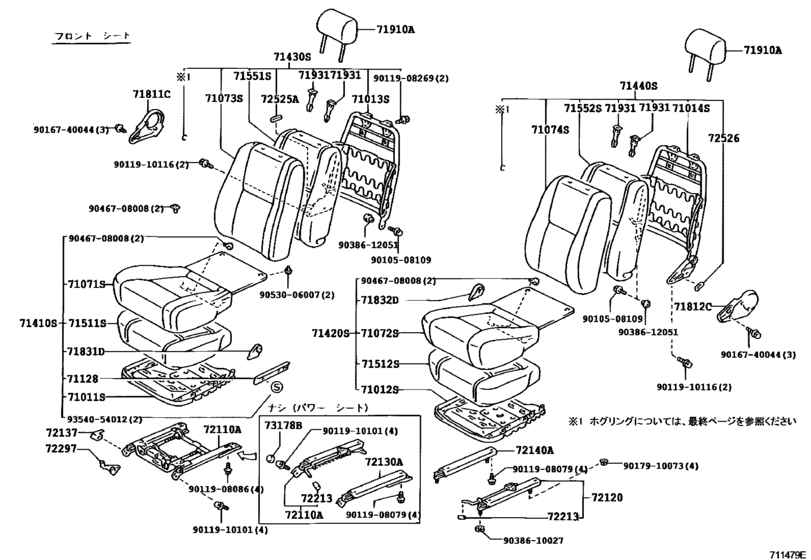

Seat & Seat Track ([08.1989 - 07.1999] ﾌﾛﾝﾄ ｼ-ﾄ (8908-9907)KZH10#,LH100,107,RZH100,101..08S) 221
#OEMPart name
71011 71011-95J06 Frame Sub-Assy, Front Seat Cushion, Rh
71012 71012-26010 Frame Sub-Assy, Front Seat Cushion, Lh
71013 71013-26010 Frame Sub-Assy, Front Seat Back, Rh
71014 71014-26011 Frame Sub-Assy, Front Seat Back, Lh
71071 71071-26120-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26120-B1 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26120-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26120-E1 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26121-B2 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26121-E2 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26122-B3 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26122-E3 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26151-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26152-E1 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26153-E2 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26154-E3 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26155-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26156-E4 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26157-E5 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26158-E7 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26620-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26620-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-26011-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26011-B1 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26011-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26011-E1 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26012-B2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26012-E2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26013-B3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26013-E3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26171-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26172-E1 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26173-E2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26174-E3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26175-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26176-E4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26177-E5 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26178-E5 New Genuine Part
71072 71072-26310-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26310-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-26131-B1 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26131-B2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26131-E0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26131-E1 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26132-B3 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26132-E2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26133-B4 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26133-E3 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26202-B1 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26202-E2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26231-E0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26232-E1 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26233-E2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26234-E3 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26235-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26236-E4 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26237-E5 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26710-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26710-E0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26720-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26720-E0 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-26011-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26011-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26011-E0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26011-E1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26012-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26012-E2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26013-B3 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26013-E3 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26311-E0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26312-E1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26313-E2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26314-E3 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26315-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26316-E4 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26317-E5 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26318-E7 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26630-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26630-E0 Cover, Front Seat Back, Lh(For Separate Type)
71128 71128-95J08 Plate, Front Seat Cushion Cover Set, Outside Lh
71128 71128-95J08-19 Plate, Front Seat Cushion Cover Set, Outside Lh
71128 71128-95J08-E0 Plate, Front Seat Cushion Cover Set, Outside Lh
71410 71410-26110-B0 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26110-E0 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26110-E4 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26111-B4 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26111-E5 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26112-B5 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26112-B8 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26112-E8 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26112-L2 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26155-B0 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26156-E0 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26157-E1 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26157-E3 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26620-B0 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26620-E0 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-26011-B0 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26011-E0 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26012-B4 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26012-E5 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26013-B5 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26013-B8 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26013-E8 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26013-L2 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26165-B0 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26166-E0 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26167-E1 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26510-B0 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26510-E0 Cushion Assy, Front Seat, Lh (For Separate Type)
71430 71401-26021-B1 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26021-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26021-E2 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26022-B3 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26022-E3 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26023-B4 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26023-B5 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26023-E5 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26023-E7 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26102-B4 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26102-E5 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26275-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26276-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26277-E1 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26340-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26340-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26390-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71401-26390-E0 Back Assy, Front Seat, Rh(For Separate Type)
71440 71402-26011-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26011-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26011-E4 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26012-B4 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26012-E5 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26013-B5 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26013-B8 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26013-E8 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26013-L2 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26255-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26256-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26257-E1 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26257-E3 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26280-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71402-26280-E0 Back Assy, Front Seat, Lh(For Separate Type)
71511 71511-26010 Pad, Front Seat Cushion, Rh(For Separate Type)
71512 71502-26060 Pad, Front Seat Cushion, Lh (For Separate Type)
71512 71512-26011 Pad, Front Seat Cushion, Lh (For Separate Type)
71551 71551-26030 Pad, Front Seat Back, Rh(For Separate Type)
71552 71551-26011 Pad, Front Seat Back, Lh(For Separate Type)
71811 71811-26070-B0 Cover, Reclining Adjuster, Rh
71811 71811-26070-E0 Cover, Reclining Adjuster, Rh
71811 71811-26080-B0 Cover, Reclining Adjuster, Rh
71811 71811-26080-E0 Cover, Reclining Adjuster, Rh
71811 71811-95J00-B0 Cover, Reclining Adjuster, Rh
71811 71811-95J00-E0 Cover, Reclining Adjuster, Rh
71812 71812-26060-B0 Cover, Reclining Adjuster, Lh
71812 71812-26060-E0 Cover, Reclining Adjuster, Lh
71812 71812-26070-B0 Cover, Reclining Adjuster, Lh
71812 71812-26070-E0 Cover, Reclining Adjuster, Lh
71812 71812-95J00-B0 Cover, Reclining Adjuster, Lh
71812 71812-95J00-E0 Cover, Reclining Adjuster, Lh
71831 71831-95J00-B0 Cover, Front Seat Hinge, Rh
71831 71831-95J00-E0 Cover, Front Seat Hinge, Rh
71832 71832-95J01-B0 Cover, Front Seat Hinge, Lh
71832 71832-95J01-E0 Cover, Front Seat Hinge, Lh
71910 71910-26050-B0 Headrest Assy, Front Seat
71910 71910-26050-E0 Headrest Assy, Front Seat
71910 71910-26051-B1 Headrest Assy, Front Seat
71910 71920-26010-B0 Headrest Assy, Front Seat
71910 71910-26051-E1 Headrest Assy, Front Seat
71910 71920-26010-E0 Headrest Assy, Front Seat
71910 71910-26052-B2 Headrest Assy, Front Seat
71910 71910-26052-E2 Headrest Assy, Front Seat
71910 71910-26053-B3 Headrest Assy, Front Seat
71910 71910-26053-E3 Headrest Assy, Front Seat
71910 71910-26071-E0 Headrest Assy, Front Seat
71910 71910-26072-E1 Headrest Assy, Front Seat
71910 71910-26073-E2 Headrest Assy, Front Seat
71910 71910-26074-E4 Headrest Assy, Front Seat
71910 71910-26075-B1 Headrest Assy, Front Seat
71910 71910-26076-E5 Headrest Assy, Front Seat
71910 71920-26011-B1 Headrest Assy, Front Seat
71910 71920-26011-E1 Headrest Assy, Front Seat
71910 71920-26012-B2 Headrest Assy, Front Seat
71910 71920-26012-E2 Headrest Assy, Front Seat
71910 71920-26041-B1 Headrest Assy, Front Seat
71910 71920-26042-E3 Headrest Assy, Front Seat
71931 71930-26010-B0 Support, Front Seat Headrest
71931 71930-26010-B3 Support, Front Seat Headrest
71931 71930-26010-B1 Support, Front Seat Headrest
71931 71930-26010-E0 Support, Front Seat Headrest
71931 71930-26010-E1 Support, Front Seat Headrest
71931 71931-26010-B0 Support, Front Seat Headrest
71931 71931-26010-B3 Support, Front Seat Headrest
71931 71931-26010-B1 Support, Front Seat Headrest
71931 71931-26010-E0 Support, Front Seat Headrest
71931 71931-26010-E1 Support, Front Seat Headrest
72110 72110-95J05 Track Assy, Front Seat, Outer Rh
72110 72110-95J07 Track Assy, Front Seat, Outer Rh
72120 72120-26010 Track Assy, Front Seat, Outer Lh
72130 72130-26010 Track Assy, Front Seat, Inner Rh
72130 72130-26020 Track Assy, Front Seat, Inner Rh
72137 72137-26040-B0 Cover, Seat Track, Outer Rh
72137 72137-26040-E0 Cover, Seat Track, Outer Rh
72140 72140-95J02 Track Assy, Front Seat,inner Lh
72213 72213-12040 Knob, Seat Track Adjusting Handle
72525 72525-95J01-B0 Handle, Reclining Adjuster Release, Rh
72525 72525-95J01-E0 Handle, Reclining Adjuster Release, Rh
9010508109 90105-08109 New Genuine Part
9011908079 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908086 90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908269 90119-08269 Bolt(For Drive Plate & Torque Converter Setting)
9011910101 90119-10101 BOLT
9011910116 90119-10116 New Genuine Part
9011910116 90119-10229 BOLT
9016740044 90167-40044 BOLT
9017910073 90179-10073 New Genuine Part
9038610027 90386-10027 New Genuine Part
9038612051 90386-12051 Bush (For Front Seat Hinge Pin)
9046708008 90467-08008 Clip, Step Plate Cover
9053006007 90530-06007 New Genuine Part
9354054012 93540-54012 Screw, Headlamp
Source
Public OEM parts-catalog data
Variants
1 / 8
Category
261
Collected
2026-08-03
