KUN60

Toyota FORTUNER · 2005 · 4,057 parts · 227 categories

4,057 items

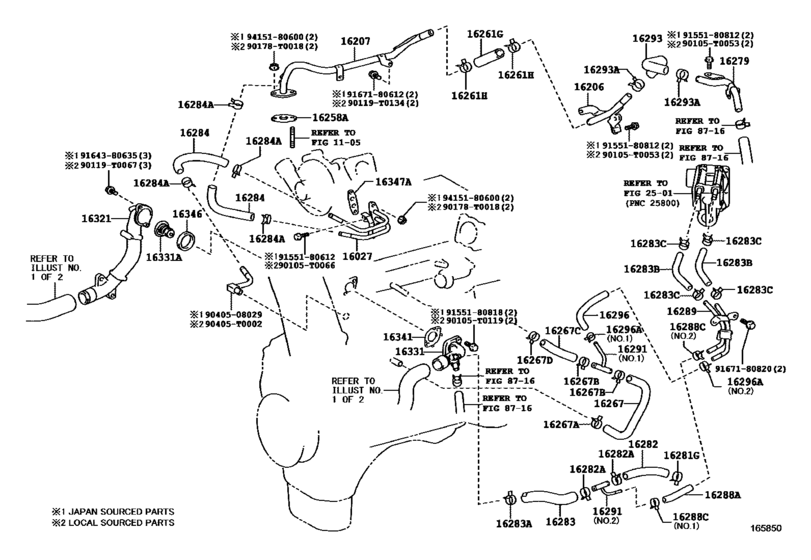

Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA) 46

#	OEM	Part name
16027	16027-0L020	Pipe Sub-Assy, Turbo Water, No.1
16206	16206-30101	Pipe Sub-Assy, Water By-Pass
16207	16207-30180	Pipe Sub-Assy, Water By-Pass, No.2
16258	16258-67010	Gasket(For Heater Return)
16261	16261-30060	Hose, Water By-Pass, No.1
16261	90466-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)
16267	16267-30120	Hose, Water By-Pass, No.3
16267	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
16267	90467-19022	Clip(For Ventilation Hose No.2)
16267	16281-30140	Hose, Water By-Pass, No.4
16279	16208-30020	Pipe, Water By-Pass, No.3
16282	16282-30050	Hose, Water By-Pass, No.5
16283	16283-30041	Hose, Water By-Pass, No.6
16283	99555-10080	Hose, Water By-Pass, No.4
16283	96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16284	16284-30070	Hose, Turbo Water, No.1
16288	16294-30030	Hose(For Water By-Pass Pipe No.4)
16288	90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)
16289	16289-30011	Pipe, Water By-Pass, No.5
16291	16291-30020	Joint, Water Hose
16291	16291-30030	Joint, Water Hose
16293	16293-30031	Hose, Water By-Pass, No.10
16296	16296-30020	Hose, Water By-Pass, No.8
16321	16321-30040	Inlet, Water
16331	16304-30010	Outlet, Water
16331	90916-03118	Thermostat - *WAX 82-95C
16341	16341-30020	Gasket, Water Outlet
16346	16346-0K010	Gasket, Thermostat
16346	16346-67010	Gasket, Thermostat
16346	16346-30010	Gasket, Thermostat
16347	16347-30010	Gasket, Water By-Pass
90105	90105-T0053	New Genuine Part
90105	90105-T0066	BOLT FLANGE
90105	90105-T0119	BOLT FLANGE
90119	90119-T0067	New Genuine Part
90119	90119-T0134	BOLT WWASHER
90178	90178-T0018	NUT FLANGE
90405	90405-T0002	New Genuine Part
9040508029	90405-08029	Union(For Turbo Water Hose No.2)
9155180612	91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)
9155180812	91551-80812	BOLT FLANGE
9155180818	91551-80818	Bolt, Union(For Clutch Master Cylinder)
9164380635	91643-80635	New Genuine Part
9167180612	91671-80612	Bolt
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
16027-0L020	Pipe Sub-Assy, Turbo Water, No.1	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16206-30101	Pipe Sub-Assy, Water By-Pass	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16207-30180	Pipe Sub-Assy, Water By-Pass, No.2	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16208-30020	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16258-67010	Gasket(For Heater Return)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16261-30060	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16267-30120	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16281-30140	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16282-30050	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16283-30041	Hose, Water By-Pass, No.6	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16284-30070	Hose, Turbo Water, No.1	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16289-30011	Pipe, Water By-Pass, No.5	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16291-30020	Joint, Water Hose	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16291-30030	Joint, Water Hose	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16293-30031	Hose, Water By-Pass, No.10	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16294-30030	Hose(For Water By-Pass Pipe No.4)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16296-30020	Hose, Water By-Pass, No.8	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16304-30010	Outlet, Water	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16321-30040	Inlet, Water	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16341-30020	Gasket, Water Outlet	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16346-0K010	Gasket, Thermostat	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16346-30010	Gasket, Thermostat	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16346-67010	Gasket, Thermostat	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
16347-30010	Gasket, Water By-Pass	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90105-T0053	New Genuine Part	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90105-T0066	BOLT FLANGE	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90105-T0119	BOLT FLANGE	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90119-T0067	New Genuine Part	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90119-T0134	BOLT WWASHER	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90178-T0018	NUT FLANGE	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90405-08029	Union(For Turbo Water Hose No.2)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90405-T0002	New Genuine Part	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90466-21001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90467-19022	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
90916-03118	Thermostat - *WAX 82-95C	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
91551-80812	BOLT FLANGE	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
91551-80818	Bolt, Union(For Clutch Master Cylinder)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
91643-80635	New Genuine Part	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
91671-80612	Bolt	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)
99555-10080	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT..IND,LA)

Source: Public OEM parts-catalog data
Variants: 2 / 30
Category: 227
Collected: 2026-08-03
