Search › Model › KUN60

KUN60

Toyota FORTUNER · 2005 · 4,057 parts · 227 categories

4,057 items

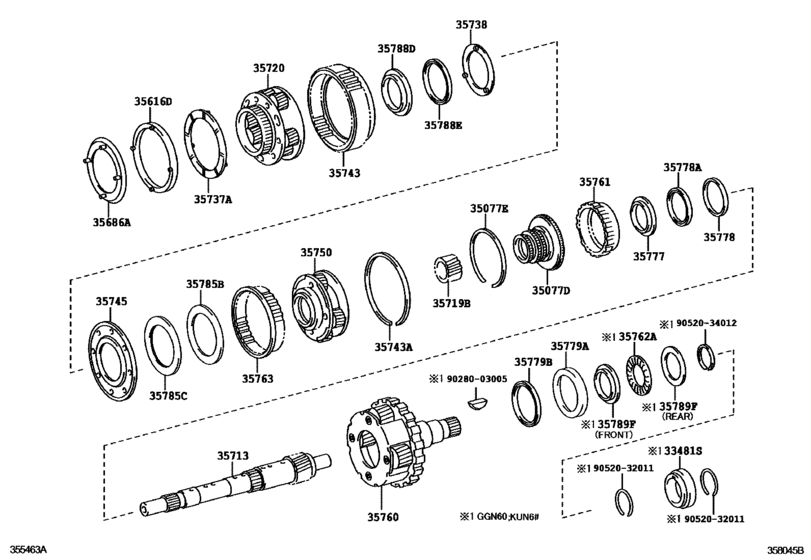

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC) 43

#	OEM	Part name
33481	33481-34020	Gear, Speedometer Drive (Atm)
35077	35077-60010	Flange Sub-Assy, Rr Planetary Ring Gear
35077	90520-99073	Ring, Snap (For Rear Planetary Ring Gear Flange)
35616	35616-60010	Washer, Clutch Drum Thrust
35686	35686-60010	Washer, Clutch Drum Thrust, No.2
35713	35713-60090	Shaft, Intermediate
35719	35719-60050	Gear, Planetary Sun
35720	35720-60070	Gear Assy, Front Planetary
35737	35737-60030	Washer, Planetary Carrier Thrust, No.1
35738	35738-60030	Washer, Planetary Carrier Thrust, No.2
35743	35743-60060	Gear, Front Planetary Ring
35743	90520-99076	Ring, Shaft Snap (For Front Planetary Ring Gear)
35745	35745-60010	Flange, Front Planetary Ring Gear
35750	35750-60010	Gear Assy, Center Planetary
35760	35760-71020	Gear Assy, Rear Planetary
35761	35761-60040	Gear, Rear Planetary Ring
35762	90374-36001	Bearing, Thrust Needle Roller (For Rear Planetary Flange)
35763	35763-60020	Gear, Center Planetary Ring
35777	35777-60010	Race, Thrust Bearing, No.7
35778	35778-60010	Race, Thrust Bearing, No.8
35778	90374-32010	Bearing, Thrust Needle Roller
35779	35779-60011	Race, Thrust Bearing, No.9
35779	90374-43007	Bearing, Thrust Needle Roller
35785	35785-60010	Race, Thrust Bearing, No.4
35785	90374-55004	Bearing, Thrust Needle Roller
35788	35788-60010	Race, Thrust Bearing, No.3
35788	90374-44005	Bearing, Thrust Needle Roller
35789	35789-35060	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-35070	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-35080	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-35090	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-35100	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-35110	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-50070	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-50080	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-50090	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-50100	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-50110	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-50120	Race, Thrust Bearing (For Rear Planetary Flange)
35789	35789-50130	Race, Thrust Bearing (For Rear Planetary Flange)
9028003005	90280-03005	Key, Oil Pump Drive Shaft
9052032011	90520-32011	Ring, Dust Cover Set
9052034012	90520-34012	Ring, Shaft Snap (For Gear Thrust Washer)

OEM	Part name	Category
33481-34020	Gear, Speedometer Drive (Atm)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35077-60010	Flange Sub-Assy, Rr Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35616-60010	Washer, Clutch Drum Thrust	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35686-60010	Washer, Clutch Drum Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35713-60090	Shaft, Intermediate	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35719-60050	Gear, Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35720-60070	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35737-60030	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35738-60030	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35743-60060	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35745-60010	Flange, Front Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35750-60010	Gear Assy, Center Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35760-71020	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35761-60040	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35763-60020	Gear, Center Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35777-60010	Race, Thrust Bearing, No.7	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35778-60010	Race, Thrust Bearing, No.8	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35779-60011	Race, Thrust Bearing, No.9	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35785-60010	Race, Thrust Bearing, No.4	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35788-60010	Race, Thrust Bearing, No.3	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-35060	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-35070	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-35080	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-35090	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-35100	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-35110	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-50070	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-50080	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-50090	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-50100	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-50110	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-50120	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
35789-50130	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
90280-03005	Key, Oil Pump Drive Shaft	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
90374-32010	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
90374-36001	Bearing, Thrust Needle Roller (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
90374-43007	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
90374-44005	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
90374-55004	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
90520-32011	Ring, Dust Cover Set	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
90520-34012	Ring, Shaft Snap (For Gear Thrust Washer)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
90520-99073	Ring, Snap (For Rear Planetary Ring Gear Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
90520-99076	Ring, Shaft Snap (For Front Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2011 - ] A750E,A750F (1107- )5FC)
