Search › Model › KUN60

KUN60

Toyota FORTUNER · 2005 · 4,057 parts · 227 categories

4,057 items

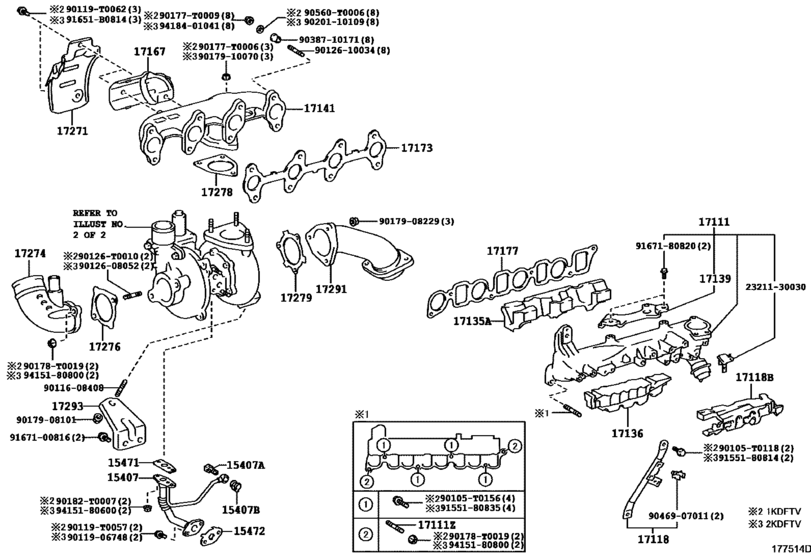

Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT) 53

#	OEM	Part name
15407	15407-30120	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30130	Pipe Sub-Assy, Turbo Oil Inlet
15407	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90904-30004	Gasket(For Turbo Oil Inlet Pipe)
15471	15471-30011	Gasket, Turbo Oil Inlet
15472	15472-30010	Gasket, Turbo Oil Outlet, No.1
17111	17101-30120	Manifold, Intake
17111	90126-08052	Bolt, Stud(For Oil Pan)
17118	17118-30170	Stay, Manifold
17118	17853-30020	Insulator, Intake Manifold
17135	17135-30020	Insulator, Intake Manifold, No.1
17136	17136-30030	Insulator, Intake Manifold, No.2
17139	17139-30030	Stay, Manifold, No.2
17141	17141-30060	Manifold, Exhaust
17167	17167-30020	Insulator, Exhaust Manifold Heat, No.1
17173	17173-30030	Gasket, Exhaust Manifold To Head
17177	17177-30011	Gasket, Intake Manifold To Head, No.1
17271	17271-0L020	Insulator, Turbo, No.1
17274	17274-30020	Elbow, Compressor Inlet
17276	17276-67010	Gasket, Compressor Inlet
17278	17278-67010	Gasket, Turbo To Exhaust Manifold
17279	17279-30031	Gasket, Turbine Outlet Elbow
17291	17291-0L060	Elbow, Turbine Outlet
17293	17293-0L050	Stay, Turbocharger
90105	90105-T0118	BOLT FLANGE
90105	90105-T0156	New Genuine Part
90119	90119-T0057	New Genuine Part
90119	90119-T0062	BOLTWWSH
90126	90126-T0010	New Genuine Part
90177	90177-T0006	Nut, Exhaust Pipe Set Stud Bolt
90177	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
90177	90177-T0009	New Genuine Part
90178	90178-T0019	Nut (For Connecting Rod Swivel)
90182	90182-T0007	New Genuine Part
90560	90560-T0006	New Genuine Part
91651	91651-B0814	Bolt with washer
91651	90119-A0109	New Genuine Part
2321130030	23211-30030	Bracket, Wire
9011608408	90116-08408	BOLT STUD
9011906748	90119-06748	BOLT WWASHER
9012610034	90126-10034	Bolt, Stud(For Exhaust Manifold, Rh)
9017908101	90179-08101	NUT
9017908229	90179-08229	NUT
9020110109	90201-10109	WASHER PLATE
9038710171	90387-10171	Collar(For Exhaust Manifold)
9046907011	90469-07011	Clamp No.1 (For Windseield Washer)
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180835	91551-80835	Bolt (For Front Oil Pump Setting)
9167100816	91671-00816	New Genuine Part
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9415180800	94151-80800	Nut (For Transmission Control Cable)
9418401041	94184-01041	Nut

OEM	Part name	Category
15407-30120	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
15407-30130	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
15471-30011	Gasket, Turbo Oil Inlet	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
15472-30010	Gasket, Turbo Oil Outlet, No.1	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17101-30120	Manifold, Intake	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17118-30170	Stay, Manifold	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17135-30020	Insulator, Intake Manifold, No.1	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17136-30030	Insulator, Intake Manifold, No.2	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17139-30030	Stay, Manifold, No.2	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17141-30060	Manifold, Exhaust	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17167-30020	Insulator, Exhaust Manifold Heat, No.1	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17173-30030	Gasket, Exhaust Manifold To Head	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17177-30011	Gasket, Intake Manifold To Head, No.1	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17271-0L020	Insulator, Turbo, No.1	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17274-30020	Elbow, Compressor Inlet	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17276-67010	Gasket, Compressor Inlet	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17278-67010	Gasket, Turbo To Exhaust Manifold	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17279-30031	Gasket, Turbine Outlet Elbow	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17291-0L060	Elbow, Turbine Outlet	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17293-0L050	Stay, Turbocharger	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
17853-30020	Insulator, Intake Manifold	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
23211-30030	Bracket, Wire	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90105-T0118	BOLT FLANGE	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90105-T0156	New Genuine Part	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90116-08408	BOLT STUD	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90119-06748	BOLT WWASHER	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90119-A0109	New Genuine Part	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90119-T0057	New Genuine Part	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90119-T0062	BOLTWWSH	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90126-08052	Bolt, Stud(For Oil Pan)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90126-10034	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90126-T0010	New Genuine Part	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90177-T0006	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90177-T0009	New Genuine Part	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90178-T0019	Nut (For Connecting Rod Swivel)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90179-08101	NUT	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90179-08229	NUT	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90182-T0007	New Genuine Part	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90201-10109	WASHER PLATE	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90387-10171	Collar(For Exhaust Manifold)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90469-07011	Clamp No.1 (For Windseield Washer)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90560-T0006	New Genuine Part	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
90904-30004	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
91551-80835	Bolt (For Front Oil Pump Setting)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
91651-B0814	Bolt with washer	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
91671-00816	New Genuine Part	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
94151-80800	Nut (For Transmission Control Cable)	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
94184-01041	Nut	Manifold ([04.2012 - ] (1204- )1KDFTV,2KDFTV..KUN51,60..5FC..HDCR,IA RT)
