Search › Model › KUN60

KUN60

Toyota FORTUNER · 2005 · 4,057 parts · 227 categories
KUN60 ×

← Back to categories

4,057 items

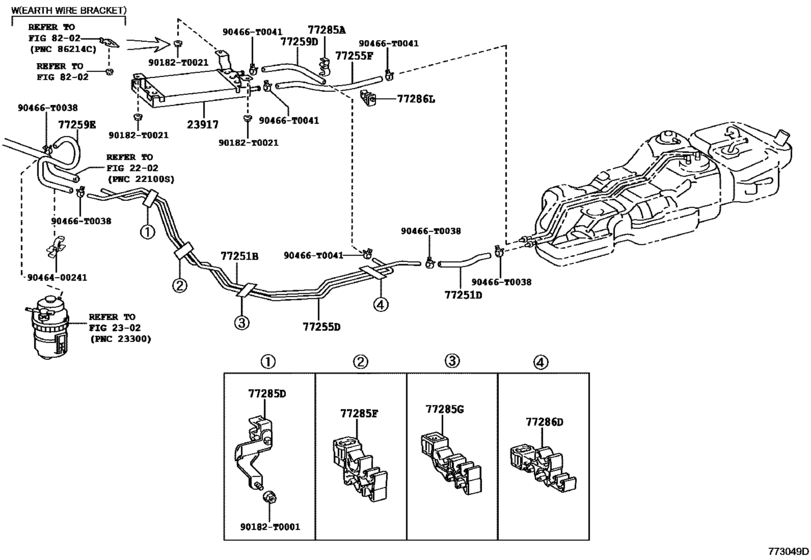

Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(W/FUEL COOLER) (1107- )KUN5#,61 ; (1107- )KUN60..SUVW ; ( 1107- )KUN60..IDSUV..IDN,PHL) 18
#OEMPart name
23917 23917-30011 Cooler, Fuel
77251 77251-0K060 Tube, Fuel Main
77251 95338-10018 Hose, Fuel, No.1 (For Main Tube, No.1) - FUEL, NO.1(FOR FUEL MAIN TUBE)
77255 77255-0K090 Tube, Fuel Return
77255 95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)
77259 77259-71060 Hose, Fuel, No.1 - FUEL, NO.2 (FOR RETURN TUBE, NO.2)
77259 77259-0K060 Hose, Fuel
77285 77285-0K200 Clamp, Fuel Hose - FUEL RETURN AND MAIN TUBE
77285 77285-0K030 Clamp, Fuel Tube, No.1
77285 77285-0K040 Clamp, Fuel Tube, No.1
77285 77285-0K050 Clamp, Fuel Tube, No.1
77286 77286-0K090 Clamp, Fuel Tube, No.2
77286 77286-0K070 Clamp, Fuel Tube, No.5
90182 90182-T0001 New Genuine Part
90182 90182-T0021 New Genuine Part
90466 90466-T0038 Clip(For Air Hose No.3)
90466 90466-T0041 Clip(For Fuel Vapor Feed Hose, No.2)
9046400241 90464-00241 New Genuine Part
Source
Public OEM parts-catalog data
Variants
2 / 30
Category
227
Collected
2026-08-03
