KUN51

Toyota FORTUNER · 2005 · 4,905 parts · 259 categories

4,905 items

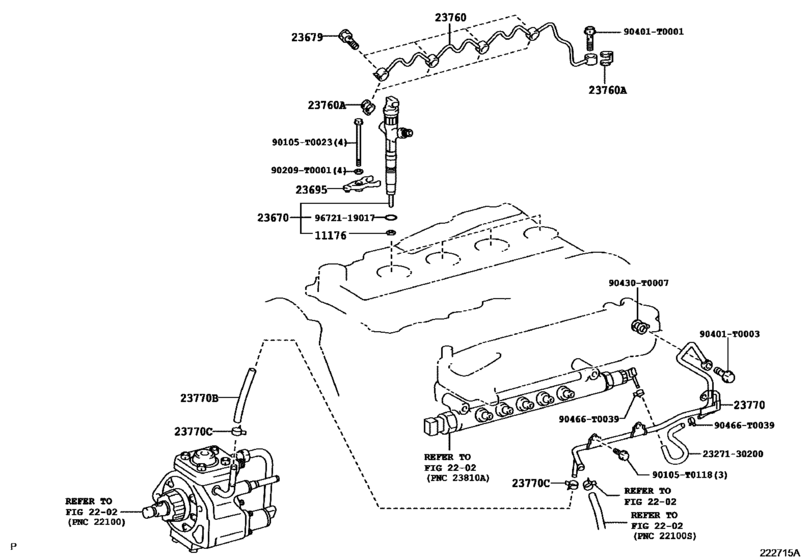

Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND) 20

#	OEM	Part name
11176	11176-0L011	Seat, Injection Nozzle
23670	23670-09350	Injector Assy
23679	23679-0L010	Screw, Injector Follow
23695	23695-0L010	Clamp, Nozzle Holder, No.1
23695	23695-30011	Clamp, Nozzle Holder, No.1
23760	23760-0L010	Pipe Assy, Nozzle Leakage
23760	90430-T0008	Gasket
23770	23770-0L030	Pipe Assy, Nozzle Leakage, No.2
23770	95337-06020	Hose, Differential Pressure Control
23770	90466-T0022	Clamp Or Clip(For Fuel Hose Set)
90105	90105-T0023	BOLTFLANGE
90105	90105-08374	BOLT FLANGE
90105	90105-T0118	BOLT FLANGE
90209	90209-T0001	WASHER
90401	90401-T0001	BOLT UNION
90401	90401-T0003	New Genuine Part
90430	90430-T0007	GASKET
90466	90466-T0039	New Genuine Part
2327130200	23271-30200	Hose, Fuel, No.1 - FUEL, NO.2
9672119017	96721-19017	O-Ring

OEM	Part name	Category
11176-0L011	Seat, Injection Nozzle	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
23271-30200	Hose, Fuel, No.1 - FUEL, NO.2	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
23670-09350	Injector Assy	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
23679-0L010	Screw, Injector Follow	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
23695-0L010	Clamp, Nozzle Holder, No.1	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
23695-30011	Clamp, Nozzle Holder, No.1	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
23760-0L010	Pipe Assy, Nozzle Leakage	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
23770-0L030	Pipe Assy, Nozzle Leakage, No.2	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
90105-08374	BOLT FLANGE	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
90105-T0023	BOLTFLANGE	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
90105-T0118	BOLT FLANGE	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
90209-T0001	WASHER	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
90401-T0001	BOLT UNION	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
90401-T0003	New Genuine Part	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
90430-T0007	GASKET	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
90430-T0008	Gasket	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
90466-T0022	Clamp Or Clip(For Fuel Hose Set)	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
90466-T0039	New Genuine Part	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
95337-06020	Hose, Differential Pressure Control	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
96721-19017	O-Ring	Injection Nozzle ([10.2011 - ] EURO 4 REGULATION (1110-1210)1KDFTV..KUN51..4FC..LA ; (1110- )1 KDFTV..KUN51..IND ; (1110- )1KDF TV..KUN51..SUVW.. 5F..LA ; (1201- )1KDFTV..KUN61..IND)
