KUN51

Toyota FORTUNER · 2005 · 4,905 parts · 259 categories

4,905 items

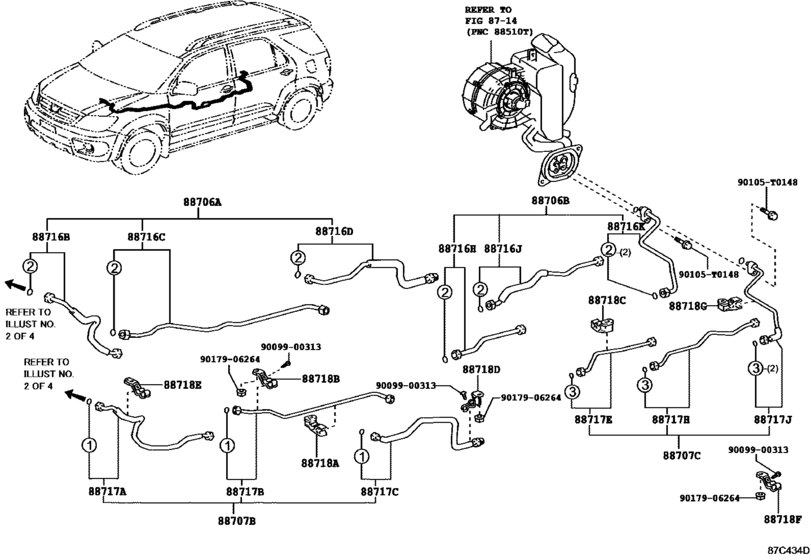

Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA) 24

#	OEM	Part name
88706	88706-0K220	Tube Sub-Assy, Liquid, A
88706	88706-0K190	Tube Sub-Assy, Liquid, B
88707	88707-0K580	Tube Sub-Assy, Suction, B
88707	88707-0K530	Tube Sub-Assy, Suction, C
88716	88716-0KL20	Pipe, Cooler Refrigerant Liquid, B
88716	88716-0KF80	Pipe, Cooler Refrigerant Liquid, C
88716	88716-0KF90	Pipe, Cooler Refrigerant Liquid, D
88716	88716-0KG00	Pipe, Cooler Refrigerant Liquid, H
88716	88716-0KG10	Pipe, Cooler Refrigerant Liquid, J
88716	88716-0KG20	Pipe, Cooler Refrigerant Liquid, K
88717	88717-0KE50	Pipe, Cooler Refrigerant Suction, A
88717	88717-0KC50	Pipe, Cooler Refrigerant Suction, B
88717	88717-0KC60	Pipe, Cooler Refrigerant Suction, C
88717	88717-0KC70	Pipe, Cooler Refrigerant Suction, E
88717	88717-0KC80	Ring, O(For Cooler Refrigerant Suction Pipe)
88717	88717-0KC90	Pipe, Cooler Refrigerant Suction, J
88718	88718-0KD70	Clamp(For Cooler Refrigerant Pipe), No.1
88718	88718-0KD60	Clamp(For Cooler Refrigerant Pipe), No.2
88718	88718-0KD90	Clamp(For Cooler Refrigerant Pipe), No.3
88718	88718-0KD80	Clamp(For Cooler Refrigerant Pipe), No.4
88718	88718-0KG60	Clamp(For Cooler Refrigerant Pipe), No.5
90105	90105-T0148	New Genuine Part
9009900313	90099-00313	New Genuine Part
9017906264	90179-06264	NUT, WWASHER

OEM	Part name	Category
88706-0K190	Tube Sub-Assy, Liquid, B	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88706-0K220	Tube Sub-Assy, Liquid, A	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88707-0K530	Tube Sub-Assy, Suction, C	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88707-0K580	Tube Sub-Assy, Suction, B	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88716-0KF80	Pipe, Cooler Refrigerant Liquid, C	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88716-0KF90	Pipe, Cooler Refrigerant Liquid, D	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88716-0KG00	Pipe, Cooler Refrigerant Liquid, H	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88716-0KG10	Pipe, Cooler Refrigerant Liquid, J	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88716-0KG20	Pipe, Cooler Refrigerant Liquid, K	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88716-0KL20	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88717-0KC50	Pipe, Cooler Refrigerant Suction, B	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88717-0KC60	Pipe, Cooler Refrigerant Suction, C	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88717-0KC70	Pipe, Cooler Refrigerant Suction, E	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88717-0KC80	Ring, O(For Cooler Refrigerant Suction Pipe)	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88717-0KC90	Pipe, Cooler Refrigerant Suction, J	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88717-0KE50	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88718-0KD60	Clamp(For Cooler Refrigerant Pipe), No.2	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88718-0KD70	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88718-0KD80	Clamp(For Cooler Refrigerant Pipe), No.4	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88718-0KD90	Clamp(For Cooler Refrigerant Pipe), No.3	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
88718-0KG60	Clamp(For Cooler Refrigerant Pipe), No.5	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
90099-00313	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
90105-T0148	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
90179-06264	NUT, WWASHER	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] REAR (1110- )SUVW..CO,LA)
