KUN51

Toyota FORTUNER · 2005 · 4,905 parts · 259 categories

4,905 items

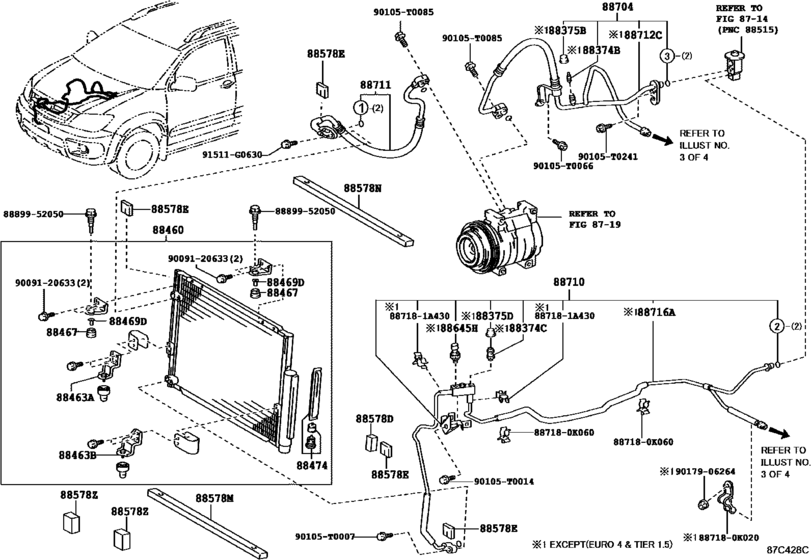

Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART) 26

#	OEM	Part name
88460	88460-0K150	Condenser Assy, Cooler
88463	88463-0K470	Bracket, Cooler Condenser, No.3
88463	88463-0K460	Bracket, Cooler Condenser, No.2
88467	88467-12180	Cushion, Cooler Condenser, No.1
88469	88469-52010	Collar, Condenser Bracket, No.1
88474	88474-17010	Dryer, Cooler
88578	88578-0K230	Packing, Cooler Pipe, No.1
88578	88578-0K220	Packing, Cooler Pipe, No.1
88578	88578-0K211	Packing, Cooling Pipe, No.3
88578	88578-0K730	Packing, Cooling Pipe, No.4
88578	88578-0K740	Packing, Cooler, No.1
88704	88704-0KC90	Hose Sub-Assy, Suction
88710	88710-0KE10	Tube Assy, Air Conditioner
88711	88711-0K101	Hose, Cooler Refrigerant Discharge, No.1
90105	90105-T0007	BOLT FLANGE
90105	90105-T0014	BOLT FLANGE
90105	90105-T0066	BOLT FLANGE
90105	90105-T0085	BOLT FLANGE
90105	90105-T0241	BOLTFLANGE
91511	91511-G0630	BOLT FLANGE
887180	88718-0K020	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0K060	Pipe, Cooler Refrigerant Suction, No.2
887181	88718-1A430	Clamp(For Cooler Refrigerant Pipe), No.1
8889952050	88899-52050	Cover, Evaporator
9009120633	90091-20633	New Genuine Part
9017906264	90179-06264	NUT, WWASHER

OEM	Part name	Category
88460-0K150	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88463-0K460	Bracket, Cooler Condenser, No.2	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88463-0K470	Bracket, Cooler Condenser, No.3	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88467-12180	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88469-52010	Collar, Condenser Bracket, No.1	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88474-17010	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88578-0K211	Packing, Cooling Pipe, No.3	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88578-0K220	Packing, Cooler Pipe, No.1	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88578-0K230	Packing, Cooler Pipe, No.1	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88578-0K730	Packing, Cooling Pipe, No.4	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88578-0K740	Packing, Cooler, No.1	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88704-0KC90	Hose Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88710-0KE10	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88711-0K101	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88718-0K020	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88718-0K060	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88718-1A430	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
88899-52050	Cover, Evaporator	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
90091-20633	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
90105-T0007	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
90105-T0014	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
90105-T0066	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
90105-T0085	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
90105-T0241	BOLTFLANGE	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
90179-06264	NUT, WWASHER	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
91511-G0630	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([10.2011 - ] FRONT(DUAL AIR CONDITIONER) (1110- )SUVW..DCR..CO,LA ; (1204- )IART)
