KUN50

Toyota FORTUNER · 2005 · 4,740 parts · 231 categories

4,740 items

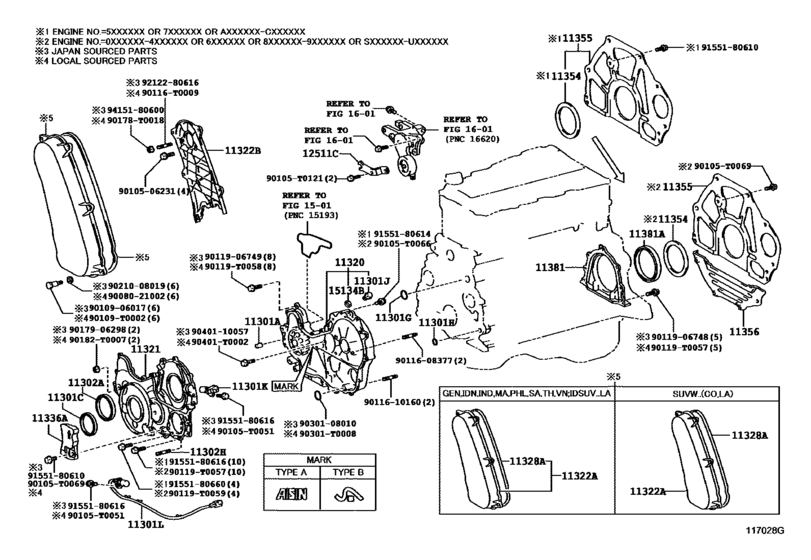

Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV) 71

#	OEM	Part name
11301	90250-08120	Pin, Straight, No.1
11301	90250-T0007	Pin, Straight(For Timing Gear Case)
11301	90311-50051	Seal, Oil(For Crankshaft Front)
11301	90311-T0054	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90301-22007	Ring, O(For Timing Gear Case, Upper)
11301	90301-T0010	Ring, O(For Timing Gear Case, Upper)
11301	90301-09018	Ring, O(For Timing Gear Case, Lower)
11301	90301-T0012	Ring, O(For Timing Gear Case, Lower)
11301	90341-18015	Plug, W/head Straight Screw(For Timing Gear Case)
11301	90919-05025	Sensor, Crank Position
11301	90919-05050	Sensor, Crank Position No.2
11301	90080-31096	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-50017	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90080-31098	Seal, Type T Oil(For Injection Pump) - OIL(FOR TIMING CHAIN OR BELT COVER)
11302	90311-65003	Seal, Type T Oil(For Injection Pump)
11302	90116-08377	Bolt, Stud(For Timing Gear Cover)
11320	11320-0L030	Case Assy, Timing Gear
11320	11320-30060	Case Assy, Timing Gear
11321	11321-0L010	Case, Timing Gear
11321	11321-30020	Case, Timing Gear
11322	11332-0L010	Cover, Timing Belt, No.1
11322	11332-30020	Cover, Timing Belt, No.1
11322	11322-0L010	Cover, Timing Belt, No.2
11322	11322-30010	Cover, Timing Belt, No.2
11328	11328-30020	Gasket, Timing Belt Cover, No.1
11336	11336-0L010	Insulator, Timing Gear Cover
11336	11336-30010	Insulator, Timing Gear Cover
11354	11354-0L020	Seal, Flywheel Housing Dust
11354	11354-30010	Seal, Flywheel Housing Dust
11355	11355-0L010	Plate, Rear End
11355	11355-67011	Plate, Rear End
11356	11356-0L011	Plate, Rear End, No.2
11356	11356-0L010	Plate, Rear End, No.2
11381	11381-0K010	Retainer, Engine Rear Oil Seal
11381	11381-67020	Retainer, Engine Rear Oil Seal
11381	90311-95015	Seal, Engine Rear Oil
11381	90311-T0046	Seal, Engine Rear Oil
11381	90080-31100	Seal, Engine Rear Oil
11381	90311-95008	Seal, Engine Rear Oil
12511	12511-0L010	Bracket, Alternator
15134	15134-0L030	Gasket, Oil Pump Relief Valve
15134	15134-67010	Gasket, Oil Pump Relief Valve
90105	90105-T0051	New Genuine Part
90105	90105-T0066	BOLT FLANGE
90105	90105-T0069	New Genuine Part
90105	90105-T0121	New Genuine Part
90109	90109-T0002	BOLT
90116	90116-T0009	New Genuine Part
90119	90119-T0057	New Genuine Part
90119	90119-T0058	New Genuine Part
90119	90119-T0059	New Genuine Part
90178	90178-T0018	NUT FLANGE
90182	90182-T0007	New Genuine Part
90301	90301-T0008	RING O
90401	90401-T0002	New Genuine Part
9008021002	90080-21002	WASHER
9010506231	90105-06231	BOLT WASHER BASED
9010906017	90109-06017	BOLT
9011610160	90116-10160	Bolt,stud(For Timing Gear Case)
9011906748	90119-06748	BOLT WWASHER
9011906749	90119-06749	BOLT WWASHER
9017906298	90179-06298	NUT
9021008019	90210-08019	WASHER
9030108010	90301-08010	RING
9040110057	90401-10057	BOLT UNION
9155180610	91551-80610	BOLT FLANGE
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9155180616	91551-80616	BOLT FLANGE
9155180660	91551-80660	BOLT FLANGE
9212280616	92122-80616	Bolt, Stud(For Head To Cylinder Head Cover)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
11320-0L030	Case Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11320-30060	Case Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11321-0L010	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11321-30020	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11322-0L010	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11322-30010	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11328-30020	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11332-0L010	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11332-30020	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11336-0L010	Insulator, Timing Gear Cover	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11336-30010	Insulator, Timing Gear Cover	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11354-0L020	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11354-30010	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11355-0L010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11355-67011	Plate, Rear End	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11356-0L010	Plate, Rear End, No.2	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11356-0L011	Plate, Rear End, No.2	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11381-0K010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
11381-67020	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
12511-0L010	Bracket, Alternator	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
15134-0L030	Gasket, Oil Pump Relief Valve	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
15134-67010	Gasket, Oil Pump Relief Valve	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90080-21002	WASHER	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90080-31096	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90080-31098	Seal, Type T Oil(For Injection Pump) - OIL(FOR TIMING CHAIN OR BELT COVER)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90080-31100	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90105-06231	BOLT WASHER BASED	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90105-T0051	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90105-T0066	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90105-T0069	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90105-T0121	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90109-06017	BOLT	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90109-T0002	BOLT	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90116-08377	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90116-10160	Bolt,stud(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90116-T0009	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90119-06748	BOLT WWASHER	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90119-06749	BOLT WWASHER	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90119-T0057	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90119-T0058	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90119-T0059	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90178-T0018	NUT FLANGE	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90179-06298	NUT	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90182-T0007	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90210-08019	WASHER	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90250-08120	Pin, Straight, No.1	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90250-T0007	Pin, Straight(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90301-08010	RING	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90301-09018	Ring, O(For Timing Gear Case, Lower)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90301-22007	Ring, O(For Timing Gear Case, Upper)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90301-T0008	RING O	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90301-T0010	Ring, O(For Timing Gear Case, Upper)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90301-T0012	Ring, O(For Timing Gear Case, Lower)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90311-50017	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90311-50051	Seal, Oil(For Crankshaft Front)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90311-65003	Seal, Type T Oil(For Injection Pump)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90311-95008	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90311-95015	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90311-T0046	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90311-T0054	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90341-18015	Plug, W/head Straight Screw(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90401-10057	BOLT UNION	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90401-T0002	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90919-05025	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
90919-05050	Sensor, Crank Position No.2	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
91551-80610	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
91551-80616	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
91551-80660	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
92122-80616	Bolt, Stud(For Head To Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1KDFTV,2KDFTV)
