| 11492-0L010 |
Plate, Seal, No.1 |

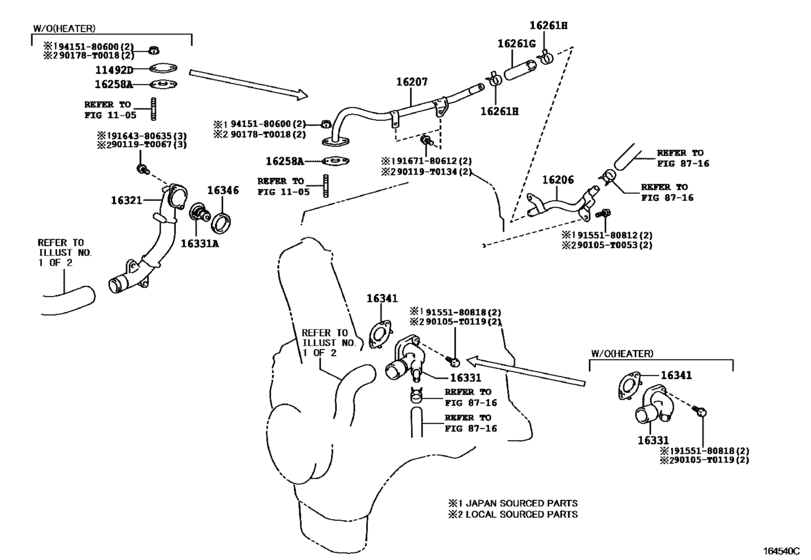

Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 11492-30010 |
Plate, Seal, No.1 |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16258-0L010 |
Gasket(For Heater Return) |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16258-67010 |
Gasket(For Heater Return) |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16321-0L010 |
Inlet, Water |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16321-30040 |
Inlet, Water |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16331-0L030 |
Outlet, Water |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16331-30100 |
Outlet, Water |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16341-0L010 |
Gasket, Water Outlet |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16341-30020 |
Gasket, Water Outlet |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16346-0K010 |
Gasket, Thermostat |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16346-30010 |
Gasket, Thermostat |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 16346-67010 |
Gasket, Thermostat |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 90105-T0053 |
New Genuine Part |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 90105-T0119 |
BOLT FLANGE |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 90119-T0067 |
New Genuine Part |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 90119-T0134 |
BOLT WWASHER |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 90178-T0018 |
NUT FLANGE |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 90916-03118 |
Thermostat - *WAX 82-95C |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 91551-80812 |
BOLT FLANGE |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 91551-80818 |
Bolt, Union(For Clutch Master Cylinder) |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 91643-80635 |
New Genuine Part |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 91671-80612 |
Bolt |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Radiator & Water Outlet ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) |
