| 16261-0L010 |
Hose, Water By-Pass |

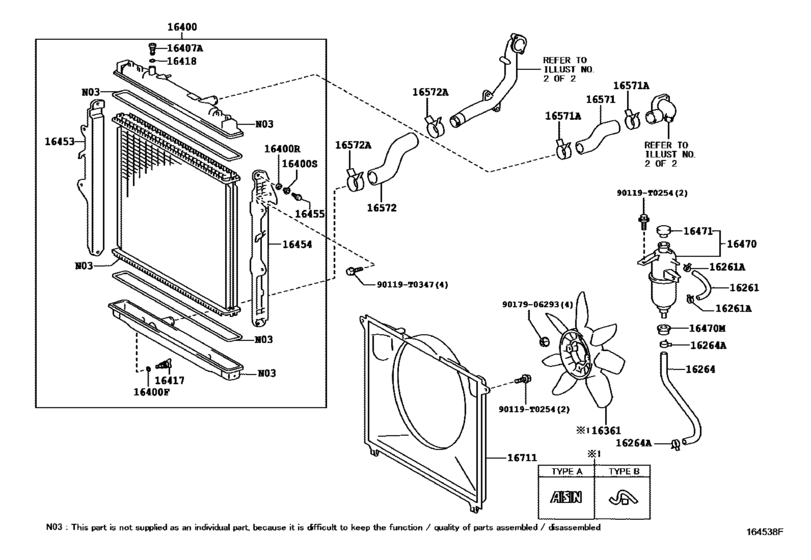

Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16261-0L020 |
Hose, Water By-Pass |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16264-0L010 |
Hose, Water By-Pass, No.2 |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16264-0L020 |
Hose, Water By-Pass, No.2 |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16361-0L020 |
Fan |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16361-67020 |
Fan |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16400-0L150 |
Radiator Assy |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16400-0L270 |
Radiator Assy |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16401-30011 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16401-30012 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16401-30013 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16407-67240 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16417-0C180 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16417-21280 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16444-75180 |
Bushing(For Radiator) |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16445-0C180 |
Collar(For Radiator) |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16453-0L140 |
Plate, Radiator Side |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16453-0L260 |
Plate, Radiator Side |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16454-0L140 |
Plate, Radiator Side |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16454-0L260 |
Plate, Radiator Side |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16470-0L011 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16470-0L012 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16470-0L013 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16475-28140 |
Cap Sub-Assy, Radiator Reserve Tank |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16492-21050 |
Ring, O(For Oil Cooler Drain Cock) |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16571-0L030 |
Hose, Radiator, Inlet |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16571-0L040 |
Hose, Radiator, Inlet |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16571-0L050 |
Hose, Radiator, Inlet |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16571-0L090 |
Hose, Radiator, Inlet |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16572-0L030 |
Hose, Radiator, Outlet |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16572-0L040 |
Hose, Radiator, Outlet |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16572-0L050 |
Hose, Radiator, Outlet |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16572-0L090 |
Hose, Radiator, Outlet |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16711-0L040 |
Shroud, Fan |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 16711-0L060 |
Shroud, Fan |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90080-11347 |
New Genuine Part |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90119-T0254 |
New Genuine Part |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90119-T0347 |
BOLT WWASHER |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90179-06293 |
NUT |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90466-T0012 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90466-T0015 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90466-T0024 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90466-T0030 |
Clamp Or Clip(For Water By-Pass Hose No.2) |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90466-T0031 |
Clamp Or Clip(For Water By-Pass Hose No.2) |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90466-T0033 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90466-T0046 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 90480-T0004 |
Grommet |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
| 91651-B0820 |
Bolt, Radiator Side Support Plate |
Radiator & Water Outlet ([07.2011 - ] (1107- )1KDFTV,2KDFTV) |
