KUN50

Toyota FORTUNER · 2005 · 4,740 parts · 231 categories

4,740 items

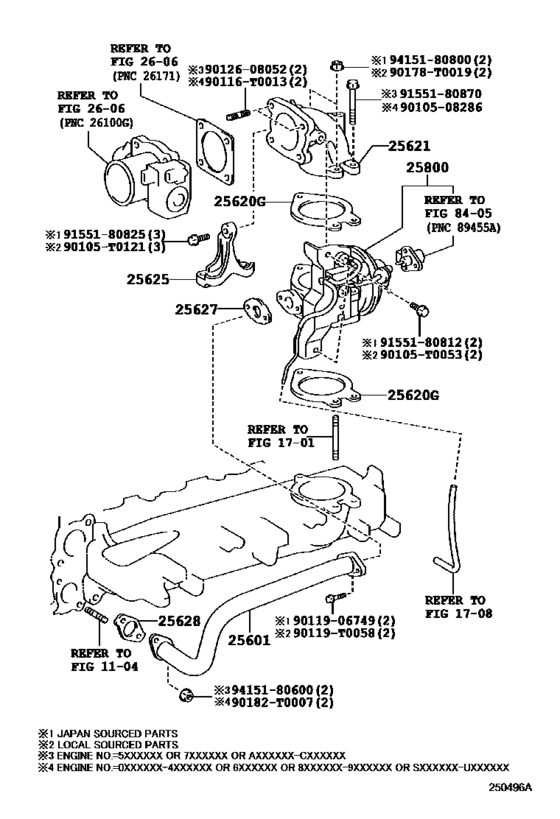

Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN) 36

#	OEM	Part name
25601	25601-0L010	Pipe Sub-Assy, Egr, No.1
25601	25601-30070	Pipe Sub-Assy, Egr, No.1
25620	26171-0L010	Gasket, Intake Air Connector
25620	26171-0L030	Gasket, Diesel Throttle
25620	26171-30030	Gasket, Intake Air Connector
25620	26171-30050	Gasket, Diesel Throttle - INTAKE AIR CONNECTOR
25621	17861-0L010	Connector, Intake Air(For Gasket)
25621	17861-0L030	Connector, Intake Air(For Gasket)
25621	17861-30070	Connector, Intake Air(For Gasket)
25621	17861-30090	Connector, Intake Air(For Gasket)
25625	26127-0L010	Bracket, Intake Air Connector, No.2
25625	26127-0L020	Bracket, Egr Valve
25625	26127-30020	Bracket, Intake Air Connector, No.2
25625	26127-30030	Bracket, Egr Valve
25627	25627-0L010	Gasket, Egr Valve
25627	25627-30030	Gasket, Egr Valve
25627	25627-30060	Gasket, Egr Valve
25628	25628-0L010	Gasket, Egr Inlet
25628	25628-30020	Gasket, Egr Inlet
25800	25800-0L020	Valve Assy, Electric Egr Control
25800	25800-0L080	Valve Assy, Electric Egr Control
25800	25800-30120	Valve Assy, Electric Egr Control
90105	90105-T0053	New Genuine Part
90105	90105-T0121	New Genuine Part
90116	90116-T0013	New Genuine Part
90119	90119-T0058	New Genuine Part
90178	90178-T0019	Nut (For Connecting Rod Swivel)
90182	90182-T0007	New Genuine Part
9010508286	90105-08286	New Genuine Part
9011906749	90119-06749	BOLT WWASHER
9012608052	90126-08052	Bolt, Stud(For Oil Pan)
9155180812	91551-80812	BOLT FLANGE
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9155180870	91551-80870	Bolt(For Cylinder Head Cover)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
17861-0L010	Connector, Intake Air(For Gasket)	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
17861-0L030	Connector, Intake Air(For Gasket)	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
17861-30070	Connector, Intake Air(For Gasket)	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
17861-30090	Connector, Intake Air(For Gasket)	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
25601-0L010	Pipe Sub-Assy, Egr, No.1	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
25601-30070	Pipe Sub-Assy, Egr, No.1	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
25627-0L010	Gasket, Egr Valve	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
25627-30030	Gasket, Egr Valve	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
25627-30060	Gasket, Egr Valve	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
25628-0L010	Gasket, Egr Inlet	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
25628-30020	Gasket, Egr Inlet	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
25800-0L020	Valve Assy, Electric Egr Control	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
25800-0L080	Valve Assy, Electric Egr Control	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
25800-30120	Valve Assy, Electric Egr Control	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
26127-0L010	Bracket, Intake Air Connector, No.2	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
26127-0L020	Bracket, Egr Valve	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
26127-30020	Bracket, Intake Air Connector, No.2	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
26127-30030	Bracket, Egr Valve	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
26171-0L010	Gasket, Intake Air Connector	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
26171-0L030	Gasket, Diesel Throttle	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
26171-30030	Gasket, Intake Air Connector	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
26171-30050	Gasket, Diesel Throttle - INTAKE AIR CONNECTOR	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
90105-08286	New Genuine Part	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
90105-T0053	New Genuine Part	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
90105-T0121	New Genuine Part	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
90116-T0013	New Genuine Part	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
90119-06749	BOLT WWASHER	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
90119-T0058	New Genuine Part	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
90126-08052	Bolt, Stud(For Oil Pan)	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
90178-T0019	Nut (For Connecting Rod Swivel)	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
90182-T0007	New Genuine Part	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
91551-80812	BOLT FLANGE	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
91551-80825	Bolt(For Cylinder Head Set Sub)	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
91551-80870	Bolt(For Cylinder Head Cover)	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
94151-80800	Nut (For Transmission Control Cable)	Exhaust Gas Recirculation System ([09.2011 - 10.2012] (1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2 KDFTV..KUN50 ; (1208- )2KDFTV..K UN60..GEN)
