KUN50

Toyota FORTUNER · 2005 · 4,740 parts · 231 categories
KUN50 ×

← Back to categories

4,740 items

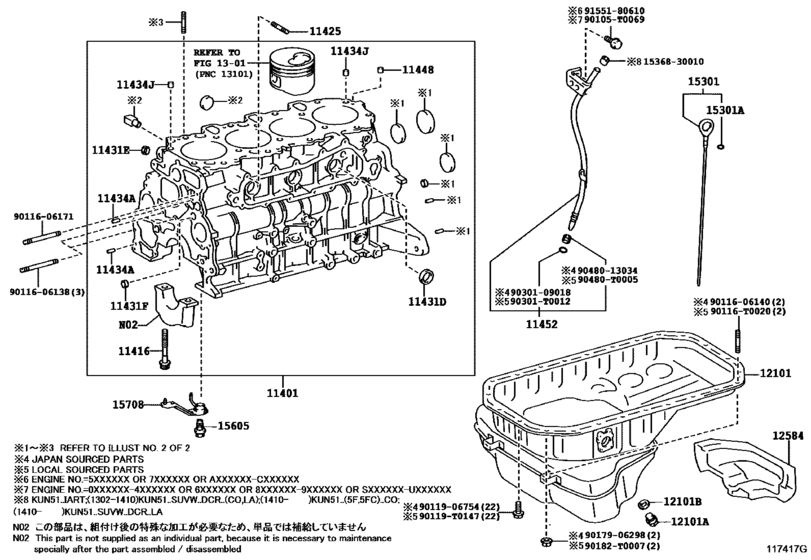

Cylinder Block ([07.2011 - ] (1107- )1KDFTV,2KDFTV) 66
#OEMPart name
11401 11401-09770 Block Sub-Assy, Cylinder
11401 11401-80780 Block Sub-Assy, Cylinder
11401 11401-09492 Block Sub-Assy, Cylinder
11415 90334-14002 Plug, Water Drain Cock(For Cylinder Block)
11415 90339-T0002 Plug, Water Drain Cock(For Cylinder Block)
11416 90910-02113 Bolt(For Crankshaft Bearing Cap Set)
11416 90910-T2003 Bolt(For Crankshaft Bearing Cap Set)
11416 90910-T2009 Bolt(For Crankshaft Bearing Cap Set)
11425 90116-06171 Bolt, Stud(For Oil Filter)
11425 90116-T0012 Bolt, Stud(For Oil Filter)
11431 90331-35004 Plug, Tight, No.4(For Cylinder Block)
11431 90331-T0002 Plug, Tight, No.4(For Cylinder Block)
11431 90331-T0003 Plug, Tight, No.4 - TIGHT, NO.5(FOR CYLINDER BLOCK)
11431 96411-62000 Plug, Tight
11431 90331-T0006 Plug, Tight, No.6(For Cylinder Block)
11431 96411-61800 Tight Plug(For Oil Seal Retainer)
11431 90331-T0008 Plug, Tight, No.1(For Cylinder Block)
11431 96411-64500 Plug, Tight
11431 90331-T0005 Plug, Tight, No.5 - TIGHT, NO.2(FOR CYLINDER BLOCK)
11431 96411-63500 Plug, Tight
11431 90331-T0007 Plug, Tight, No.3(For Cylinder Block)
11431 96411-64000 Plug, Tight, No.2
11434 90250-08120 Pin, Straight, No.1
11434 90250-T0007 Pin, Straight(For Timing Gear Case)
11434 90253-15016 Pin, Straight(For End Plate)
11434 90253-T0002 Pin, Ring (For Cylinder Head Set)
11434 90250-06068 Pin, Straight
11434 90250-T0012 Pin, Straight(For Engine Rear Oil Seal)
11434 90250-10192 Pin, Straight(For Timing Gear Cover Set)
11434 90250-T0008 Pin, Straight(For End Plate)
11448 11448-0L010 Orifice, Cylinder Block Oil
11448 11448-67010 Orifice, Cylinder Block Oil
11452 11452-0L010 Guide, Oil Level Gage
11452 11452-30070 Guide, Oil Level Gage
12101 12101-0L030 Pan Sub-Assy, Oil
12101 12101-0L031 Pan Sub-Assy, Oil
12101 12101-30100 Pan Sub-Assy, Oil
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90341-T0004 Plug(For Oil Pan Drain)
12101 90080-43030 Gasket(For Oil Pan Drain Plug)
12101 90430-12031 Gasket (For Oil Pan Drain Plug)
12584 12584-0L010 Insulator, Cylinder Brock, No.4
15301 15301-0L030 Gage Sub-Assy, Oil Level
15301 15301-30070 Gage Sub-Assy, Oil Level
15301 90301-T0018 Ring, O(For Oil Level Gage)
15301 96741-19005 O-Ring (For Oil Level Gage)
15605 15605-0L010 Valve Sub-Assy, Oil Check
15605 15605-17030 Valve Sub-Assy, Oil Check
15708 15708-0L011 Nozzle Sub-Assy, Oil, No.1
15708 15708-30011 Nozzle Sub-Assy, Oil, No.1
90105 90105-T0069 New Genuine Part
90116 90116-T0020 Bolt, Stud(For Vacuum Transmitting Pipe) - STUD(FOR OIL STRAINER)
90116 90116-T0008 New Genuine Part
90119 90119-T0147 BOLT WWASHER
90182 90182-T0007 New Genuine Part
90301 90301-T0012 Ring, O(For Timing Gear Case, Lower)
90480 90480-T0005 New Genuine Part
1536830010 15368-30010 New Genuine Part
9011606138 90116-06138 New Genuine Part
9011606140 90116-06140 Bolt, Stud(For Oil Strainer)
9011906754 90119-06754 BOLT WWASHER
9017906298 90179-06298 NUT
9030109018 90301-09018 Ring, O(For Timing Gear Case, Lower)
9048013034 90480-13034 GROMMET
9155180610 91551-80610 BOLT FLANGE
9212280614 92122-80614 BOLTSTUD
