KUN50

Toyota FORTUNER · 2005 · 4,740 parts · 231 categories

4,740 items

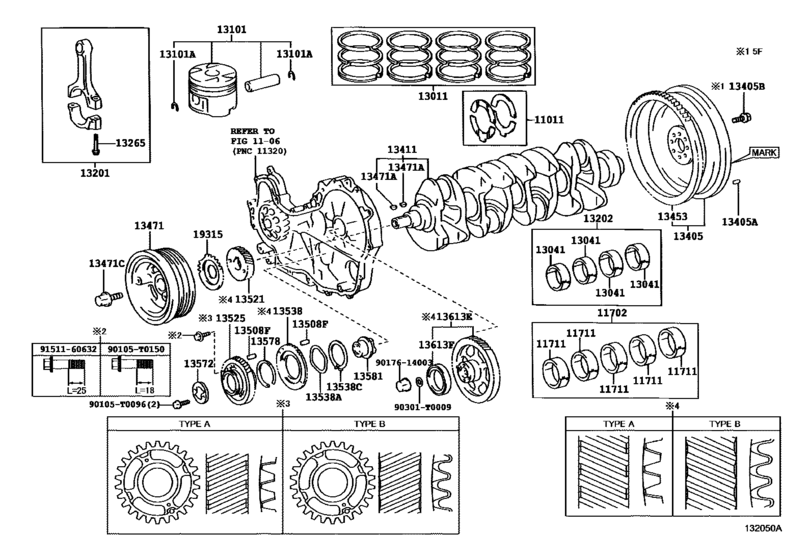

Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F) 103

#	OEM	Part name
11011	11011-0L020	Washer Set, Crankshaft Thrust
11011	11011-30010	Washer Set, Crankshaft Thrust
11011	11012-30010	Washer Set, Crankshaft Thrust
11011	11013-30010	Washer Set, Crankshaft Thrust
11702	11704-30020	Bearing Set, Crankshaft (0.25)
11702	11705-30020	Bearing Set, Crankshaft (0.50)
11711	11701-0L020-02	Bearing, Crankshaft
11711	11701-0L020-03	Bearing, Crankshaft
11711	11701-0L020-04	Bearing, Crankshaft
11711	11701-0L020-05	Bearing, Crankshaft
11711	11701-0L020-06	Bearing, Crankshaft
11711	11701-30020-02	Bearing, Crankshaft
11711	11701-30020-03	Bearing, Crankshaft
11711	11701-30020-04	Bearing, Crankshaft
11711	11701-30020-05	Bearing, Crankshaft
11711	11701-30020-06	Bearing, Crankshaft
13011	13011-0L070	Ring Set, Piston
13011	13011-30120	Ring Set, Piston
13011	13013-30120	Ring Set, Piston
13011	13011-0L020	Ring Set, Piston
13011	13011-30080	Ring Set, Piston
13011	13011-30081	RING SET PISTON
13011	13013-30030	Ring Set, Piston
13011	13013-30031	Ring Set, Piston (0.50)
13011	13013-30080	Ring Set, Piston
13041	13041-0L020-02	Bearing, Connecting Rod
13041	13041-0L020-03	Bearing, Connecting Rod
13041	13041-0L020-04	Bearing, Connecting Rod
13041	13041-0L020-05	Bearing, Connecting Rod
13041	13041-0L020-06	Bearing, Connecting Rod
13041	13041-30020-02	Bearing, Connecting Rod
13041	13041-30020-03	Bearing, Connecting Rod
13041	13041-30020-04	Bearing, Connecting Rod
13041	13041-30020-05	Bearing, Connecting Rod
13041	13041-30020-06	Bearing, Connecting Rod
13101	13101-0L070-01	Piston Sub-Assy, W/pin
13101	13101-0L070-02	Piston Sub-Assy, W/pin
13101	13101-0L070-03	Piston Sub-Assy, W/pin
13101	13101-30140-01	Piston Sub-Assy, W/pin
13101	13101-30140-02	Piston Sub-Assy, W/pin
13101	13101-30140-03	Piston Sub-Assy, W/pin
13101	13103-0L070	Piston Sub-Assy, W/pin
13101	90520-37014	Ring, Hole Snap(For Piston Pin)
13101	13101-0L051-01	Piston Sub-Assy, W/pin
13101	13101-0L051-02	Piston Sub-Assy, W/pin
13101	13101-0L051-03	Piston Sub-Assy, W/pin
13101	13101-30081-01	Piston Sub-Assy, W/pin
13101	13101-30081-02	Piston Sub-Assy, W/pin
13101	13101-30081-03	Piston Sub-Assy, W/pin
13101	13103-0L051	Piston Sub-Assy, W/pin
13101	13103-30081	Piston Sub-Assy, W/pin
13201	13201-0L011	Rod Sub-Assy, Connecting
13201	13201-30041	Rod Sub-Assy, Connecting
13202	13204-30020	Bearing Set, Connecting Rod (0.25)
13202	13205-30020	Bearing Set, Connecting Rod (0.50)
13265	13265-67021	Bolt, Connecting Rod
13405	13405-0L030	Flywheel Sub-Assy
13405	13405-67030	Flywheel Sub-Assy
13405	90250-05121	Pin, Straight, No.3(For Camshaft Knock)
13405	90250-T0013	Pin, Straight(For Flywheel)
13411	13401-0L100	Crankshaft
13411	13401-30060	Crankshaft
13453	13453-0L010	Gear, Flywheel Ring
13453	13453-67030	Gear, Flywheel Ring
13471	13408-0L020	Pulley Sub-Assy, Crankshaft
13471	13408-30011	Pulley, Crankshaft
13471	90280-T0002	Key, Crankshaft(For Crankshaft Pulley Set)
13471	95161-30516	Key(For Oil Pump Drive Spline)
13471	90119-18003	Bolt(For Crankshaft Pulley Set)
13471	90119-T0218	Bolt(For Crankshaft Pulley Set)
13508	90250-05027	Pin, Straight
13508	90250-T0011	Pin, Straight - STRAIGHT(FOR IDLE GEAR)
13521	13521-0L010	Gear Or Sprocket, Crankshaft Timing
13521	13521-67020	Gear Or Sprocket, Crankshaft Timing
13521	13521-0L020	Gear Or Sprocket, Crankshaft Timing
13525	13508-0L010	Gear, Idle, No.1
13525	13508-30011	Gear, Idle, No.1
13525	13508-0L030	Gear, Idle, No.1
13538	13538-0L010	Gear, Idle Sub, No.2
13538	13538-67900	Gear, Idle Sub, No.2
13538	90206-69001	Washer, Wave
13538	90206-T0001	Washer, Wave
13538	90520-58002	Ring, Shaft Snap
13538	90520-T0032	Ring, Shaft Snap
13538	13538-0L020	Gear, Idle Sub, No.2
13572	13572-0L010	Plate, Idle Gear Thrust
13572	13572-67041	Plate, Idle Gear Thrust
13578	13578-0L010	Spring, Idle Gear
13578	13578-67010	Spring, Idle Gear
13581	13581-0L010	Shaft, Idle Gear, No.1
13581	13581-67041	Shaft, Idle Gear, No.1
13613	13603-0L010	Gear, Injection
13613	13603-30020	Gear, Injection
13613	90363-67001	Bearing, Radial Ball
13613	90363-T0013	Bearing, Radial Ball
13613	13603-0L020	Gear, Injection
19315	19315-0L010	Plate, Crank Angle Sensor, No.1
19315	19315-30010	Plate, Crank Angle Sensor, No.1
90105	90105-T0096	BOLT WASHER BASED H
90105	90105-T0150	Bolt, Hexagon
90301	90301-T0009	RING O
9017614003	90176-14003	NUT CAP
9151160632	91511-60632	Bolt

OEM	Part name	Category
11011-0L020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11011-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11012-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11013-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11701-0L020-02	Bearing, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11701-0L020-03	Bearing, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11701-0L020-04	Bearing, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11701-0L020-05	Bearing, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11701-0L020-06	Bearing, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11701-30020-02	Bearing, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11701-30020-03	Bearing, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11701-30020-04	Bearing, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11701-30020-05	Bearing, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11701-30020-06	Bearing, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11704-30020	Bearing Set, Crankshaft (0.25)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
11705-30020	Bearing Set, Crankshaft (0.50)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13011-0L020	Ring Set, Piston	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13011-0L070	Ring Set, Piston	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13011-30080	Ring Set, Piston	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13011-30081	RING SET PISTON	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13011-30120	Ring Set, Piston	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13013-30030	Ring Set, Piston	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13013-30031	Ring Set, Piston (0.50)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13013-30080	Ring Set, Piston	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13013-30120	Ring Set, Piston	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13041-0L020-02	Bearing, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13041-0L020-03	Bearing, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13041-0L020-04	Bearing, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13041-0L020-05	Bearing, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13041-0L020-06	Bearing, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13041-30020-02	Bearing, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13041-30020-03	Bearing, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13041-30020-04	Bearing, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13041-30020-05	Bearing, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13041-30020-06	Bearing, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-0L051-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-0L051-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-0L051-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-0L070-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-0L070-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-0L070-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-30081-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-30081-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-30081-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-30140-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-30140-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13101-30140-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13103-0L051	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13103-0L070	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13103-30081	Piston Sub-Assy, W/pin	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13201-0L011	Rod Sub-Assy, Connecting	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13201-30041	Rod Sub-Assy, Connecting	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13204-30020	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13205-30020	Bearing Set, Connecting Rod (0.50)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13265-67021	Bolt, Connecting Rod	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13401-0L100	Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13401-30060	Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13405-0L030	Flywheel Sub-Assy	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13405-67030	Flywheel Sub-Assy	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13408-0L020	Pulley Sub-Assy, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13408-30011	Pulley, Crankshaft	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13453-0L010	Gear, Flywheel Ring	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13453-67030	Gear, Flywheel Ring	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13508-0L010	Gear, Idle, No.1	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13508-0L030	Gear, Idle, No.1	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13508-30011	Gear, Idle, No.1	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13521-0L010	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13521-0L020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13521-67020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13538-0L010	Gear, Idle Sub, No.2	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13538-0L020	Gear, Idle Sub, No.2	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13538-67900	Gear, Idle Sub, No.2	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13572-0L010	Plate, Idle Gear Thrust	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13572-67041	Plate, Idle Gear Thrust	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13578-0L010	Spring, Idle Gear	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13578-67010	Spring, Idle Gear	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13581-0L010	Shaft, Idle Gear, No.1	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13581-67041	Shaft, Idle Gear, No.1	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13603-0L010	Gear, Injection	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13603-0L020	Gear, Injection	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
13603-30020	Gear, Injection	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
19315-0L010	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
19315-30010	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90105-T0096	BOLT WASHER BASED H	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90105-T0150	Bolt, Hexagon	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90119-18003	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90119-T0218	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90176-14003	NUT CAP	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90206-69001	Washer, Wave	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90206-T0001	Washer, Wave	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90250-05027	Pin, Straight	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90250-05121	Pin, Straight, No.3(For Camshaft Knock)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90250-T0011	Pin, Straight - STRAIGHT(FOR IDLE GEAR)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90250-T0013	Pin, Straight(For Flywheel)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90280-T0002	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90301-T0009	RING O	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90363-67001	Bearing, Radial Ball	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90363-T0013	Bearing, Radial Ball	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90520-37014	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90520-58002	Ring, Shaft Snap	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
90520-T0032	Ring, Shaft Snap	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
91511-60632	Bolt	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)
95161-30516	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([07.2011 - ] *130 (1107- )2KDFTV..4FC,5F)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 231
Collected: 2026-08-03
